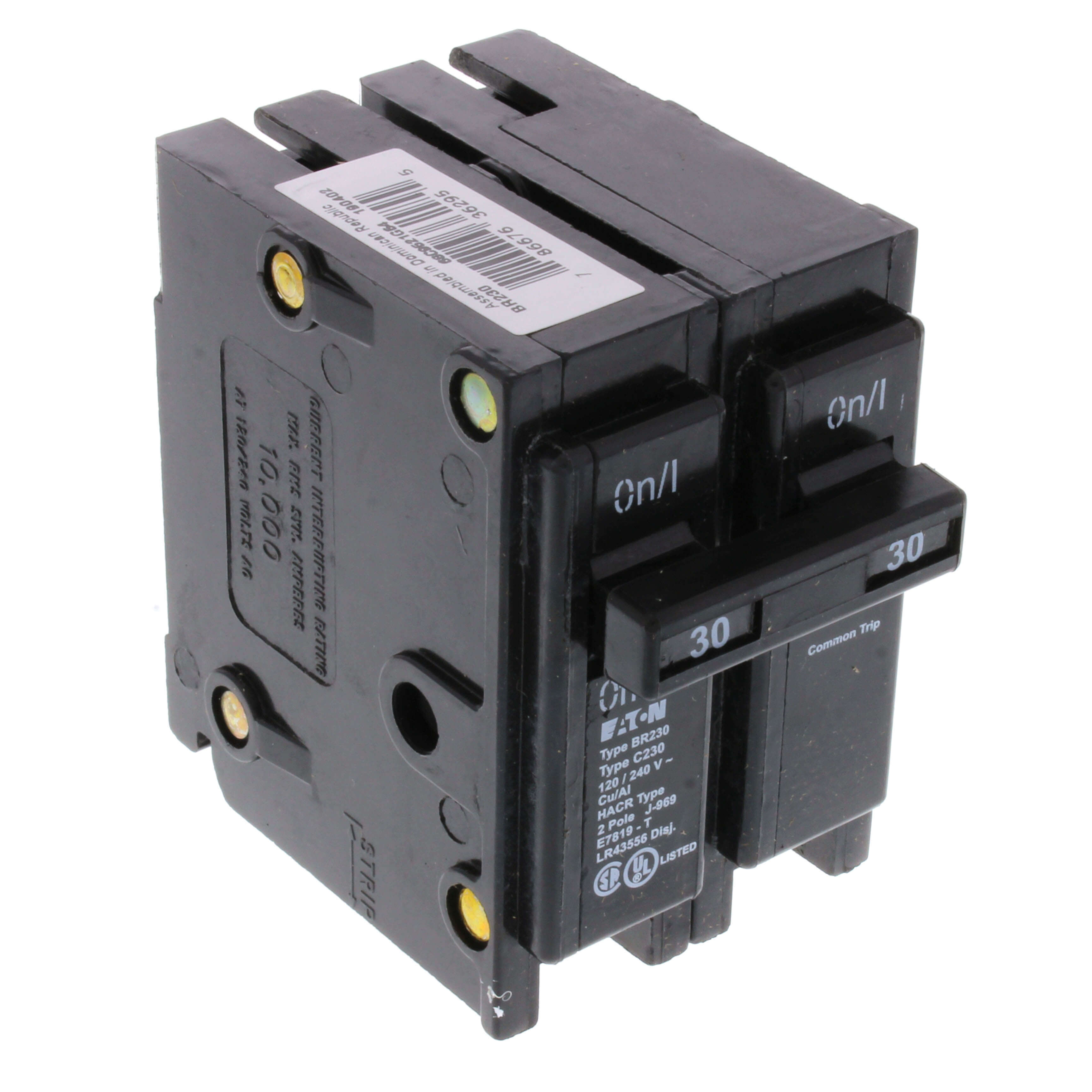

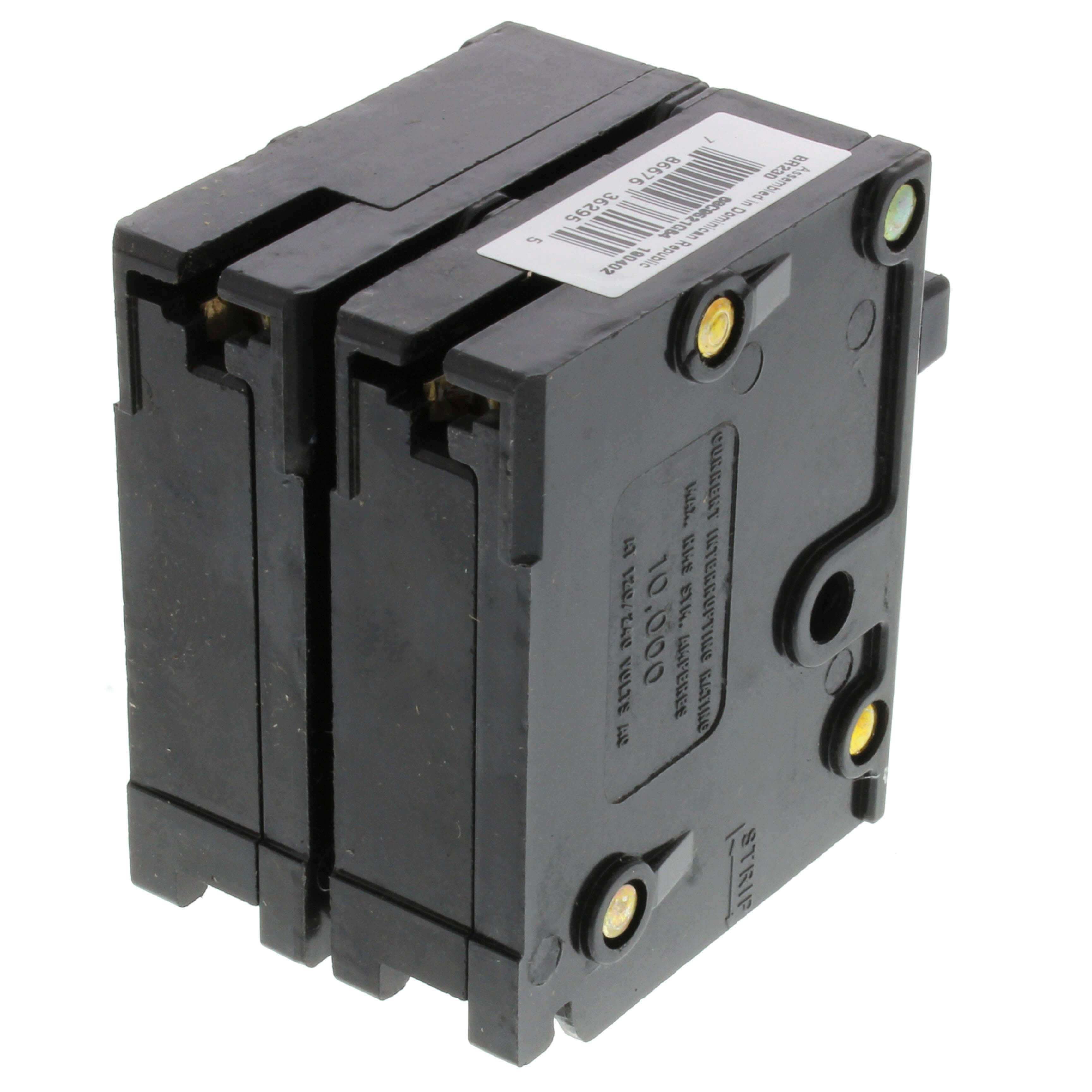

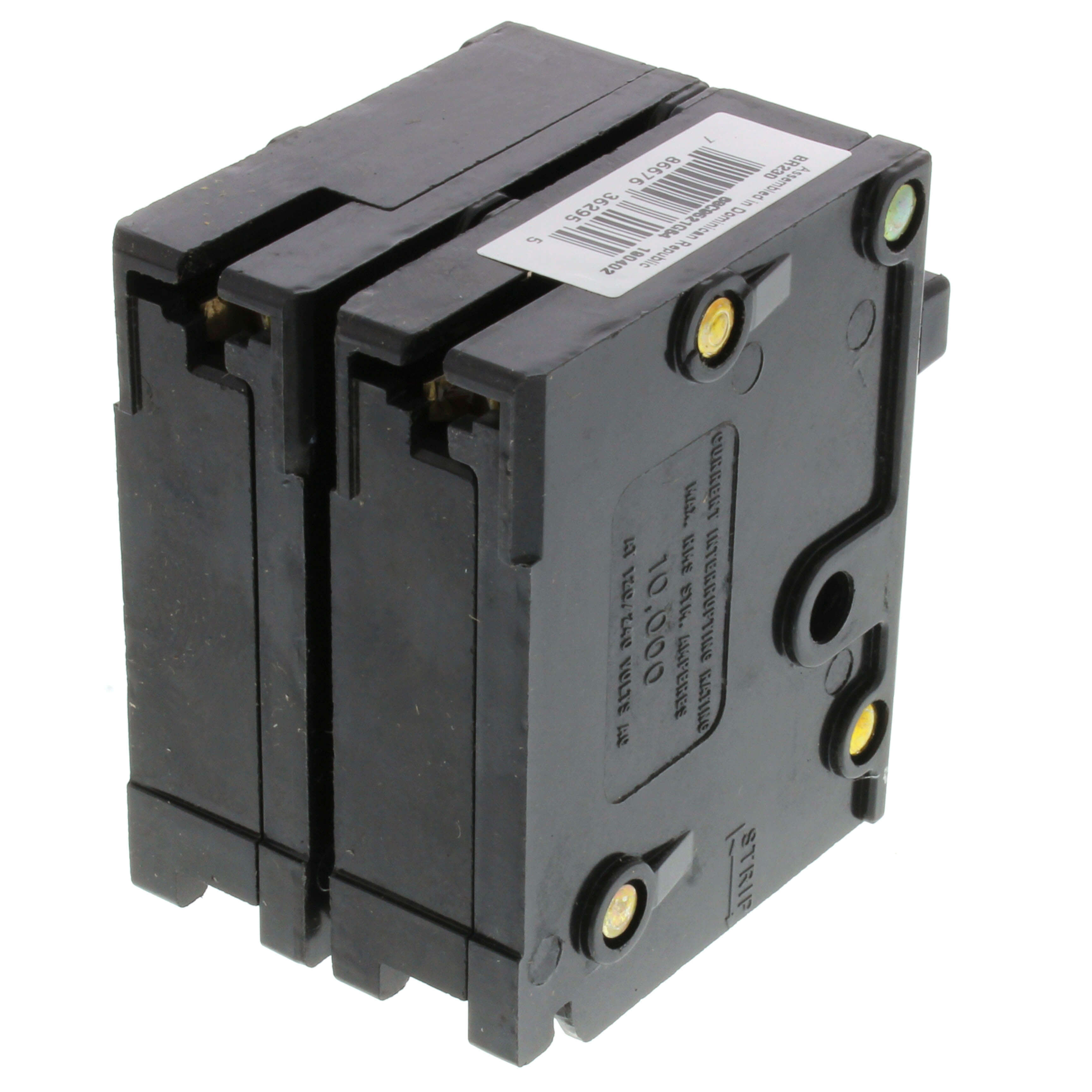

Diversitech BR230 2-Pole Eaton Interchangeable Circuit Breaker 30A 120/240V Replacement 625-GD30H CH230

Product Description

The DiversiTech BR230 is a 2-pole, 30 Amp thermal magnetic circuit breaker designed for Eaton's Type BR load centers. This plug-on unit provides 10 kAIC interrupt protection for 120/240 VAC applications, safeguarding electrical systems from overload and short circuits. It features a common trip mechanism and accommodates 14 to 4 AWG wire, ensuring reliable performance and safety in residential and commercial installations.

• All BR circuit breakers have rejection tab feature.
• Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design.
• Protects wires from overheating (overload) and fault currents (short circuit).

Product Highlights

2-Pole, 30A, 120/240V thermal magnetic circuit breaker with plug-on mounting, common trip, and UL/CSA compliance.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: BR230

Technical Specifications

• Type: BR
• Voltage Rating: 120/240 VAC
• Amperage Rating: 30 A
• Interrupting Rating: 10 kAIC
• Number of Poles: 2
• Trip Type: Thermal Magnetic
• Trip Feature: Common Trip
• Mounting Type: Plug-On
• Terminal Type: Screw Terminal
• Wire Capacity: 14 to 4 AWG
• Suitable For Use With: Eaton's Type BR Load Centers
• Certifications: CSA, UL
