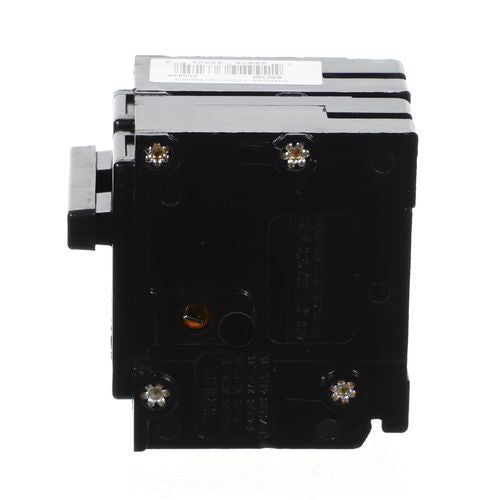

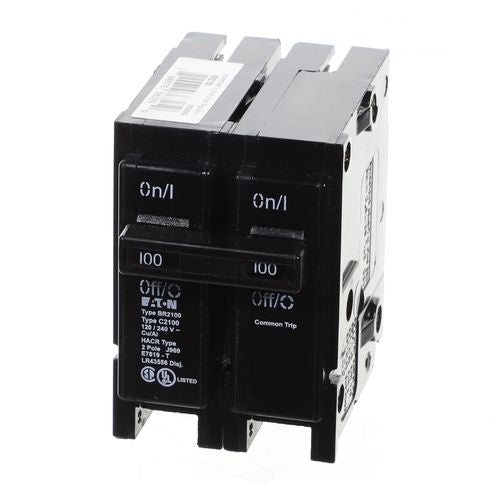

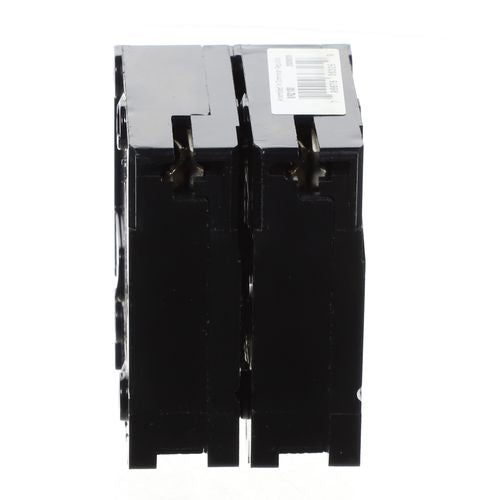

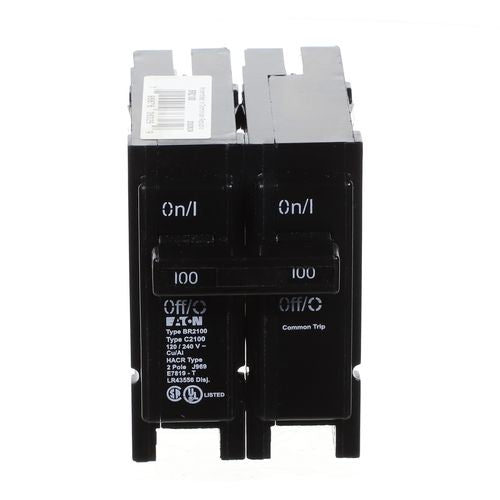

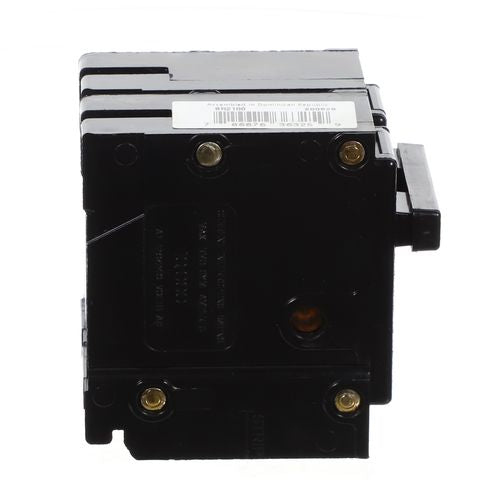

Diversitech BR2100 Eaton BR Thermal Magnetic 100 Amp Two-Pole Circuit Breaker

Product Description

The DiversiTech BR2100 Eaton Circuit Breakers, Type BR, are 1-inch per pole plug-on circuit breakers designed for Eaton’s Type BR Load centers. These two pole, 100 amp circuit breakers are 10 kAIC arc fault circuit interrupters rated for 120VAC or 240VAC applications with a wire capacity of 4 - 1.

• All BR circuit breakers have rejection tab feature.
• Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design.
• UL approved genuine replacement breakers for load centers made by Westinghouse, Challenger and Bryant.

Product Highlights

Protects wires from overheating (overload) and fault currents (short circuit). UL Listed. Designed for both ducted and ductless applications.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: BR2100

Technical Specifications

• Volts: 120/240
• Wire Capacity: 4 - 1
• Product Width: 2 in.
• UL Listed: Yes
• Amps: 100
• Ducted or Ductless: Both Ducted and Ductless
• No. of Poles: 2
