Diversitech BPN-39 BPN (1in x 3in) Black Welded Nipple

Product Description

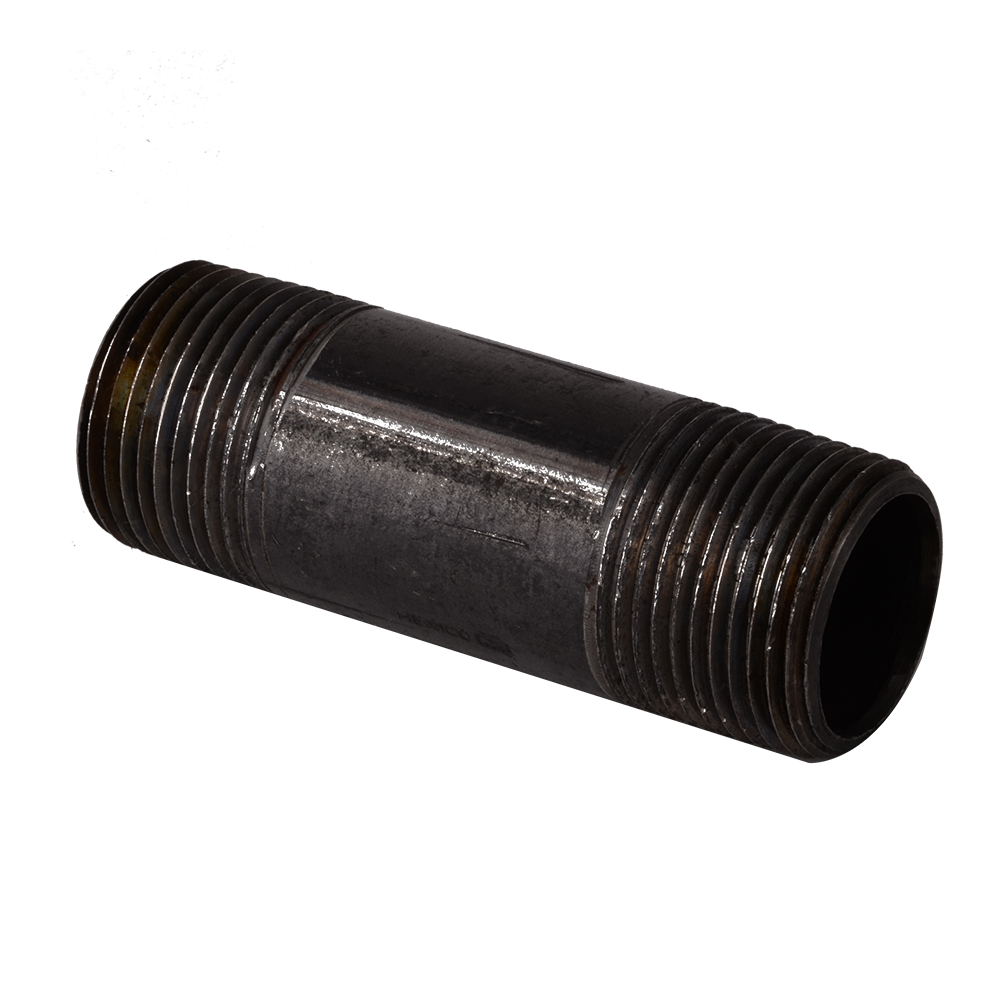

The DiversiTech BPN-39 BPN (1in x 3in) Blk Weld Nip is a black iron fitting used to connect two lengths of pipe. It provides a permanent, leak-proof connection. Constructed from black iron, it offers corrosion resistance and is suitable for industrial plumbing applications.

• Compatible with 1in iron pipe size (IPS) pipes
• Black iron construction for corrosion resistance
• Welded connection for a strong and permanent seal

Product Highlights

This DiversiTech BPN Weld Nip is ideal for use in water and gas lines, compressed air systems, HVAC systems and process piping.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: BPN-39

Technical Specifications

• Max Pressure (PSI): 226
• Size: 1 in. x 3 in.
• Temp. Rating: 400 deg F
• Item Number: BPN-39
• Brand: DiversiTech
• Collection: Black Iron Fittings
• Connection Size 1: 1 in
• Connection Size 2: 1 in
• Connection Type 1: Male Threaded
• Connection Type 2: Male Threaded
• Connection Type: MPT|MPT
• Depth: 1.13 in
• Fitting Type: Nipple
• Height: 3 in
• Length: 3 in
• Material: Steel
• Pressure Rating: 700 psi
• Schedule Rating: SCH 40/STD
• Width: 1.13 in
• Domestic/Import: Import
• Finish: Black
• Nominal Size: 1 in
