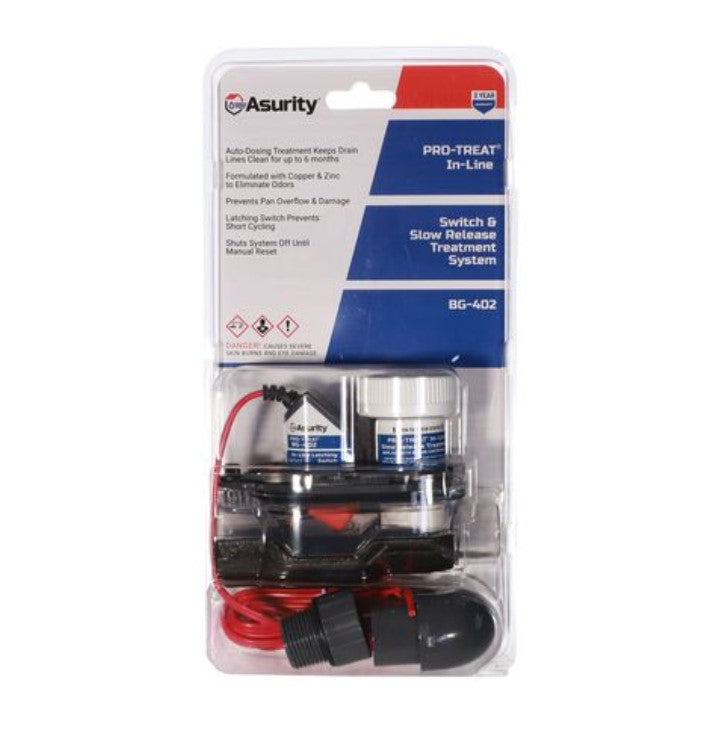

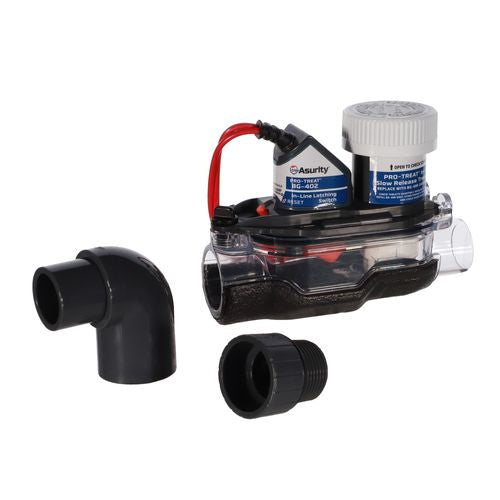

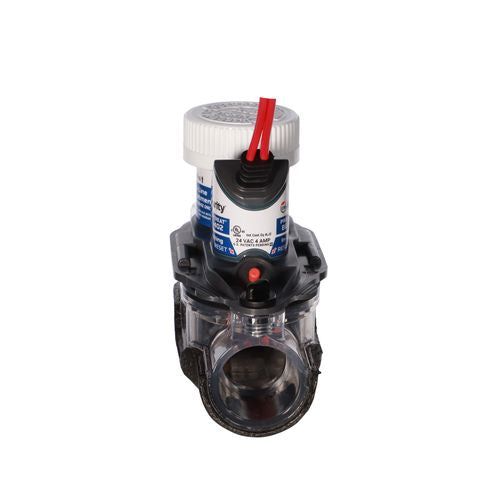

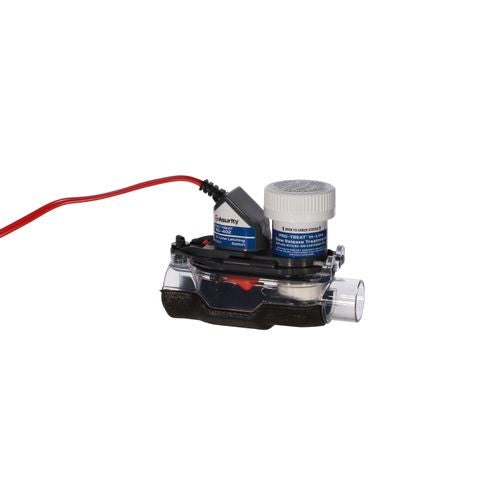

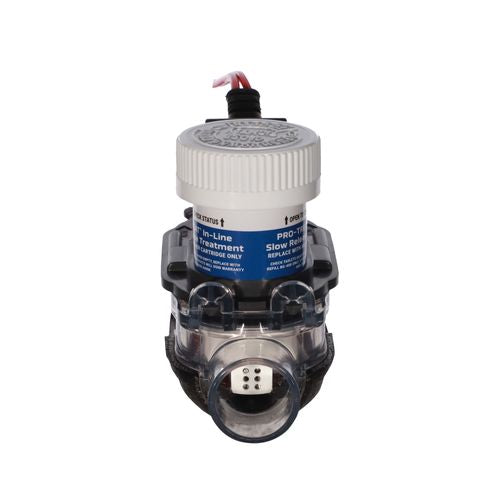

DIVERSITECH BG-402 Latching Float Switch with Inline Treatment Delivery System

Product Description

The DIVERSITECH BG-402 is a latching float switch designed for safeguarding against condensate flooding. This product features an inline treatment delivery system that doses condensate lines with treatment to maintain cleanliness and prevent clogs. As condensate flows through the switch, the treatment tablets automatically release solution to keep drain lines free of buildup for up to six months. If an issue is detected, the switch will immediately deactivate the HVAC system to avert potential flood damage.

• Auto-dosing treatment keeps drain lines clean, preventing buildup
• Safe, non-corrosive and fully soluble condensate line treatment
• Latching mechanism avoids intermittent condensate tripping

Product Highlights

This float switch is essential in HVAC applications to ensure safe drainage. Its dependable design and functionality make it a reliable component in preventing overflow.

Product Information

Standard Information

• Product Type: Pipe-Mounted
• Application: Pipe Mounted Flood Prevention Switch

Technical Specifications

• UL Listed: Yes
• Alert Indicator: Visual
• Electrical Classification: Class 2
• Electrical Connection Type: 2-Wire
• Rated Current (A): 4
• Rated Voltage: 24VAC
• Switch Mode: Normally closed (N/C)
• Test Switch / Button: Yes
• Ducted or Ductless: Ducted
