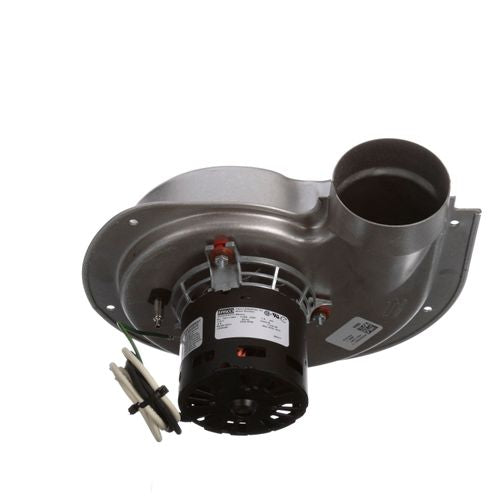

Diversitech A301 Draft Inducer Motor 1/100 Hp 115V

Product Description

The DIVERSITECH A301 is a shaded pole draft inducer motor rated at 1/100 horsepower, designed to move combustion air through residential gas heating systems. Running on 115 volts at 60 Hz, it draws 0.8 amps and spins at 2350 RPM on a single speed. The sleeve bearing and open enclosure keep construction simple and serviceable. Class B insulation provides adequate thermal tolerance for the sustained low-load duty cycle typical of draft inducer service. HVAC technicians install this motor as a direct replacement when the original inducer assembly fails to start or runs intermittently.

This motor fits ducted draft inducer applications in single-phase residential gas furnace systems. It is suited for installations where the original equipment calls for a shaded pole inducer motor at 1/100 HP. The ICP application noted in the product data indicates fitment in systems originally spec'd for that motor profile. Licensed HVAC technicians performing furnace inducer replacements will find this motor appropriate for low-horsepower, single-speed ducted configurations.

Key Features

• Shaded pole motor design for simple, reliable single-speed operation
• Sleeve bearing construction for quiet, low-maintenance performance
• Open enclosure allows airflow for motor cooling during operation
• Class B insulation rating suitable for sustained draft inducer duty
• UL Listed for safety compliance in residential HVAC installations
• Single-phase, 60 Hz operation compatible with standard residential electrical supply

Compatibility

Designed as an OEM-style replacement draft inducer motor for single-phase residential gas furnace systems requiring a 1/100 HP shaded pole motor at 115 volts. The raw product data references ICP application; verify exact mounting dimensions and shaft specifications against the failed unit before installation.

Installation Notes

Installation of this draft inducer motor should be performed by a licensed HVAC technician. Disconnect and lock out power to the furnace and allow the heat exchanger to cool before beginning any service work. Confirm shaft diameter, rotation direction, and mounting configuration match the original motor before completing the swap. Follow applicable local mechanical codes and manufacturer wiring diagrams when reconnecting the motor leads.

Technical Specifications

• Horsepower: 1/100 HP
• Voltage: 115 volts
• Amperage: 0.8 amps
• Frequency: 60 Hz
• RPM: 2350
• Speeds: 1
• Motor Type: Shaded Pole
• Phases: Single
• Bearing Type: Sleeve
• Enclosure: Open
• Insulation Class: B
• Ducted or Ductless: Ducted
• UL Listed: Yes

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: A301
