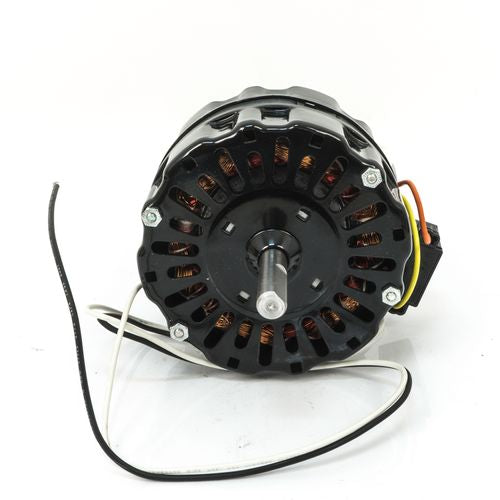

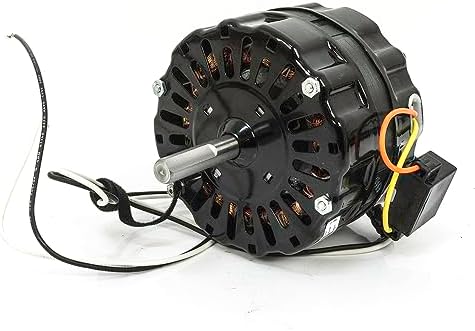

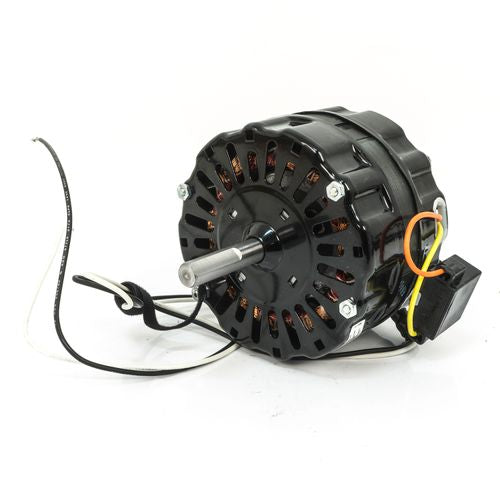

Diversitech 99319 L.L. Building Replacement Motor 1/5 HP

Product Description

The DIVERSITECH 99319 L.L. Building Replacement Motor is designed for various applications. It operates at 120V and 60 Hz with a 3.3 Amp draw. This motor features a PSC motor type, sleeve bearing, and CWSE rotation. It is suitable for ducted systems and includes mounting hardware.

• Operates at 120V and 60 Hz
• Features a PSC motor type and sleeve bearing
• Rotation is CWSE

Product Highlights

This replacement motor is ideal for maintaining optimal performance in your building's ventilation system.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 99319
• Country of Origin: EE. UU.

Technical Specifications

• Volts: 120
• Material: Metal
• Hertz: 60
• Amps: 3.3
• Bearing: Sleeve
• Motor Type: PSC
• Mounting: Bracket
• Rotation: CWSE
• RPM: 1050
• Speeds: 1
• Shaft ( in.): 1/2 in. x 2 2/7 in.
• Ducted or Ductless: Ducted
• phases: Single
• A2L Certified: Not Applicable
• Primary Depth (inches): 7.5
• Primary Width (inches): 7.75
• Primary Height (inches): 6.75
• Peso del art culo: 7,6 Libras
• N mero de art culos: 1
• Voltaje del motor: 120
• Temperatura ambiente: 104.0 F
• Rodamientos: Manga
• Condensador incluido: 10MFD/ 250V
• Certificaciones: UL, CSA
• Pa ís de origen: EE. UU.
• Di metro (En.): 5.12
• Caja: Abierto
• H.P.: 1/5
• Incluye: Hardware de montaje incluido
• Clase de aislamiento: B
• Longitud menos eje (In.): 3.33
• Materiales: Metal
• Protecci ón contra sobrecarga: Autom ático
• Fase: Sencillo
• Dimensiones del eje (pulg.) Di metro x Longitud: 1/2 x 2.30
• UPC: 840899112152
