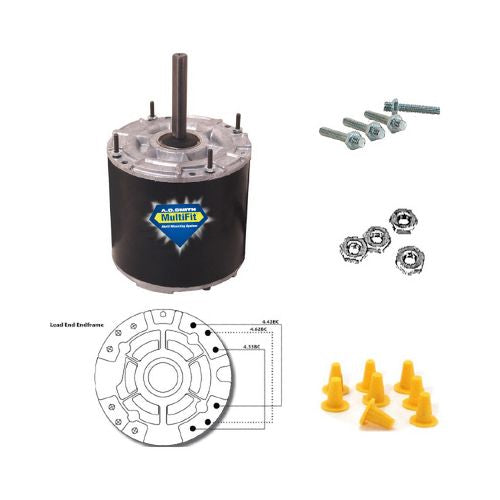

Diversitech 9723 Century 5 in. Dia. Multi-Fit Motor PSC 1/4 HP

Product Description

The Diversitech 9723 Century 5 inch diameter Multi-Fit Motor is a Permanent Split Capacitor (PSC) type, designed for condenser fan applications. This single-phase motor operates at 208-230 Volts and 1075 RPM, providing 1/4-1/5-1/6 HP. Constructed from steel, it features ball bearings and a reversible rotation, making it suitable for ducted systems. The motor has a totally enclosed air over design and a 1/2 inch x 3 inch shaft.

• MultiFit - Condenser Fan Motor for various applications.
• Permanent Split Capacitor (PSC) design; requires a 5 Mfd-370 Volts capacitor (not supplied).
• Totally Enclosed Air Over construction for durability and protection.

Product Highlights

Steel construction, ball bearings, and reversible rotation for ducted systems.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 9723

Technical Specifications

• Input Voltage: 208 - 230 Volts
• Material: Steel
• Frequency: 60 Hertz
• Horsepower: 1/4-1/5-1/6 HP
• Amperage: 2 Amps
• Bearing Type: Ball
• Motor Type: PSC
• Mounting Type: Studs
• Rotation: Reversible
• RPM: 1075
• Number of Speeds: 1
• Shaft Dimensions: 1/2 inch x 3 inch
• Application Type: Ducted
• Phase: Single
