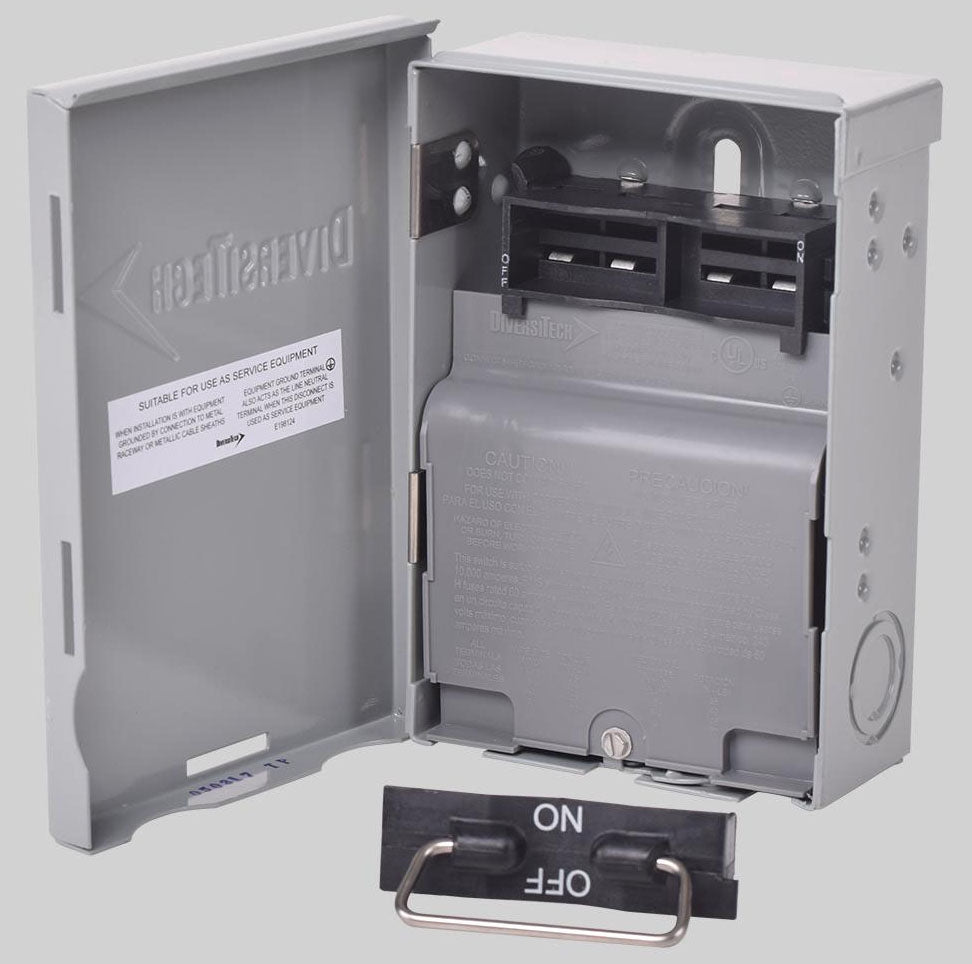

DiversiTech 83315 240 VAC 60 A 10 HP NEMA 3R Air Conditioner Disconnect Switch

Product Description

DiversiTech 83315 is a 240 volt air conditioner disconnect switch designed to ensure safety in HVAC systems. This device can handle up to 60 amps of current and is rated for 10 horsepower. It is built for outdoor use with a NEMA 3R enclosure that protects against rain and sleet.

• Type: Air Conditioner Pull-Out
• Voltage Rating: 240 Volt AC
• Current Rating: 60 Amp

Product Highlights

This disconnect switch allows safe isolation of electrical circuits and features a non-fusible design. It provides a reliable option for HVAC circuitry in both indoor and outdoor applications.

Product Information

Standard Information

• Manufacturer: DiversiTech
• UPC: 68574483315

Technical Specifications

• Power Rating: 10 HP
• Enclosure: NEMA 3R
• Enclosure Material: Metal
• Fuse Provision: Non-Fusible
• Dimensions: 2-3/8 Inch Length x 5 Inch Width x 7-1/2 Inch Height
• Approval: UL
• Application: HVAC Circuitry, Indoor/Outdoor
