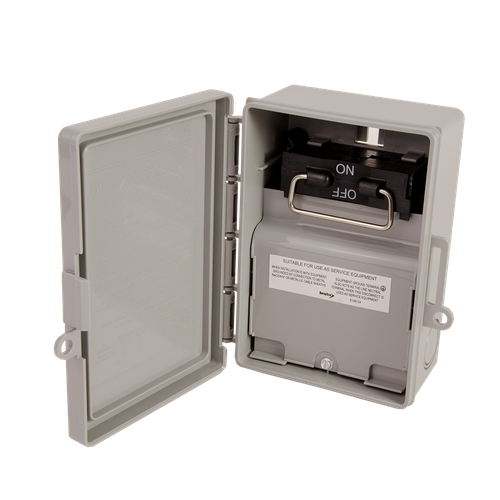

Diversitech 750-P60NF Non-Fusible Disconnect Switch 60A Non-Metallic Case

Product Description

The DiversiTech 750-P60NF is a disconnect switch designed for HVAC applications. It safely cuts power to equipment, such as air conditioning units and hot tubs, ensuring a secure working environment. This switch features a lightweight, non-corrosive plastic case that is suitable for outdoor conditions, resistant to rain and sleet.

• Standard DiversiTech electrical disconnect functionality
• Non-metallic, lightweight, non-corrosive case
• Rated for outdoor use with rain and sleet resistance

Product Highlights

This disconnect switch offers reliable performance in outdoor settings and meets safety standards for HVAC equipment.

Product Information

Standard Information

• Brand: DiversiTech
• Model/Part Number: 750-P60NF

Technical Specifications

• Power Supply: Single Phase
• Application: HVAC/R
• cUL Listed: Yes
• Max Volts (V): 240
• UL Listed: No
• Amps: 60
• Disconnect Mechanism: Pull-Out Handle
• Fused / Non-Fused: Non-Fusible
• NEMA Rating: 3R (Rain & Sleet Resistant)
• Product Depth: 3 inches
• Product Height: 8.63 inches
• Product Width: 5.25 inches
• Type: Non-Fusible Disconnect
• Amp Rating: 60 Amp
• Material: Plastic
