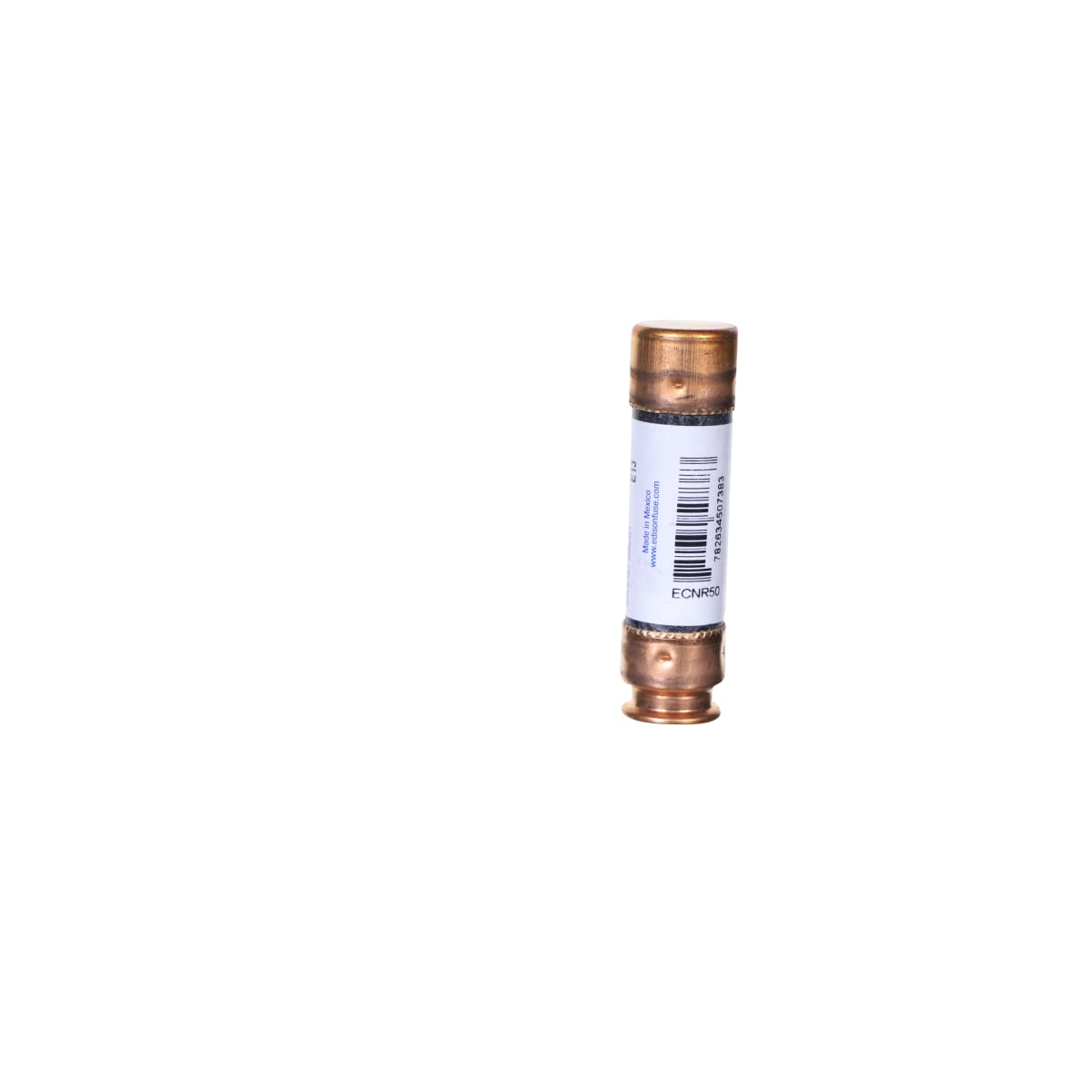

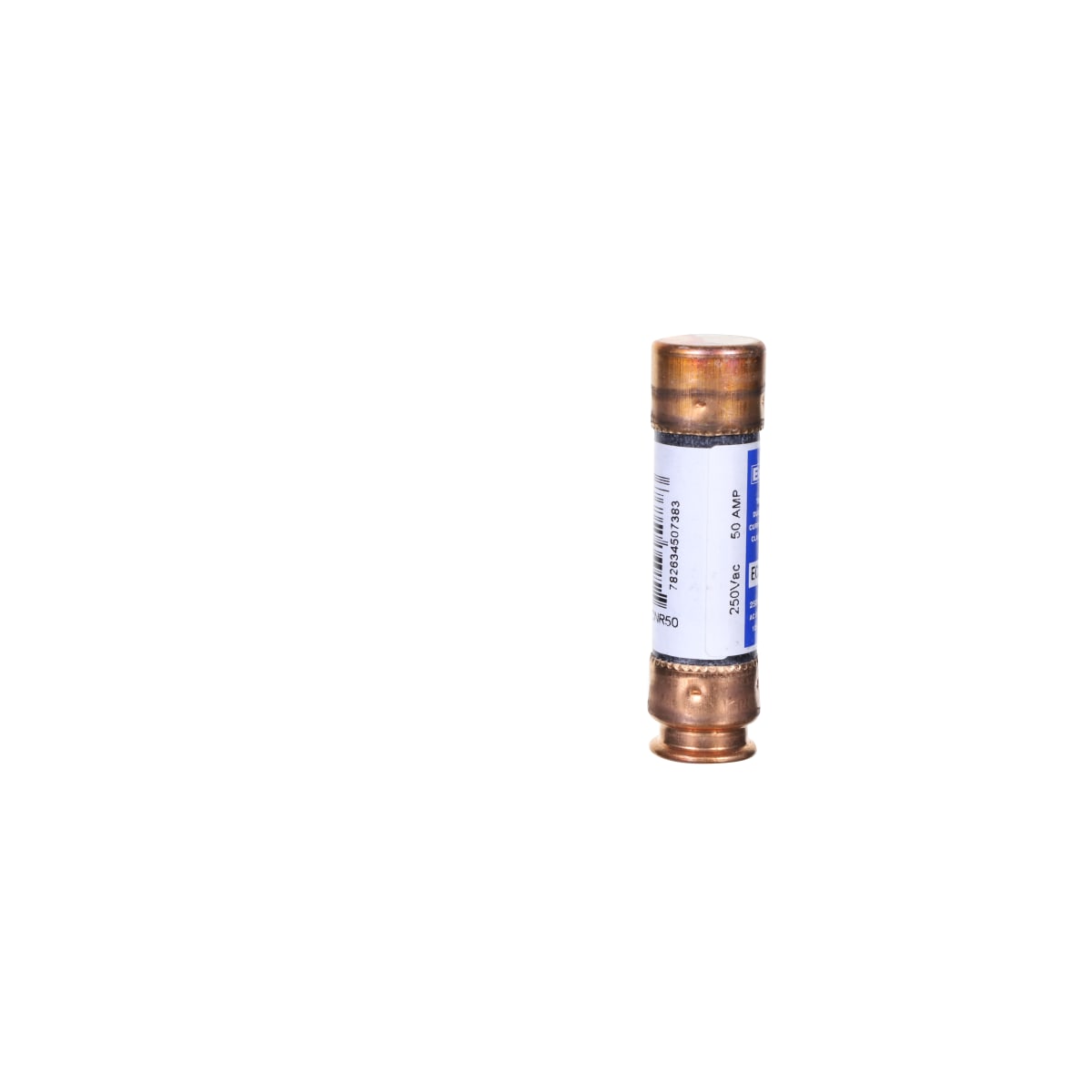

Diversitech 7-CRNR50 time delay, 50 amp 250V dual element fuse

Product Description

The Diversitech 7-CRNR50 dual element fuse is a time delay fuse with a 50 amp and 250V rating. It provides time delay for temporary over-current conditions and motor running protection for heating and air conditioning equipment. This fuse eliminates unnecessary maintenance from harmless overloads. It is U.L. Class RK-5 and standard for safety 198E.

• Time delay for temporary over current conditions
• Motor running protection for heating and air conditioning equipment
• Eliminates unnecessary maintenance from harmless overloads

Product Highlights

The Diversitech 7-CRNR50 fuse is ideal for providing time delay and motor protection in HVAC equipment, preventing unnecessary maintenance.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 7-CRNR50
• Country of Origin: United States

Technical Specifications

• Type: Time Delay
• Voltage: 250 VAC
• Amperage Rating: 50 A
• Class: Class RK5
• Element: Dual
• Interrupt Rating: 200 kA AC
• Certifications: UL 198E
• Standards: UL Listed, CSA C22.2
• Size: 13/16 inch dia. x 3 inch L
• Connection: Ferrule
