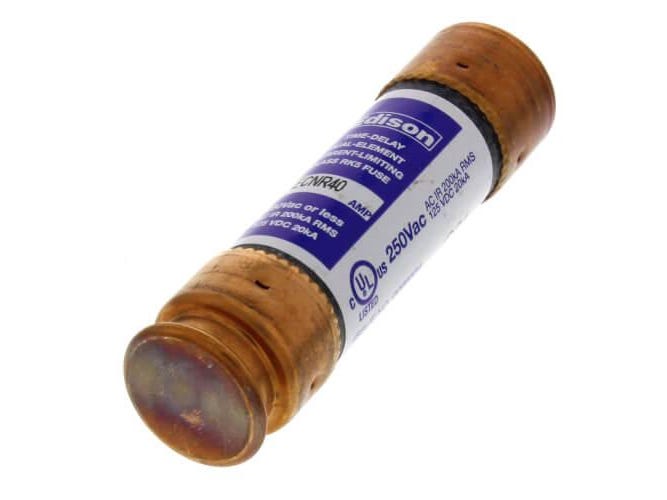

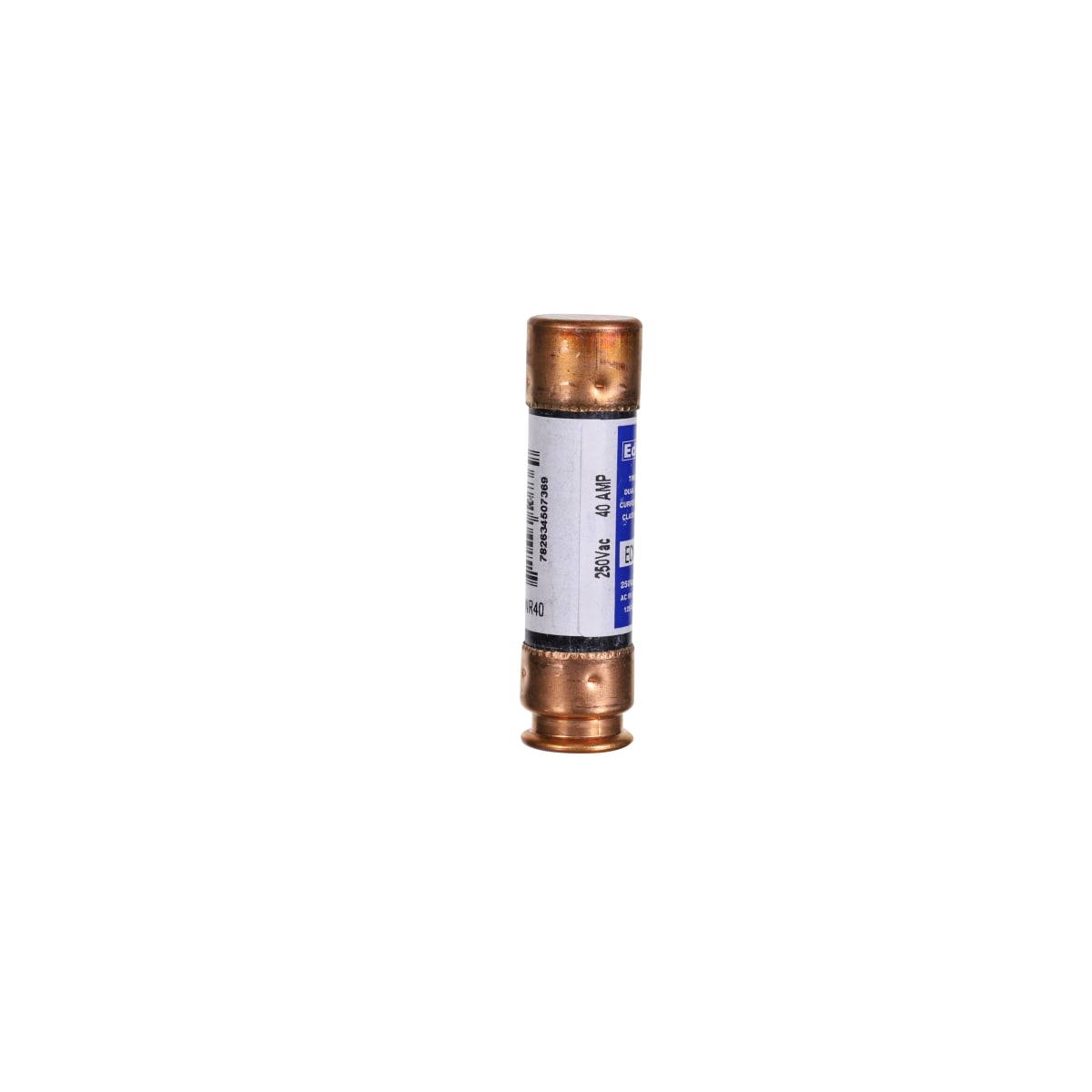

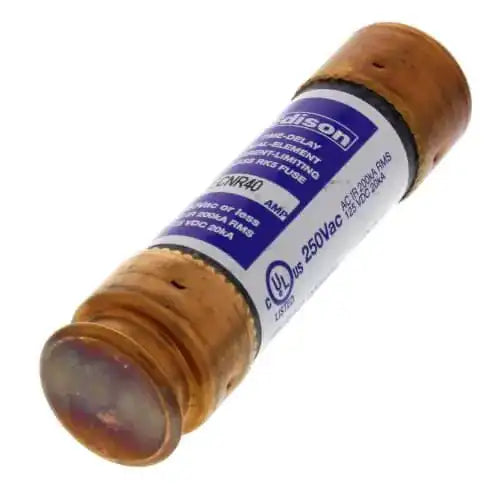

Diversitech 7-CRNR40 Dual Element Time Delay Fuses, 250V, 40 Amp

Product Description

The DiversiTech 7-CRNR40 dual element time delay fuses are rated at 250V and 40 Amp. These fuses provide a time delay for temporary over-current conditions and motor running protection for heating and air conditioning equipment. They also eliminate unnecessary maintenance from harmless overloads.

• Time delay for temporary over current conditions
• Motor running protection for heating and air conditioning equipment
• Eliminates unnecessary maintenance from harmless overloads

Product Highlights

Dual element fuses provide time delay for over-current conditions and motor protection, preventing unnecessary maintenance.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 7-CRNR40
• Country of Origin: United States

Technical Specifications

• Voltage: 250 V
• Interrupt Rating: 200kA RMS AC
• Fuse Type: Dual Element Cartridge
• Amperage Rating: 40 A
• Class: Class RK-5
• Element: Dual
• Voltage Rating: 250 VAC
• Certifications: UL 198E
• Amperage: 40A
• Type: Dual Element
• Size: 13/16 inch dia. x 3 inch L
• Connection: Ferrule
• Time Delay: 10 sec. (At 500 Percent Rated Load)
• Standards: UL Listed, CSA C22.2
