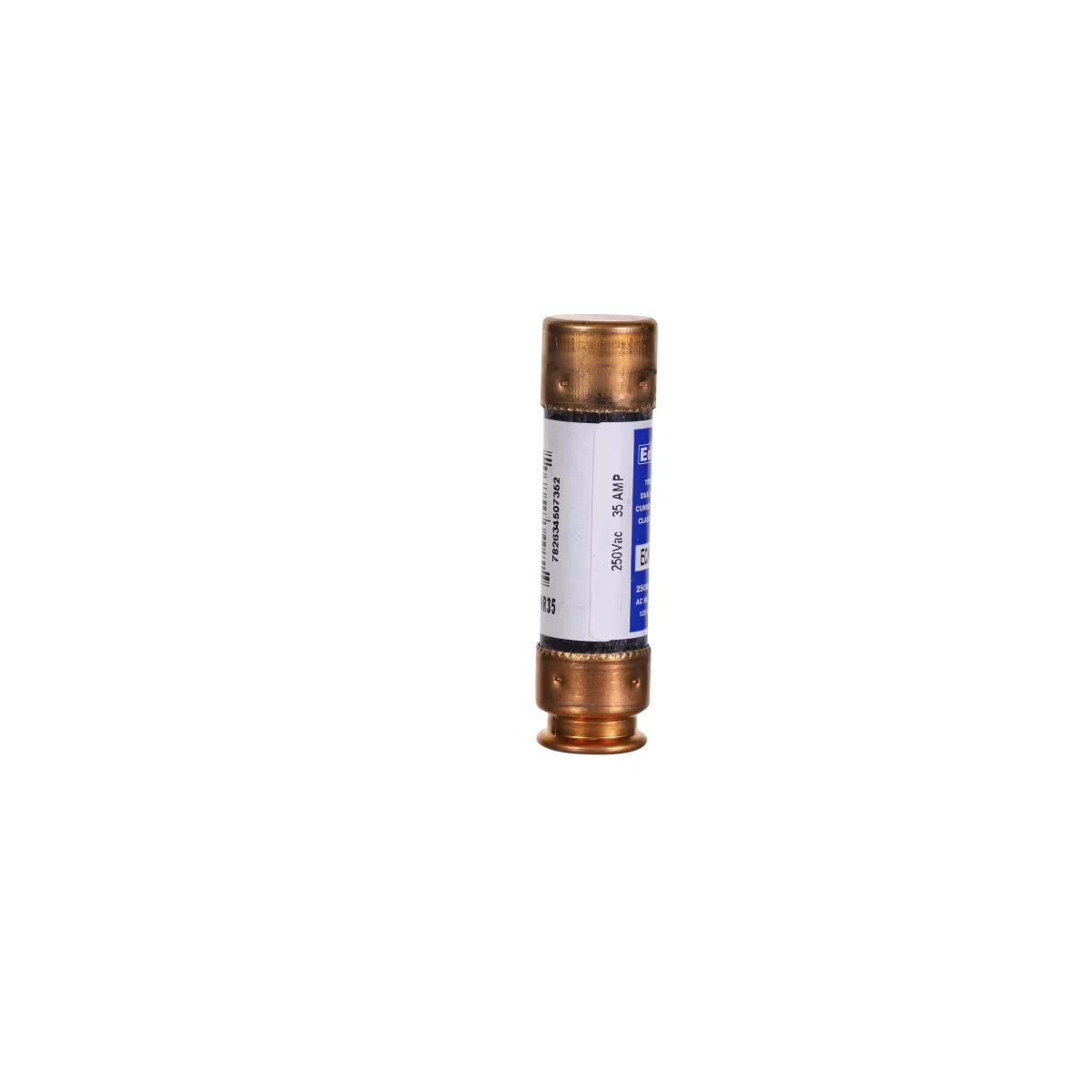

Diversitech 7-CRNR35 Time Delay, 35 Amp 250V Dual Element Fuse

Product Description

The DIVERSITECH 7-CRNR35 is a dual element time delay fuse, rated at 35A and 250V, designed for temporary over-current conditions and motor running protection in HVAC and motor-driven systems. It eliminates unnecessary maintenance from harmless overloads and has a Class RK5 classification and a 200,000 A interrupting capacity.

• Provides time delay for temporary over-current conditions and motor running protection for heating and air conditioning equipment.
• Eliminates unnecessary maintenance from harmless overloads.
• U.L. Class RK-5, Standard for Safety 198E, Current Limiting Fuses, Interrupting Rating 200,000 A rms. A.C.

Product Highlights

This dual element fuse is ideal for electrical applications such as air conditioning and refrigeration systems, motor control circuits, and other inductive loads.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 7-CRNR35
• Country of Origin: US

Technical Specifications

• Type: Time Delay
• Voltage: 250 VAC
• Class: Class RK5
• Element: Dual
• Certifications: UL 198E
• Amperage Rating: 35 A
• Interrupt Rating: 200000 A
• Country of Origin: US
• MPN: 7-CRNR35
• Brand: DIVERSITECH
• amperage: 35
• voltage: 250
• category: fuses
• Length (inches): 0.75
• Width (inches): 0.75
• Height (inches): 3
• Item Type: Fuse
• Standards: UL Listed, CSA C22.2
• Sub Brand: Bullet��
• Voltage Rating: 250VAC
• Connection: Ferrule
• Pressure Class: RK5
• Time Delay: 10 sec. (At 500 Percent Rated Load)
• Size: 13/16 inch dia. x 3 inch L
