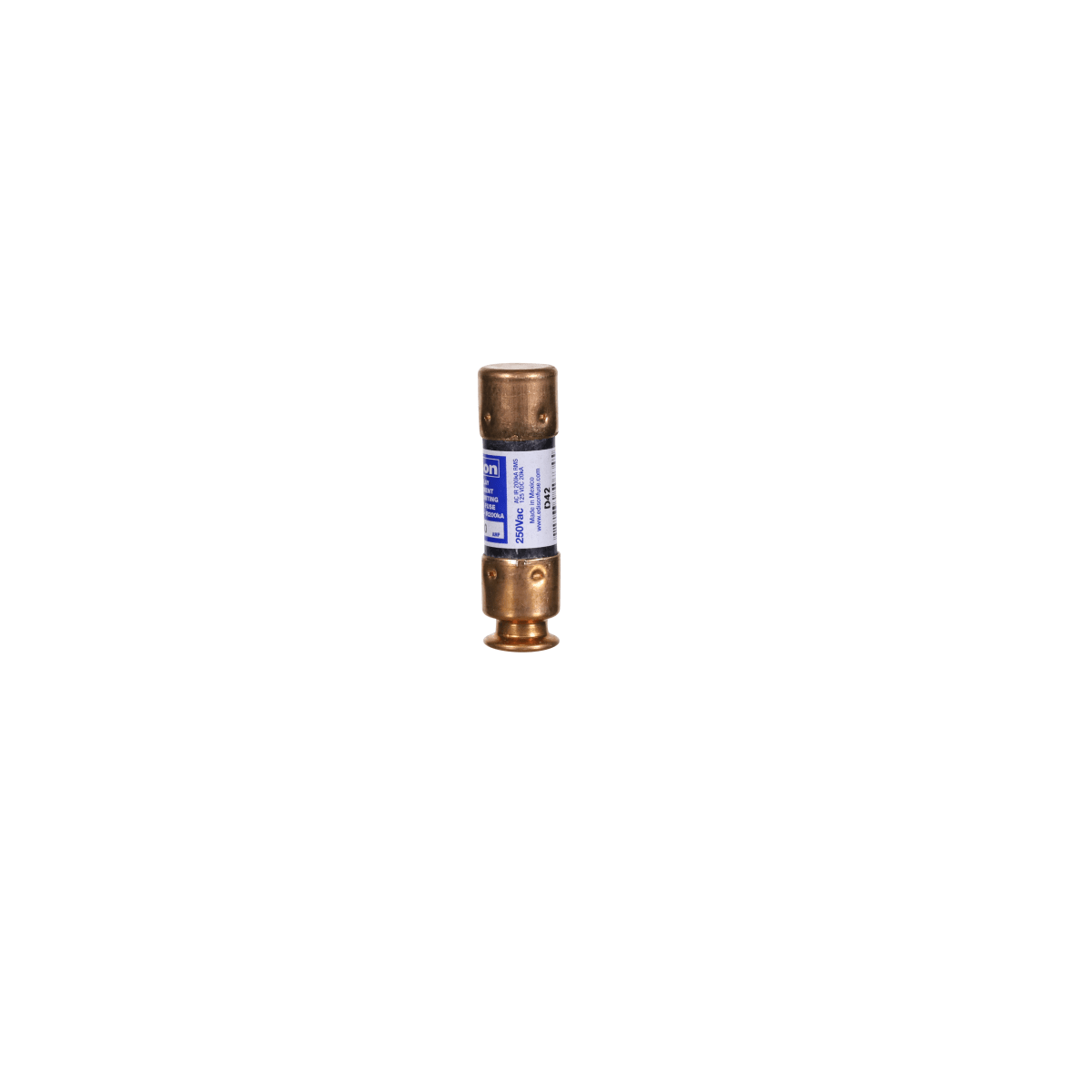

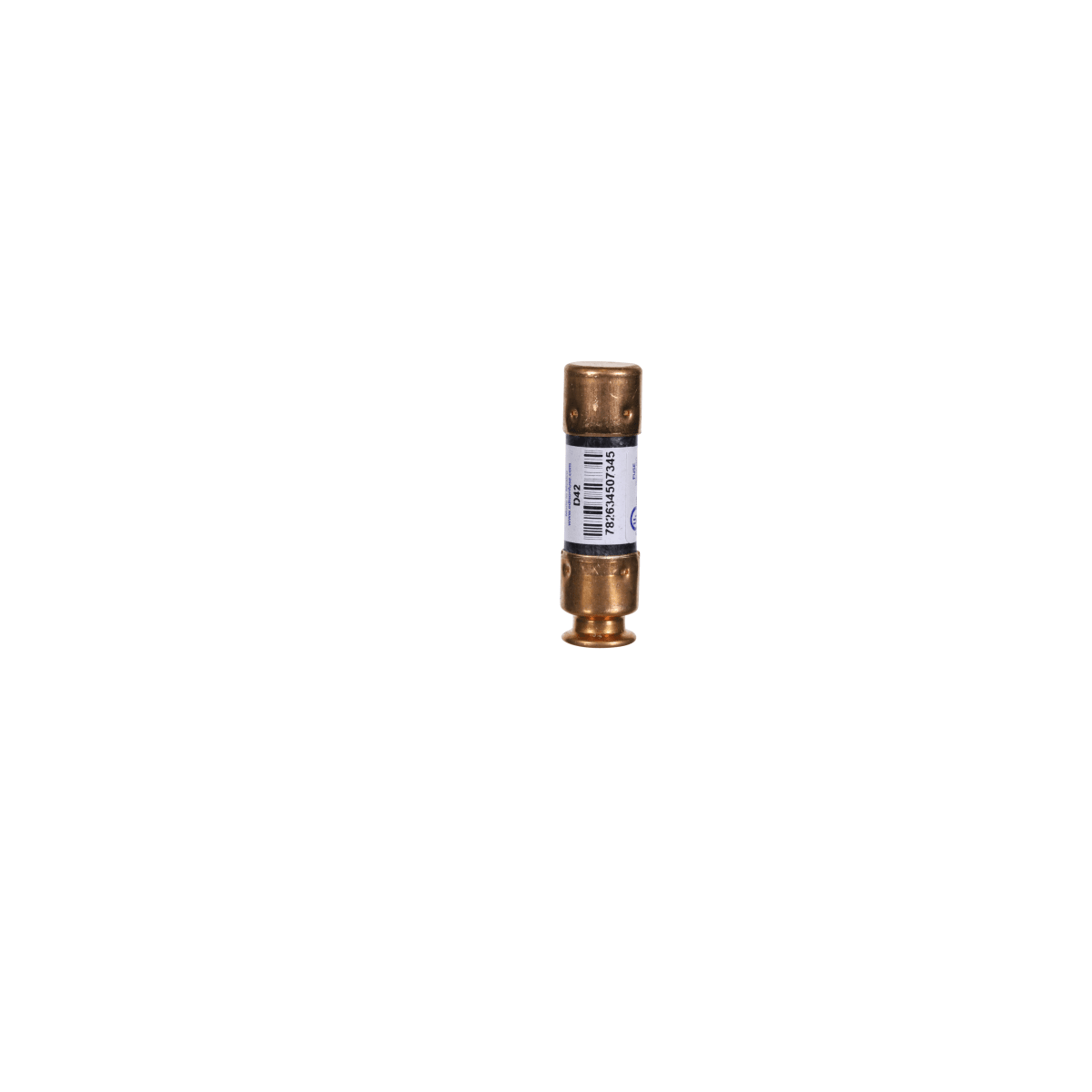

Diversitech 7-CRNR30 Time Delay, 30 Amp 250V Dual Element Fuse

Product Description

The DIVERSITECH 7-CRNR30 is a time delay fuse with a 30 Amp amperage and 250V voltage rating, featuring a dual element design. It provides time delay for temporary over-current conditions and motor running protection for heating and air conditioning equipment. The fuse eliminates unnecessary maintenance from harmless overloads.

• Time delay for temporary over-current conditions
• Dual element fuse
• 200 kA AC Interrupting Rating

Product Highlights

This Diversitech time delay fuse is ideal for motor and HVAC equipment protection, preventing downtime from temporary overloads.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 7-CRNR30
• Country of Origin: US

Technical Specifications

• Type: Time Delay
• Voltage: 250V
• Amperage: 30A
• Series-Brand: Diversitech
• Class: Class RK5
• Element: Dual
• Certifications: UL 198E
• Voltage Rating: 250 VAC
• Amperage Rating: 30 A
• Interrupt Rating: 200 kA AC
• Country of Origin: US
• Fuse Type: Cartridge
• Brand: DIVERSITECH
• Item Number: 7-CRNR30
• Standards: UL Listed
• U.L. Class: rk-5
• Standard for safety: 198E
• Interrupting rating: 200, 000 Amps Rms. A.C.
• Volts: 250
• amperage: 30
• voltage: 250
• category: fuses
• type: dual element
• Element Type: Dual
• Connection: Ferrule
• Pressure Class: RK5
• Time Delay: 8 sec. (At 500 Percent Rated Load)
• Application: For Motor Circuits, Branch Circuits, General-Purpose Protection
• Size: 9/16 inch dia. x 2 inch L
