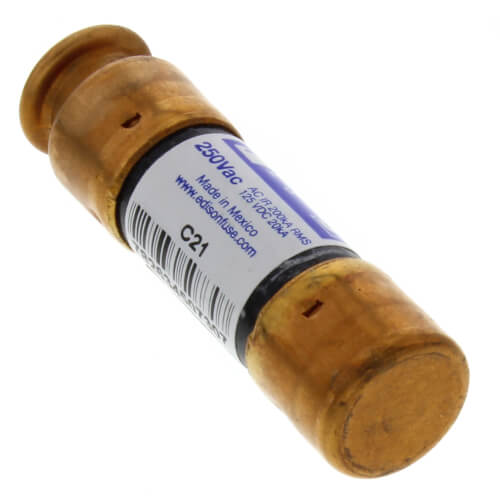

Diversitech 7-CRNR15 Time Delay, 15 Amp 250V Dual Element Fuse

Product Description

The Diversitech 7-CRNR15 is a time delay fuse with a 15 Amp amperage and 250V voltage rating. It provides a time delay for temporary over-current conditions and motor running protection for heating and air conditioning equipment. This dual element fuse eliminates unnecessary maintenance from harmless overloads.

• Provides time delay for temporary over-current conditions and motor running protection for heating and air conditioning equipment.
• Eliminates unnecessary maintenance from harmless overloads.
• U.L. Class RK-5, Standard for Safety 198E, Current Limiting Fuses, Interrupting Rating 200,000 A rms. A.C.

Product Highlights

The Diversitech 7-CRNR15 fuse is a time-delay, dual-element fuse designed for motor protection and to prevent unnecessary maintenance.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 7-CRNR15
• Country of Origin: US

Technical Specifications

• Type: Time Delay
• Voltage: 250V
• Amperage: 15 A
• Class: Class RK5
• Element: Dual
• Certifications: UL 198E
• Interrupt Rating: 200kA RMS AC
• Country of Origin: US
• Response time: 8 sec at 500%
• Connection: Ferrule end x ferrule end
• Application: For Motor Circuits, Branch Circuits, General-Purpose Protection
• Standards: UL Listed, CSA C22.2
