Diversitech 66093 draft inducer 120V 0.43A 5/8 inch stack CCW replaces Lennox 80C93

Product Description

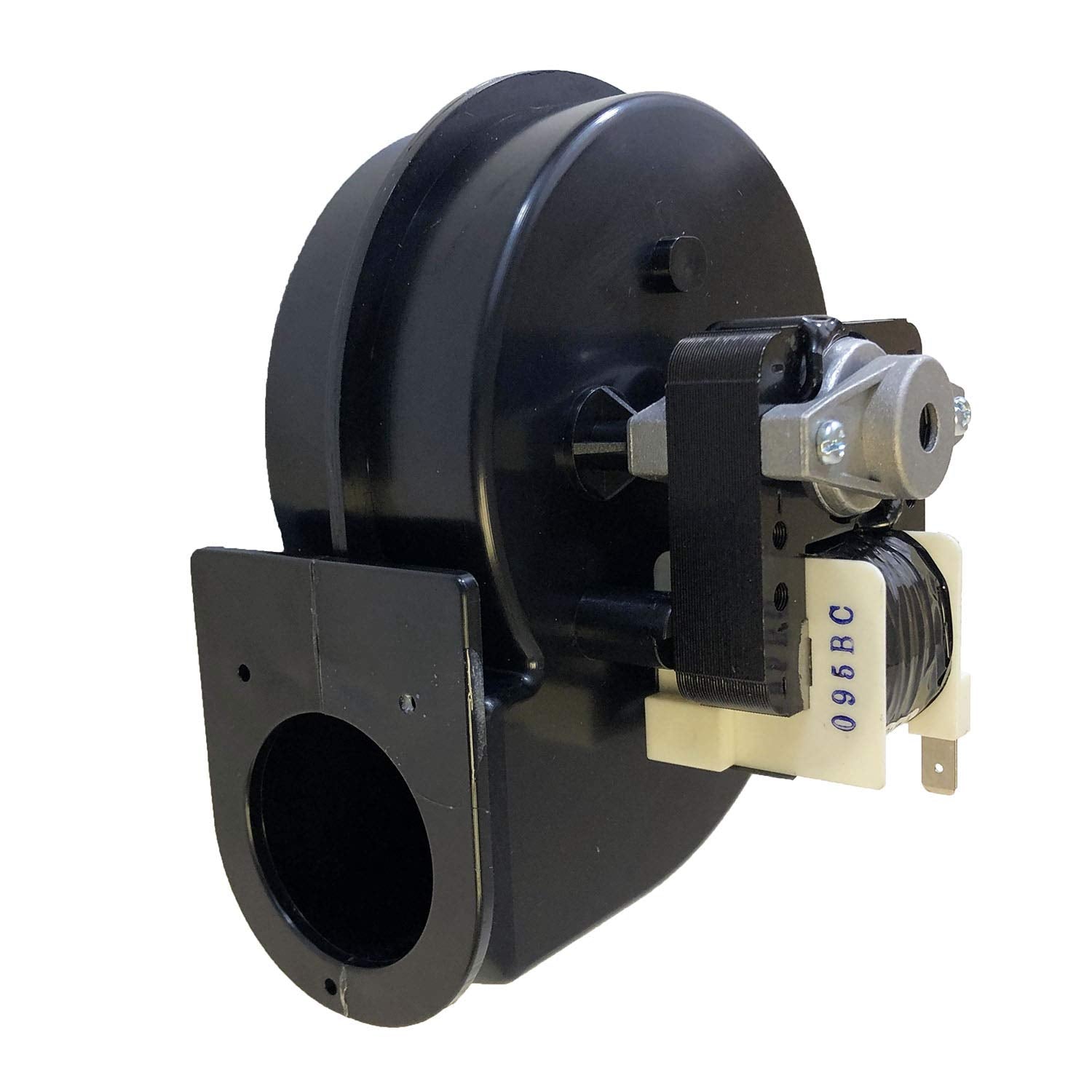

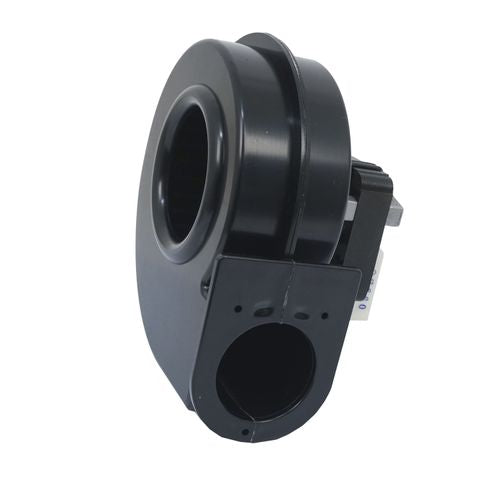

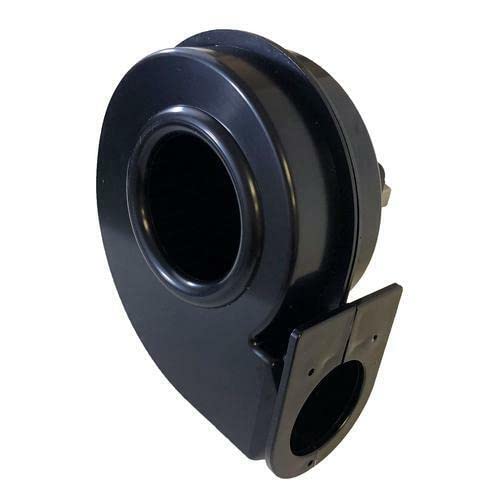

The DIVERSITECH 66093 Draft Inducer is a C-Frame Shaded Pole Motor designed for HVAC applications. It operates at 120 Volts and 0.43 Amps, providing 3000 RPM with a single speed. This unit features ball bearings and automatic overload protection, ensuring reliable performance. It is suitable for systems requiring a 5/8 inch stack and CCW shaft end rotation, serving as a direct replacement for Lennox 80C93.

• Direct replacement for Lennox 80C93
• Features a C-Frame Shaded Pole Motor design
• Equipped with ball bearings and CCW shaft end rotation

Product Highlights

Single speed draft inducer with automatic overload protection for HVAC systems.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 66093
• Country of Origin: TAIWAN

Technical Specifications

• Input Voltage: 120 V
• Output Current: 0.43 A
• Frequency: 60 Hz
• Bearing Type: Ball
• Enclosure Type: Open
• Insulation Class: B
• Motor Type: Shaded Pole
• Overload Protection: Automatic
• Phase: Single
• RPM: 3000
• Number of Speeds: 1
• Stack Size: 5/8 inch
• Shaft Rotation: CCW
• Frame Type: C-Frame
• Temperature Rating: 40° C
• Application Type: Ducted
