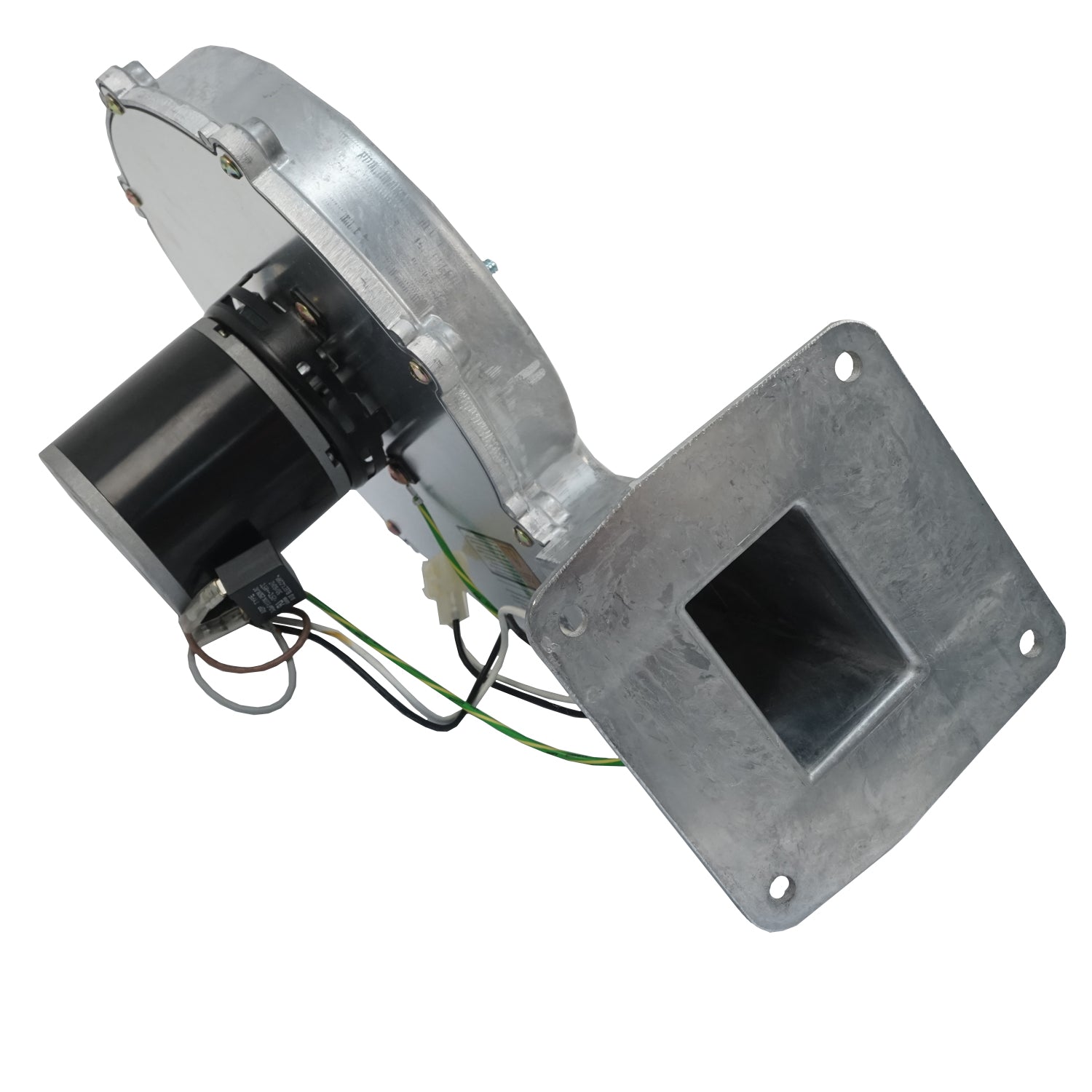

Diversitech 66056 Combustion Blower 1.0 Amps 115 Volt Burnham Replacement

Product Description

The DiversiTech 66056, Combustion Blower Rep Burnham is a PSC draft inducer assembly designed to replace original Burnham model 6116056 Packard branded draft inducers' performance specifications are based on the OEM models they are designed to replace. DiversiTech encourages the use of cross reference information to choose the right draft inducer for your application.

• Cross reference information based on performance testing
• PSC Motor (Capacitor Included)
• Square Flange Outlet

Product Highlights

The DiversiTech 66056 combustion blower is a 115 volt replacement part for furnaces. It features a PSC motor, square flange outlet, and is designed for ducted applications.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 66056

Technical Specifications

• Volts: 115
• Rated Horsepower (HP): 1/15
• Hertz: 60
• Horsepower: 1/15
• Amps: 0.48
• Bearing: Ball
• Enclosure: Open
• Insulation Class: B
• Motor Type: PSC
• Rotation: N/A
• RPM: 3400
• Speeds: 1
• Temp. Rating: N/A
• Ducted or Ductless: Ducted
• Frame: 3.3
• phases: Single
