Diversitech 6507VUI RegalRexnord Evergreen VS - ECM Variable Speed Replacement Motor 3/4 HP 48 Frame

Product Description

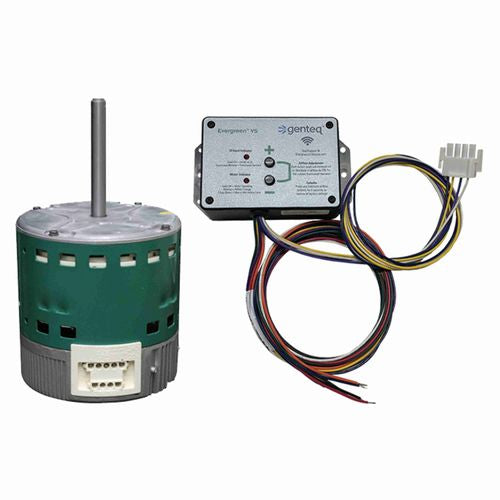

The DIVERSITECH 6507VUI is a RegalRexnord Evergreen VS - ECM Variable Speed Replacement Motor, designed for efficient operation in ducted systems. This 3/4 HP motor operates at 1050 RPM with a 48 Frame, providing reliable performance for various applications. It includes a User Interface 5K010V and features a durable ball bearing construction.

• ECM Variable Speed Replacement Motor, Includes User Interface 5K010V
• Electronically Protected
• 36" Leads

Product Highlights

This ECM variable speed motor offers electronically protected operation with a user interface for enhanced control.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 6507VUI

Technical Specifications

• Input Voltage: 120/240 V
• Length: 11.96 in.
• Rated Horsepower: 3/4 HP
• Amperage: 10.1/6.1 A
• Bearing Type: Ball
• Body Diameter: 5.6 in.
• Enclosure Type: Open Air Over
• Insulation Class: B
• Motor Type: ECM
• Mounting Type: Round
• Rotation: Reversible
• RPM: 1050
• Operating Temperature: 40° C
• Shaft Dimensions: 1/2 in. x 5 in.
• Application Type: Ducted
• Frame Size: 48
• Phase: 1 Ph
• Frequency: 60 Hz
