Diversitech 63100 Packard Motor 1/2-1/3 Hp 1625/1350Rpm 115/230V Replaces 6310R

Product Description

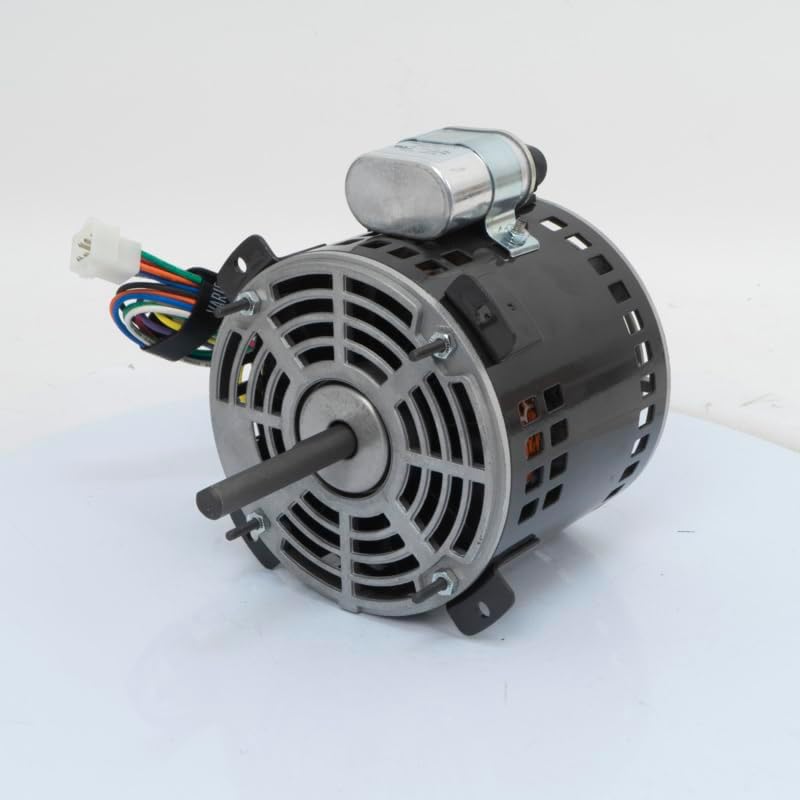

The DIVERSITECH 63100 is a Packard motor designed for various applications, including as a replacement for Captive Aire 6310R in models like DU33L, DU33H, DR33L, and DR33H. This permanent split capacitor motor operates at 230 Volts and features a reversible rotation. It offers 0.5 horsepower and a single speed of 1625 RPM, making it suitable for demanding electrical systems. The motor includes a capacitor and is built with Class F insulation for enhanced durability.

• Operates at 230 Volts with a permanent split capacitor design.
• Features 0.5 horsepower, 1625 RPM, and reversible rotation.
• Constructed from durable plastic and metal with Class F insulation and an open enclosure.

Product Highlights

This motor is a direct replacement for Captive Aire 6310R, featuring automatic overload protection and ball bearings for reliable performance.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 63100
• Country of Origin: CHINA

Technical Specifications

• Product Type: ELECTRIC_MOTOR
• Motor Brand: Packard
• Bearings: Ball
• Country of Origin: CHINA
• Diameter: 5 5/8 inches
• Enclosure: Open
• Horsepower: 0.5 hp
• Length Less Shaft: 5.98 inches
• Motor Rotation: Reversible
• Mounting Option: Stud/Bracket
• NEMA Frame: 48
• RPM: 1625
• Shaft Dimensions: 0.5 x 2.95 inches (Dia x Lgth)
• Speeds: 1
• Voltage: 230 Volts
• Insulation Class: F
• Overload Protection: Automatic
• Frequency: 60 Hertz
• Capacitor Type: Permanent Split Capacitor, Capacitor Included
• Material: Plastic, Metal
• Phases: Single
