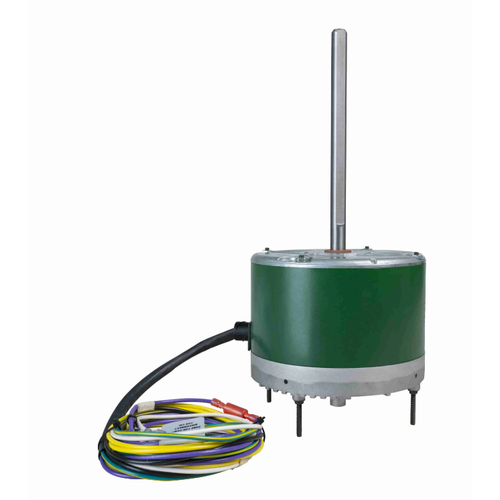

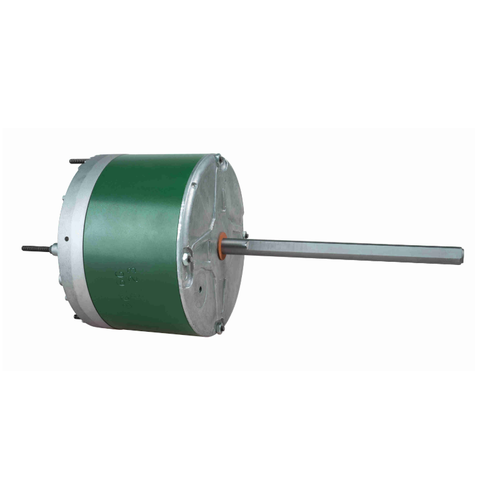

Diversitech 6303S Evergreen OM Condenser Fan Motor 1/3 HP replacement RegalRexnord 6303S

Product Description

The DIVERSITECH 6303S Evergreen OM Condenser Fan Motor is a 1/3 HP motor designed for condenser fan applications. It operates at 208-230 V and 60 Hz, offering two speeds of 825/1075 RPM. The motor features a totally enclosed air over enclosure and is suitable for ducted applications.

• 1/12 - 1/3 HP
• Shaft down or horizontal mount
• Simplified wiring for quick installation

Product Highlights

This condenser fan motor is designed for easy installation and reliable performance in various HVAC systems.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 6303S

Technical Specifications

• Volts: 208_230
• Product Length: 10.98 in.
• Rated Horsepower (HP): 1/3
• Amps: 2.8
• Bearing: Ball
• Body Diameter ( in.): 5.6
• Enclosure: Totally Enclosed Air Over
• Insulation Class: B
• Motor Type: ECM
• Mounting: Round
• Rotation: REVERSIBLE
• RPM: 825_1075
• Speeds: 2
• Temp. Rating: 40° C
• Shaft ( in.): 1/2 in. x 6 1/2 in.
• Ducted or Ductless: Ducted
• Frame: 48
