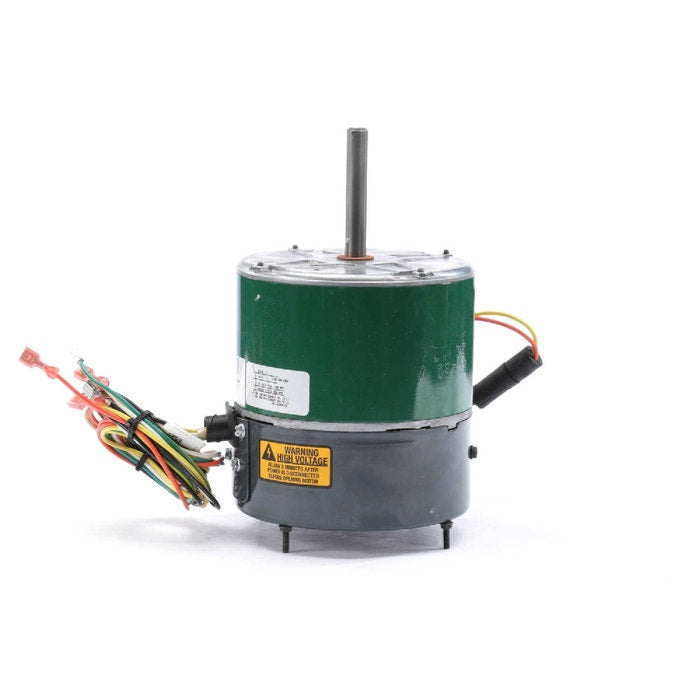

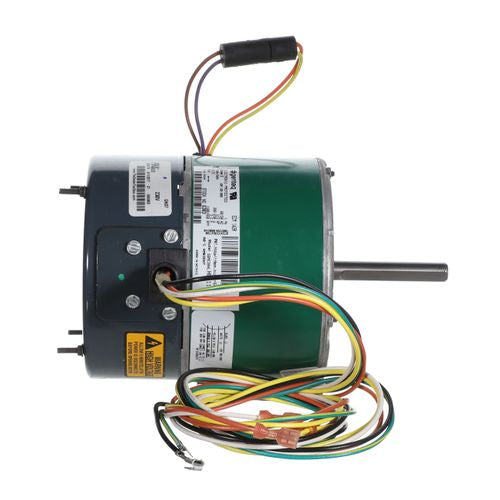

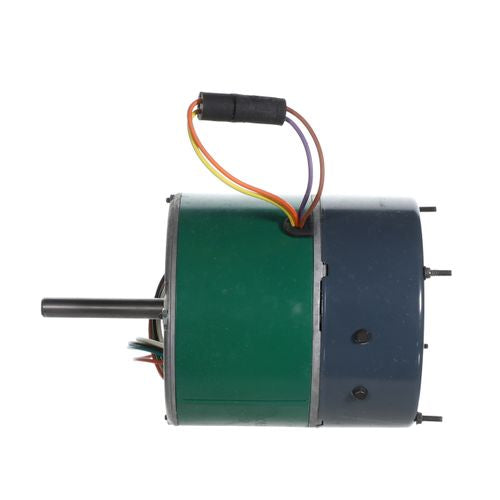

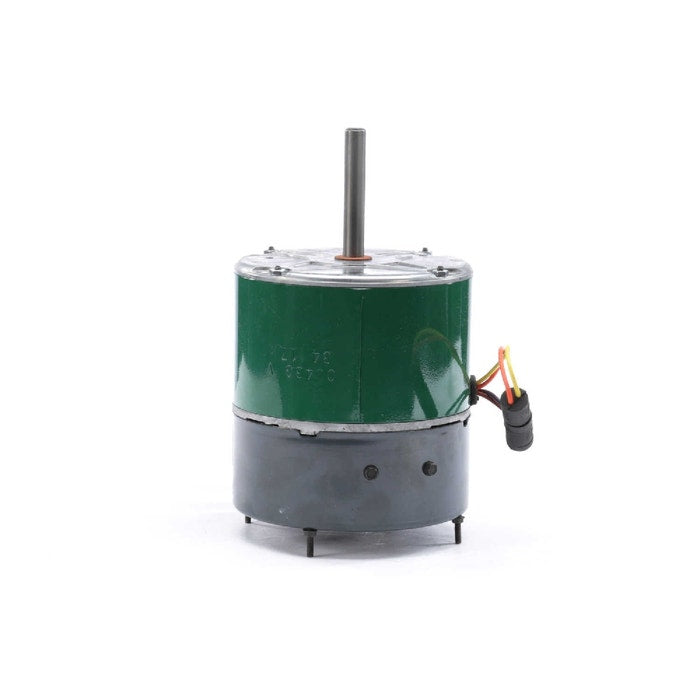

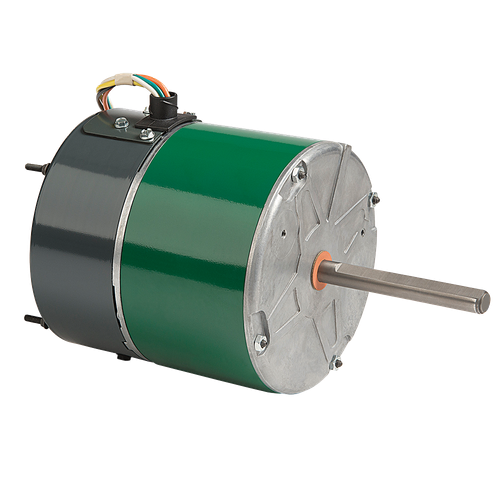

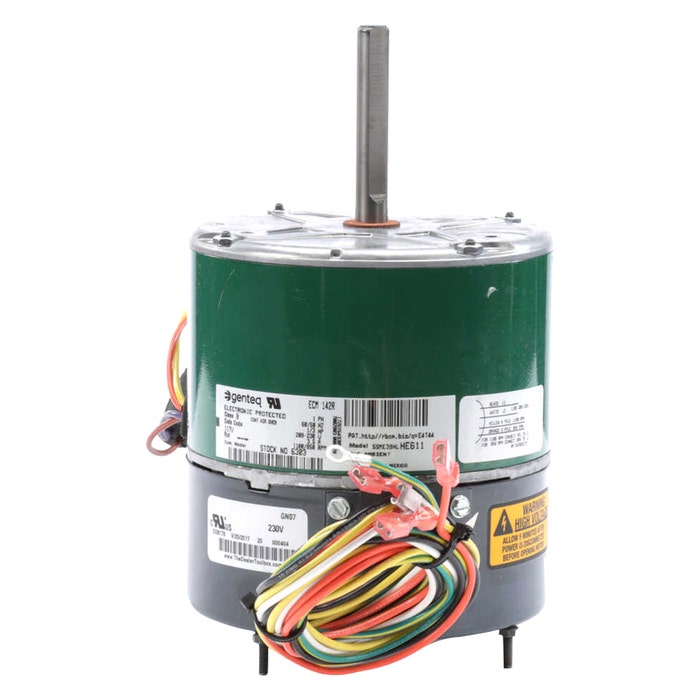

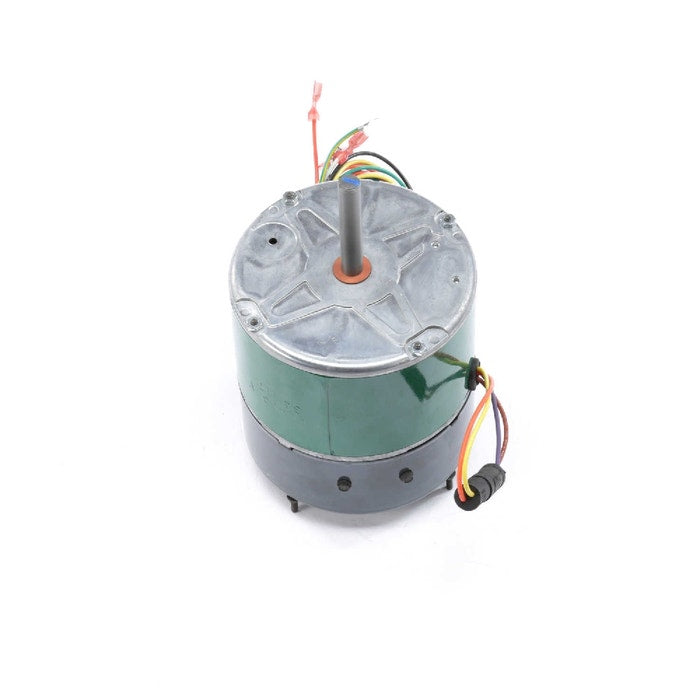

Diversitech 6303 Condenser Fan Motor 1/3 hp 5-5/8 inches Dia 208-230V ECM TEAO Reversible 1100/850 RPM 1/2 x 3 inches Shaft Evergreen

DIVERSITECH
Brand: DIVERSITECH
SKU: 6303
5.0
Rated 5.0 out of 5 stars
1 Review
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$340.90
$340.90
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Diversitech 6303 condenser fan motor is a versatile, high-efficiency ECM designed to replace induction motors in outdoor fan applications. Rated at 1/3 HP and 208-230V, this motor is suitable for direct-drive fan propellers and axial fan blades in A/C or heat pump systems. It features a totally enclosed air over enclosure and reversible rotation.

  • Easy retrofit design.
  • Provides quiet start and operation.
  • Up to 80% efficiency for improved system performance.

Product Highlights

High-efficiency ECM motor for HVAC condenser fan applications, offering quiet operation and improved energy savings.

Product Information

Standard Information

  • Brand: DIVERSITECH
  • Manufacturer Part Number: 6303
  • Country of Origin: Mexico

Technical Specifications

  • Application: HVAC
  • Volts: 208-240
  • Rated Horsepower (HP): 1/3
  • Amps: 3.5
  • Bearing: Ball
  • Body Diameter (in.): 5.95
  • Enclosure: Totally Enclosed Air Over
  • Insulation Class: B
  • Motor Type: ECM
  • Mounting: Round
  • RPM: 850/1100
  • Speeds: 2
  • Temp. Rating: 140° F
  • Shaft (in.): 1/2 x 3
  • Frame: 48
  • Bearing Type: Ball Bearing
  • Motor Enclosure: TEAO
  • Motor/Blower Application: Condenser
  • Rotation: Reversible
  • Shaft Diameter: 1/2"
  • Supplier Part Number: 6303
  • Frame Type: 48
  • Phase: 1
  • Hertz: 50/60Hz
  • Horsepower (HP): 1/3
  • Motor Application: Condenser Duty
  • Number of Poles: 4
  • Number of Speeds: 2

DIVERSITECH

Diversitech 6303 Condenser Fan Motor 1/3 hp 5-5/8 inches Dia 208-230V ECM TEAO Reversible 1100/850 RPM 1/2 x 3 inches Shaft Evergreen

$340.90

DIVERSITECH

Diversitech 6303 Condenser Fan Motor 1/3 hp 5-5/8 inches Dia 208-230V ECM TEAO Reversible 1100/850 RPM 1/2 x 3 inches Shaft Evergreen

$340.90

Related Products

Vendor
Example product title
$340.90
$340.90
Vendor
Example product title
$340.90
$340.90
Vendor
Example product title
$340.90
$340.90
Vendor
Example product title
$340.90
$340.90
Vendor
Example product title
$340.90
$340.90
Vendor
Example product title
$340.90
$340.90
5.0
Rated 5.0 out of 5 stars
Based on 1 review
100%would recommend this product
Write a Review (Opens in a new window)
1 review
  • SC
    S C.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    1 month ago
    Just what I needed

    Motor arrived on time. Had to separate it from the controller and extended the connector wires put a rubber grommet to keep it sealed from moisture. Wired it to contactor per instruction. It started right up. I used the orange slow speed wire.
