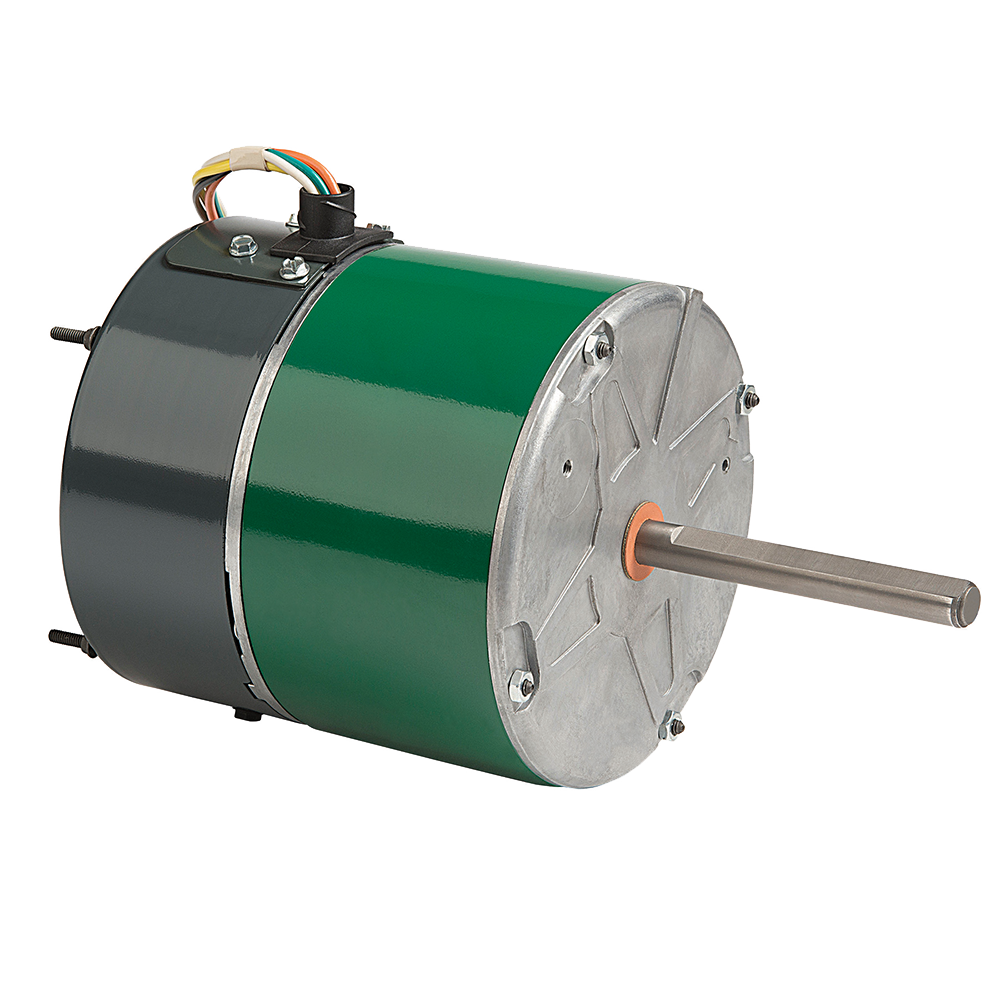

Diversitech 6301 Genteq Evergreen OM ECM Motors 1/5HP 208-240V 2.8 Amps 850/1100RPM 2 Speed 48 Frame Outdoor Motor

Product Description

The DIVERSITECH 6301 Genteq Evergreen OM ECM Motor is a high-efficiency motor designed for outdoor fan applications. Operating at 208-240V with 1/5HP and 2.8 Amps, it offers 2 speeds (850/1100 RPM) within a 48 frame. This motor is suitable for direct-drive fan propellers in A/C or Heat Pump systems, including split or package systems, and replaces induction, shaded pole, or PSC motors.

• Easy retrofit.
• Provides a quiet start and operation
• Has an efficiency up to 80% for improved system efficiency

Product Highlights

High-efficiency ECM motor for outdoor fan applications, featuring quiet operation, easy retrofit, and up to 80% efficiency.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 6301
• Country of Origin: Mexico

Technical Specifications

• Input Voltage: 208-240V
• Length: 8.49 in.
• Horsepower: 1/5 HP
• Current: 2.8 Amps
• Bearing: Ball
• Body Diameter: 5.45 in.
• Enclosure: Totally Enclosed Air Over
• Insulation Class: B
• Motor Type: ECM
• Mounting: Round
• Rotation: REVERSIBLE
• RPM: 850-1100
• Number of Speeds: 2
• Temperature Rating: 104°F
• Shaft Dimensions: 1/2 in. x 3 in.
• Ducted or Ductless: Ducted
• Frame Size: 48
• Application: Outdoor Fan
• Replaces: 6 Pole (1,100 rpm rated) and 8 Pole (850 rpm rated) Shaded Pole or PSC Motors
