Diversitech 6252 Terminal, 12-10wr #10 Stud Butted Insulated Rings 17/Pack

Product Description

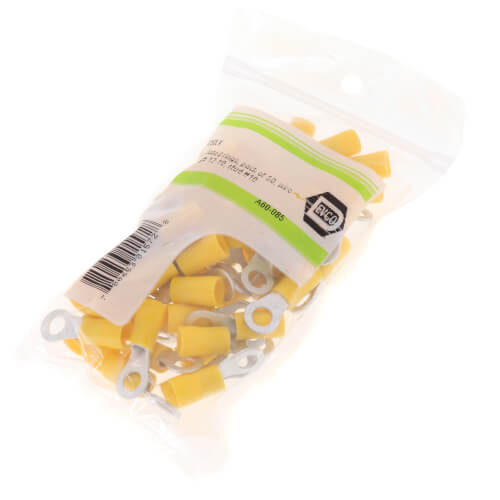

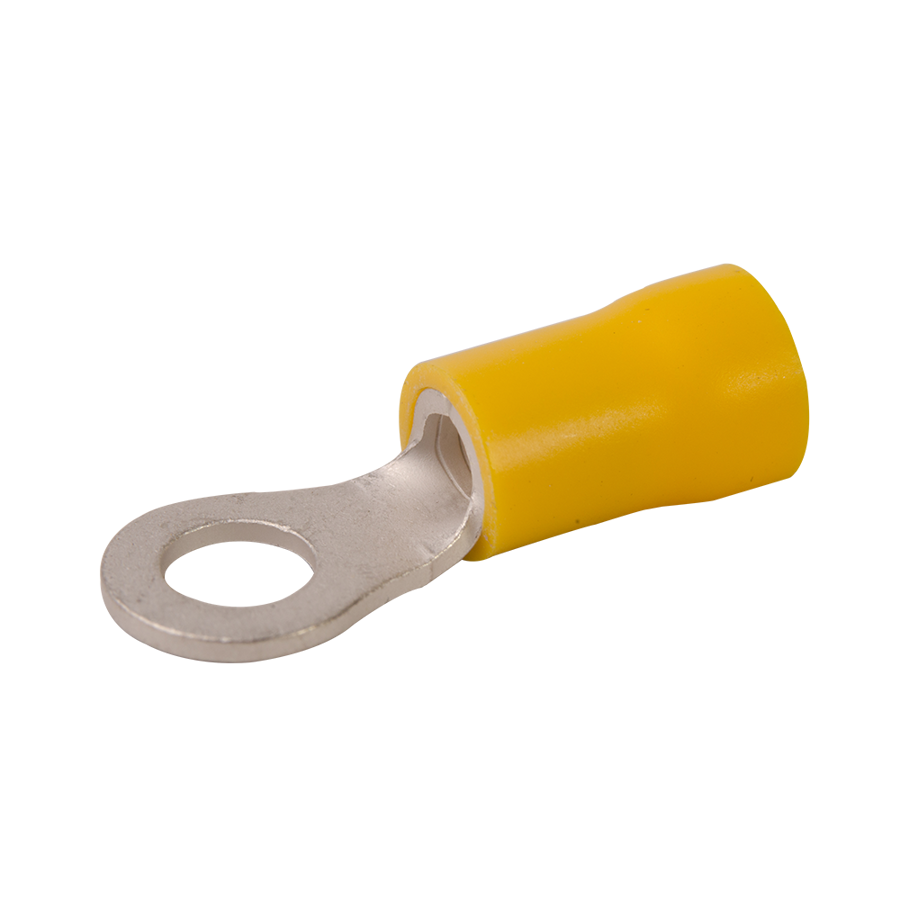

The DIVERSITECH 6252 terminal is an insulated ring designed for 12 to 10 AWG wire and a #10 stud. These solderless terminals come in a pack of 17 and feature butted insulated rings. They are manufactured from high-strength copper alloy and electro-tin plated for corrosion resistance. The wire range is stamped on the surface for easy identification.

• Designed for 12 to 10 AWG wire
• Features a #10 stud size
• Electro-tin plated copper alloy for corrosion resistance

Product Highlights

Insulated ring terminals ensure secure electrical connections. Ideal for various electrical applications, these terminals provide a reliable and easy-to-use solution for wire termination.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 6252

Technical Specifications

• MPN: 6252
• Brand: Diversitech
• Part #: 6252
• UOM: EA
• Number of Items: 1.0
• Hardware Type: Insulated Ring #10 12-10 Wire 17/PK
• Type: Standard, Solderless
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Insulation Type: Insulated
• Stud Size: #10
• Standard Package: 17 per Pack
• Conductor Size: 12 to 10 AWG
• Material: Copper Alloy
• Finish: Electro-TiN Coated
• Manufacturer: Diversitech
• Manufacturer #: 6252
• Number of Pieces: 17 Pack
• Mounting Hole Diameter: #10
• Wire Size: 12 to 10 AWG
• Product Type: Ring (Terminal)
• Features: Insulated
• AWG: 12-10
• Bolt Hole Size: #10
