Diversitech 6229 Female Slip-on Terminal 16-14 Awg Pack of 11

Product Description

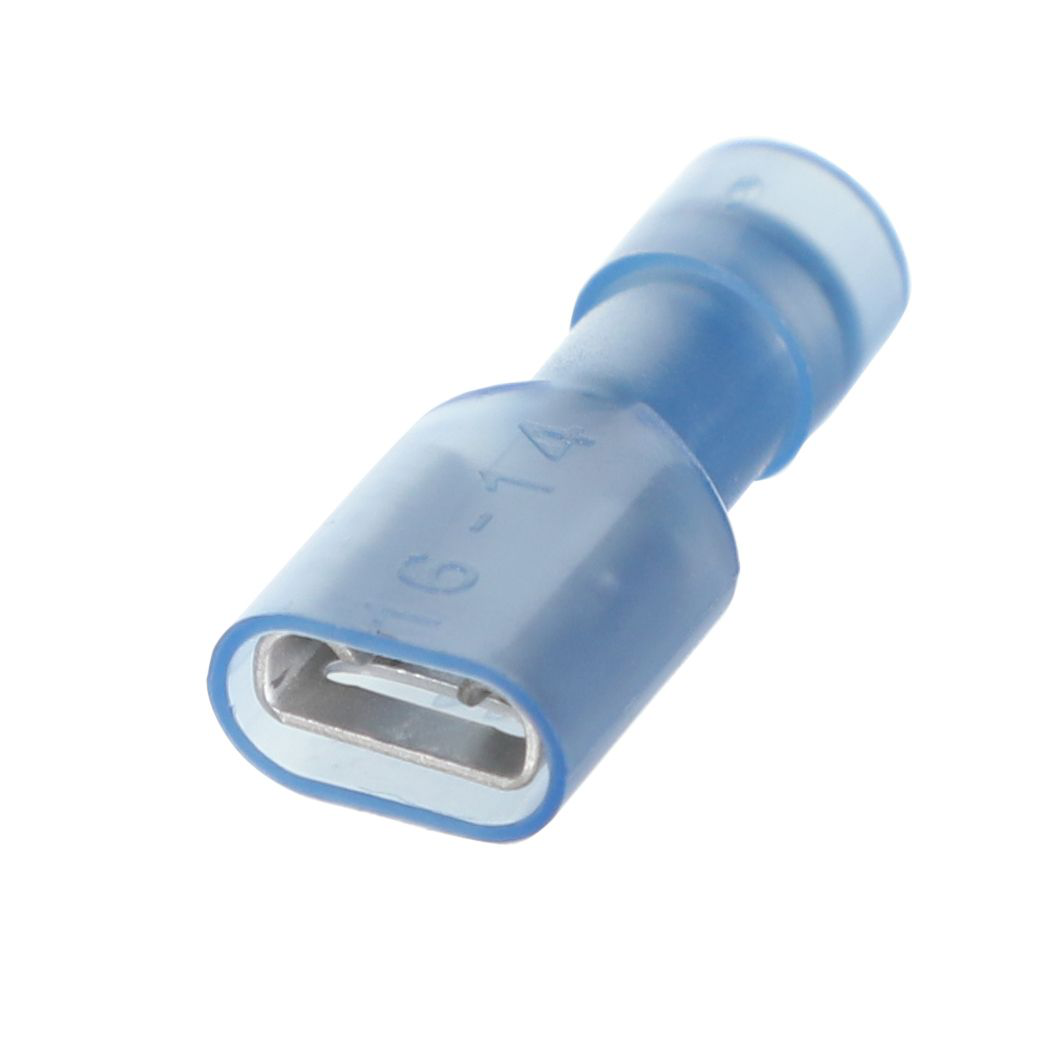

The DIVERSITECH 6229 is a fully insulated female slip-on terminal designed for crimped wire connections in electrical wiring applications. The terminal accepts wire gauges in the 16-14 AWG range and features a 0.250 inch tab size for a secure slip-on fit. The vinyl insulation sleeve provides full coverage over the crimp barrel and includes an insulation grip to relieve strain at the connection point. No soldering is required — the terminal crimps directly onto the wire, making termination fast and reliable. Each pack contains 11 terminals. Electricians and low-voltage installers use these terminals in panel wiring, control circuits, and general wiring harness assemblies.

These female slip-on terminals are suited for residential and light commercial electrical work where quick, reliable disconnect connections are needed. Typical applications include control panel wiring, appliance wiring, and field-service repairs where solderless crimped terminations are preferred. The 0.250 inch tab size is a common standard dimension compatible with a wide range of male tab receptacles found in control boards, relays, and terminal strips.

Key Features

• Fully insulated vinyl sleeve with insulation grip for strain relief at the crimp point
• Accepts 16-14 AWG wire range for versatile use across common control and power wiring gauges
• 0.250 inch tab size fits standard male slip-on tab receptacles
• Crimp-style termination eliminates the need for soldering
• Pack of 11 terminals for field service and repair stock

Compatibility

Designed as an OEM-style replacement female slip-on terminal for use with standard 0.250 inch male tab receptacles in residential and light commercial electrical control and wiring applications.

Installation Notes

Installation is performed by licensed electricians or qualified wiring technicians. De-energize all circuits before terminating wires and verify with a meter before handling. Use a calibrated ratcheting crimp tool sized for 16-14 AWG insulated terminals to ensure a full crimp that captures both the wire conductor and the insulation grip. Do not use pliers or non-rated tools as a substitute for a proper crimp tool, as an incomplete crimp can result in a high-resistance or intermittent connection.

Technical Specifications

• Wire Range: 16-14 AWG
• Tab Size: 0.250 inches
• Insulation Type: Vinyl, fully insulated
• Insulation Grip: Yes
• Termination Type: Crimp, solderless
• Quantity per Pack: 11
• UPC: 0780653015261

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 6229
