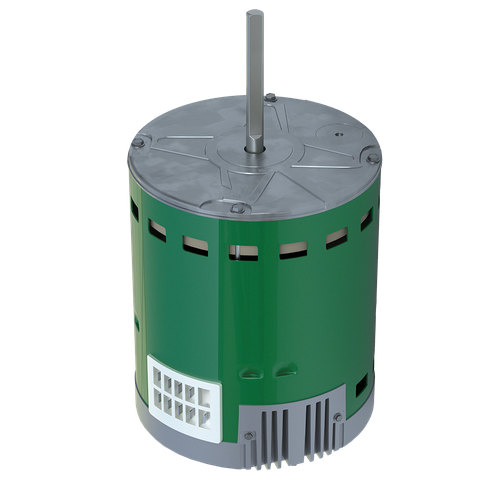

DIVERSITECH 6207E Diversitech Evergreen EM ECM Motor 3/4 HP 208-230V

Product Description

The DIVERSITECH 6207E Evergreen EM ECM motor is a 3/4 horsepower motor suitable for direct drive fan and blower applications. It operates on 208-230 volts and serves as a replacement for OEM constant torque ECM indoor blower motors.

• Pre-programmed for easy integration with OEM harnesses.
• Uses rotation sensing technology to automatically determine motor direction.
• Features soft start and off ramp for quiet operation.

Product Highlights

This motor maintains system efficiency while providing quiet operation.

Product Information

Standard Information

• Brand: DIVERSITECH
• MPN: 6207E

Technical Specifications

• Horsepower: 3/4 hp
• Voltage: 208-230 Volts
• Full Load Amps: 6.0
• Speed: 1200 RPM
• Frame: 48
• Motor Design: ECM
• Application: HVAC/R
• Mounting Type: Band
• Bearings: Ball
• Enclosure Design: Open Air-Over
• Shaft Diameter: 1/2
• Shaft Length: 4-15/16
• Overall Length: 11-1/2
• Ambient Temperature Range: -20 Degrees to 45 Degrees Celsius
• Maximum Ambient Temperature: 40 Degrees Celsius
• Frequency: 60/50 Hz
• Number of Speeds: 5
• Shaft Design: Flat
• Mounting Position: All Angle
• Duty: Continuous
• Phase: 1
• Insulation Class: B
• Frame Material: Rolled steel
