Diversitech 620-14-2 Non-metallic Sheathed Cable 600V (14 AWG, 2 Conductor, 250 ft)

Product Description

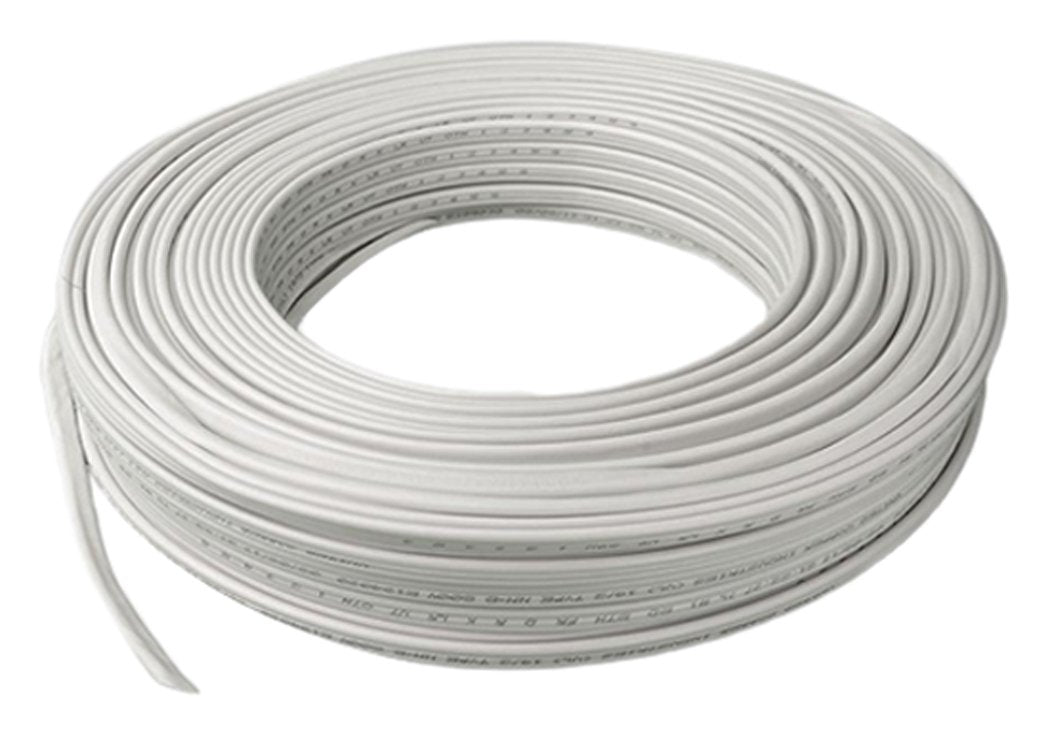

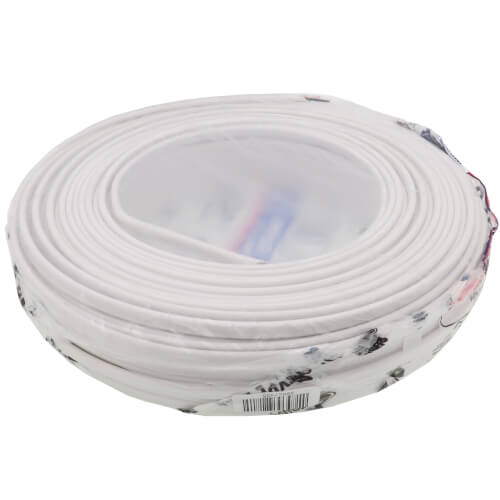

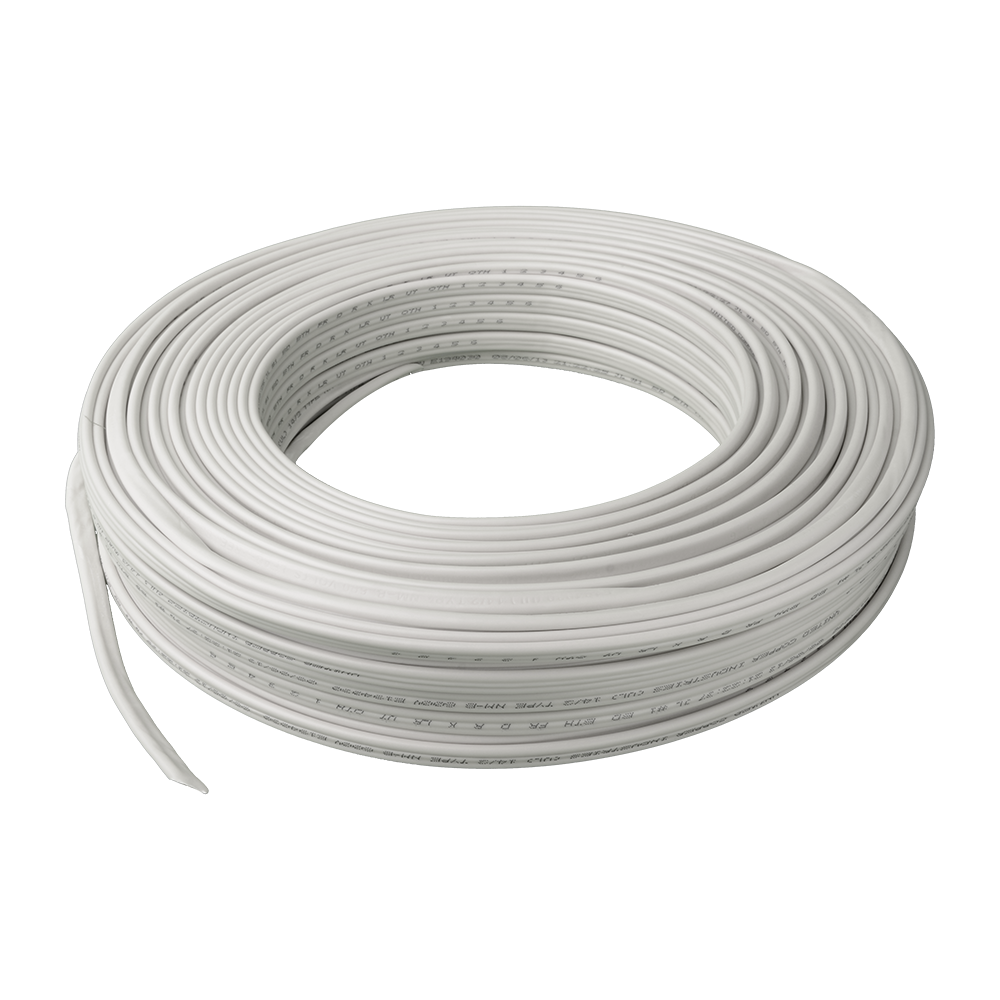

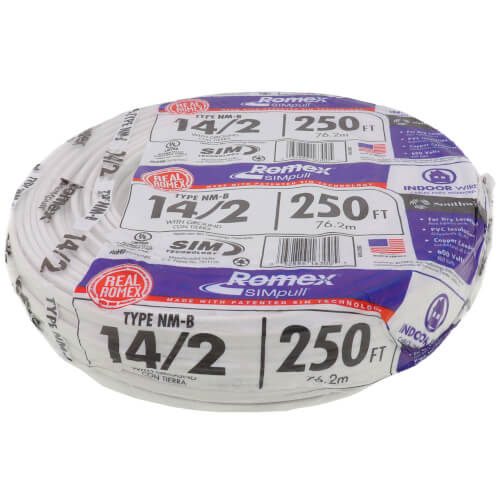

DiversiTech 620-14-2 is a non-metallic sheathed cable (Romex) with 14 AWG copper conductors in a 2-conductor configuration supplied on a 250 ft coil. It is rated 600 V and uses PVC-insulated, color-coded conductors with a PVC outer jacket. The cable is U.L. listed to 719 Federal Specification J-C94 and is specified for building wiring and HVAC replacement applications, and is flame and moisture resistant.

• 14 AWG copper conductors in a 2-conductor configuration, 250 ft coil
• 600 V rated non-metallic sheathed cable (NM-B) with PVC insulation and outer jacket
• U.L. listed to 719 Federal Specification J-C94; flame and moisture resistant and easy to pull and strip

Product Highlights

14 AWG NM-B non-metallic sheathed cable, 600 V, 250 ft, PVC-insulated copper conductors, U.L. listed J-C94

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 620-14-2
• Country of Origin: United States

Technical Specifications

• Brand: DiversiTech
• Manufacturer: DiversiTech
• MPN: 620-14-2
• Wire Gauge: 14 AWG
• Conductors: 2
• Length: 250 ft
• Wire Type: Non-metallic sheathed cable (NM-B / Romex)
• Voltage Rating: 600 V
• Conductor Material: Copper
• Insulation Material: PVC
• Jacket Color: White
• Certifications: U.L. listed to 719 Federal Specification J-C94
• Weight: 6441 g
• Intended Application: Building wiring; HVAC replacement wiring
• Country of Origin: United States
