Diversitech 6185 Terminal Block 20A-250V 10-Position

Product Description

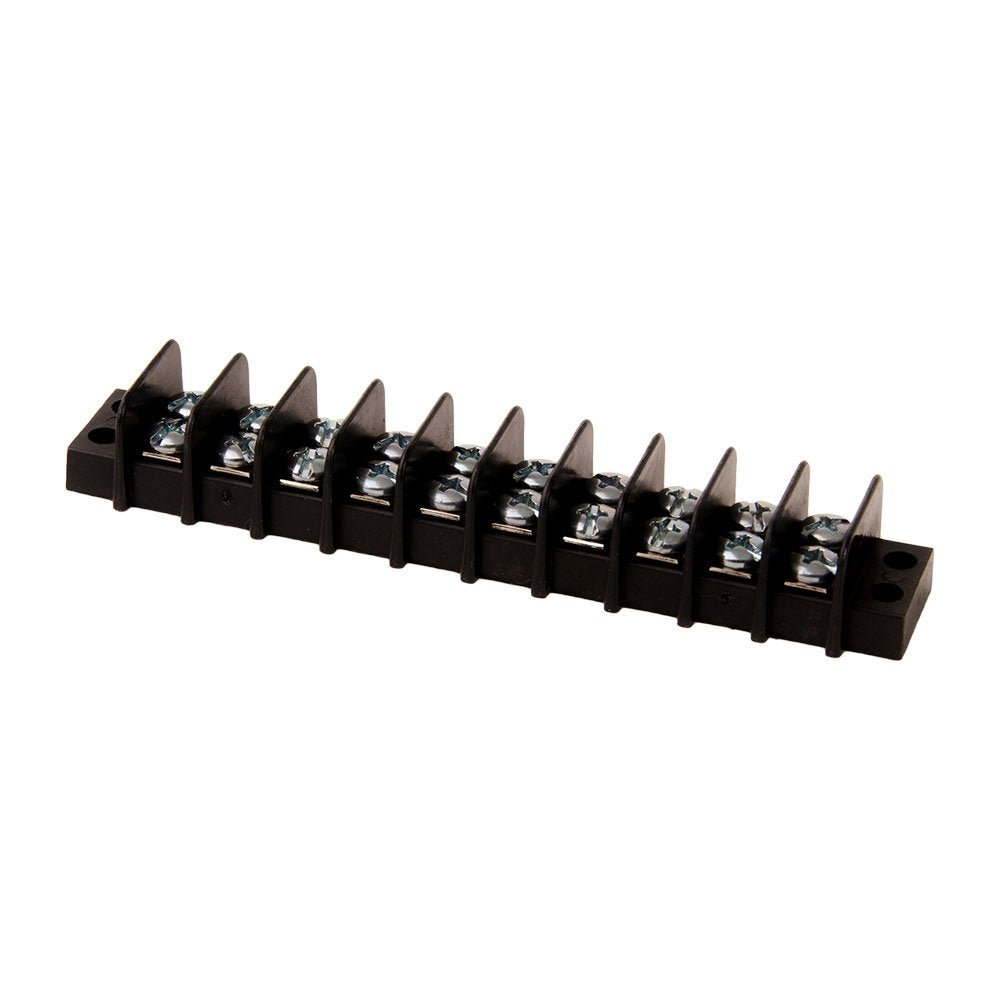

The DIVERSITECH 6185 terminal block is a 10-position block rated for 20A and 250V. Constructed of high barrier thermoplastic, this terminal block accepts 22 to 14 AWG wire and features a #6-32 screw size. It is suitable for low voltage electrical connections.

• 10 Positions
• Accepts 22 to 14 AWG wire
• Thermoplastic Housing

Product Highlights

The DIVERSITECH 6185 terminal block provides a reliable connection for a range of low voltage applications.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 6185
• Country of Origin: United States

Technical Specifications

• Type: Terminal Block
• Series-Brand: 6180 Series
• Positions: 10
• Length (in): 4.41
• Width (in): .88
• Screw Size: 6-32
• Max. Wire Size: 22-14
• Brand: DIVERSITECH
• Voltage Rating: 250 V AC
• Current Rating: 20 Amp
• Terminal Type: Screw
• Wire Size: 22 to 14 AWG
• Housing Material: Thermoplastic
• Approval: UL
• Number of Positions: 10
• Length: 4.41 Inch
• Product Type: TERMINAL_BLOCK
• Manufacturer: Diversitech
• Model / MPN: 6185
• Volts: 250
• Product Length: 4.41 in.
• Amps: 20
• Wire Range: 22 - 14
• Connector Type: Screw
• Number Of Contacts: 10
• Voltage: 250 Volts
• Series: 6180 Series
• Amperage Rating: 20 A
• Material: Thermoplastic
