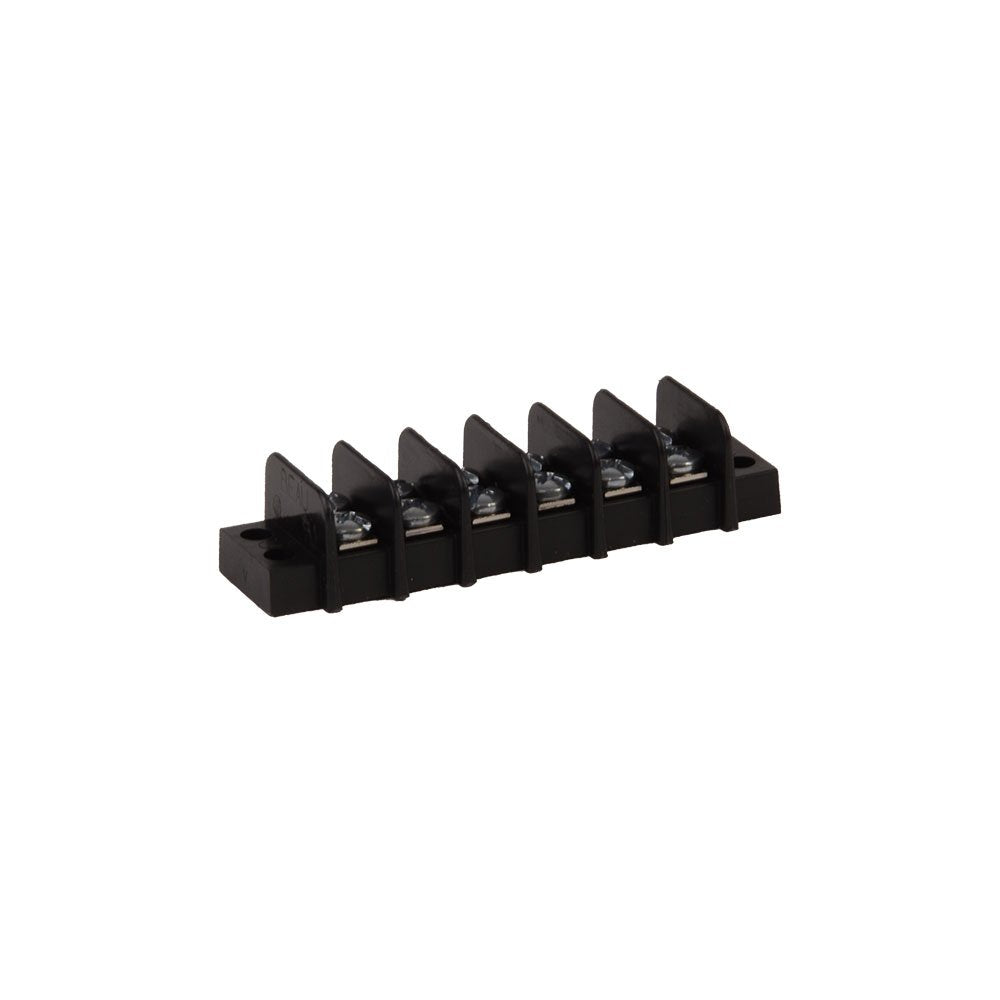

Diversitech 6183 Terminal Block 20A-250V 6 pos

Product Description

The Diversitech 6183 Terminal Block provides a secure connection for electrical circuits. Rated at 20A and 250V, this six-position terminal block is suitable for a range of applications. It is designed for 22 to 14 AWG wire and features a thermoplastic housing material.

• Terminal Block
• 20A-250V
• 6 Positions

Product Highlights

The Diversitech 6183 terminal block ensures reliable electrical connections with its robust design and ease of installation.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 6183
• Country of Origin: United States

Technical Specifications

• Measurement System: Imperial
• Batteries Included?: No
• Batteries Required?: No
• Included Components: spade-terminals
• Item Model Number: 6183
• Part Number: 6183
• Type: Terminal Block
• Voltage: 250 Volt
• Series-Brand: 6180 Series
• Positions: 6
• Length (in): 2.91
• Width (in): .88
• Screw Size: #6-32
• Max. Wire Size: 22-14
• Current Rating: 20 Amp
• Block Width: 0.88 Inch
• Terminal Type: Screw
• Wire Size: 22 to 14 AWG
• Housing Material: Thermoplastic
• Approval: UL
• Voltage Rating: 250 V AC
• Amperage Rating: 20 A
• Material: Thermoplastic
• Brand: DiversiTech
• Model / MPN: 6183
• Number of Items: 1.0
• Volts: 250
• Amps: 20
• No. of Positions: 6
• Wire Range: 22 - 14
• Connector Type: Screw
• Number Of Contacts: 6
• Number Of Poles: 6
• Item Number: 6183
• Barrier Style: High
• Finish: Black
• Collection: Devco�
