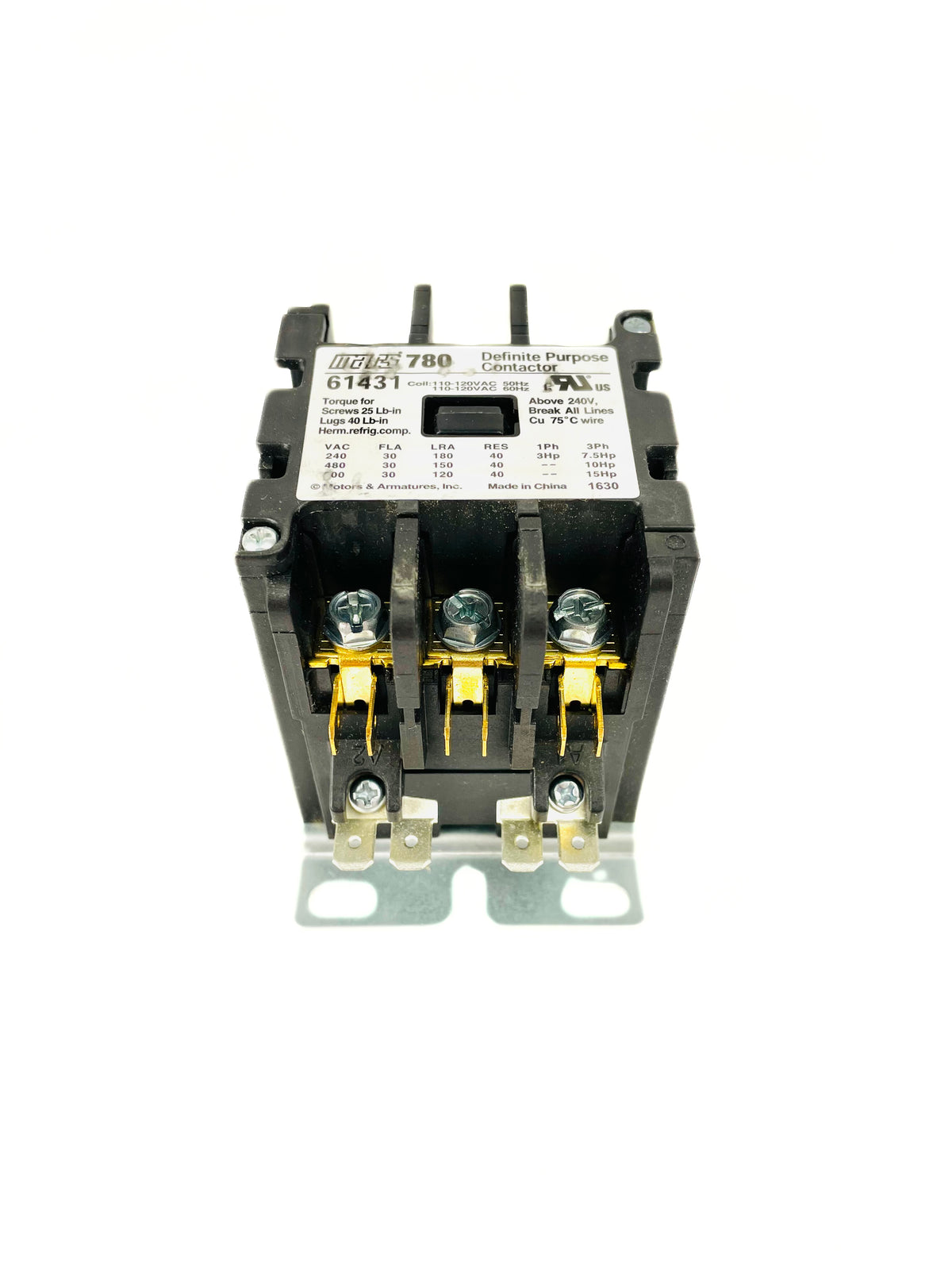

DIVERSITECH 61431 Definite Purpose Contactor 30 Amp 120V

Product Description

The DIVERSITECH 61431 is a 3-pole definite purpose contactor designed for a variety of applications. This contactor is built with an enclosed body to minimize dust and dirt intrusion, thereby enhancing its durability and reliability. It utilizes silver-cadmium oxide contacts for improved contact life, particularly when switching inductive loads. The device is rated for switching voltages up to six hundred VAC and includes screw terminals for straightforward electrical connections.

• Enclosed body design to reduce noise.
• Compatible with MARS 780 and Furnas auxiliary switches.
• Screw terminals for easy termination.

Product Highlights

This contactor is ideal for HVAC systems, providing reliable operation in demanding environments.

Product Information

Standard Information

• Brand: DIVERSITECH
• MPN: 61431

Technical Specifications

• Poles: Three
• Amps: 30
• Coil Voltage: 120 VAC
• Cycle/Hertz: 60 Hz
• Switching Voltage: 600 VAC
• Terminal Connection Type: Screw
• Mounting Type: Plate Mount
• Type: Definite Purpose Contactor
• Switch Action: Normally Open
• Height: 2.7 inches
• Length: 4.7 inches
• Width: 3.6 inches
• Phase: Single
