Diversitech 61332 4 dia mtr 1/20hp 208-230v 1550rpm

Product Description

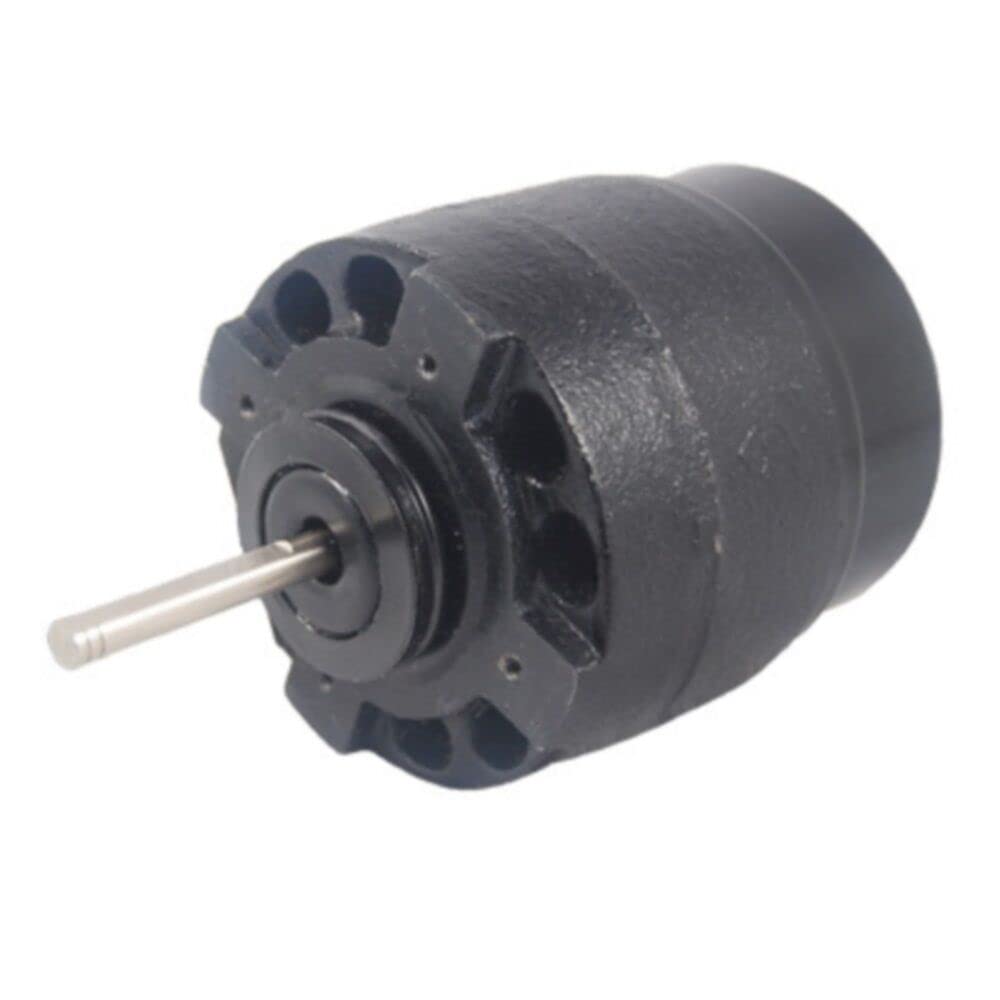

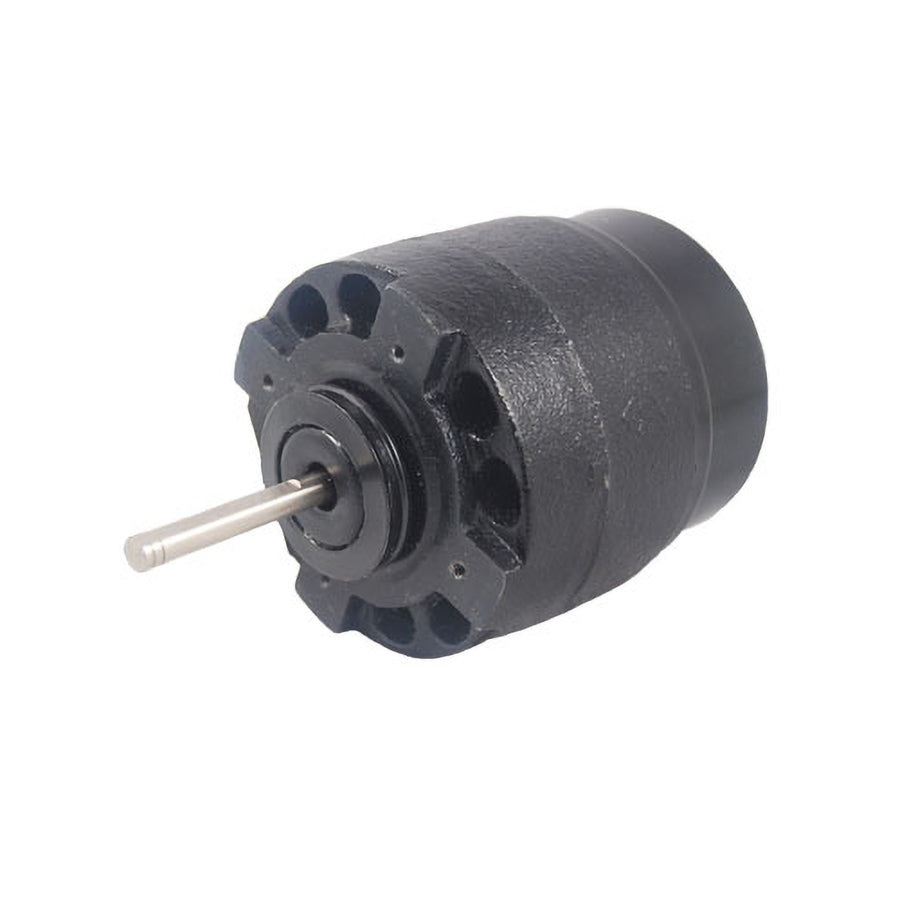

The DIVERSITECH 61332 is a 4-inch diameter, 1/20 HP shaded pole motor designed for refrigeration applications. Operating at 1550 RPM with a 208-230V, 1.10 amp single-phase power supply, it features automatic overload protection and sleeve bearings. This motor is constructed with a cast iron body and an open enclosure, suitable for stud and resilient mounting.

• Replaces GE 11 Frame # 1332, All angle unit bearings
• 60 Hertz, Automatic overload, 2.25 inch resilient rings
• Single speed / single phase, Stud and resilient mounting

Product Highlights

1/20 HP shaded pole motor with automatic overload protection for refrigeration systems.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 61332
• Country of Origin: CHINA

Technical Specifications

• Application: Refrigeration
• Input Voltage: 208-230V
• Current: 1.10 A
• Motor Brand: Packard
• Bearings: Sleeve
• Country of Origin: China
• Diameter: 4 inches
• Enclosure Type: Open
• Horsepower: 1/20 HP
• Frequency: 60 Hz
• Insulation Class: B
• Length (less shaft): 4.82 inches
• Material: Cast Iron
• Motor Rotation: CWLE
• Motor Type: Shaded Pole
• Mounting Type: Stud & Resilient
• NEMA Frame: GE 11
• Overload Protection: Automatic
• Phase: Single
• RPM: 1550
• Shaft Dimensions (Diameter x Length): 5/16 x 2 inches
• Number of Speeds: 1
• UPC: 840899121888
