Diversitech 6010 Genteq Evergreen IM ECM Motors 1 Horse Power 48 Frame

Product Description

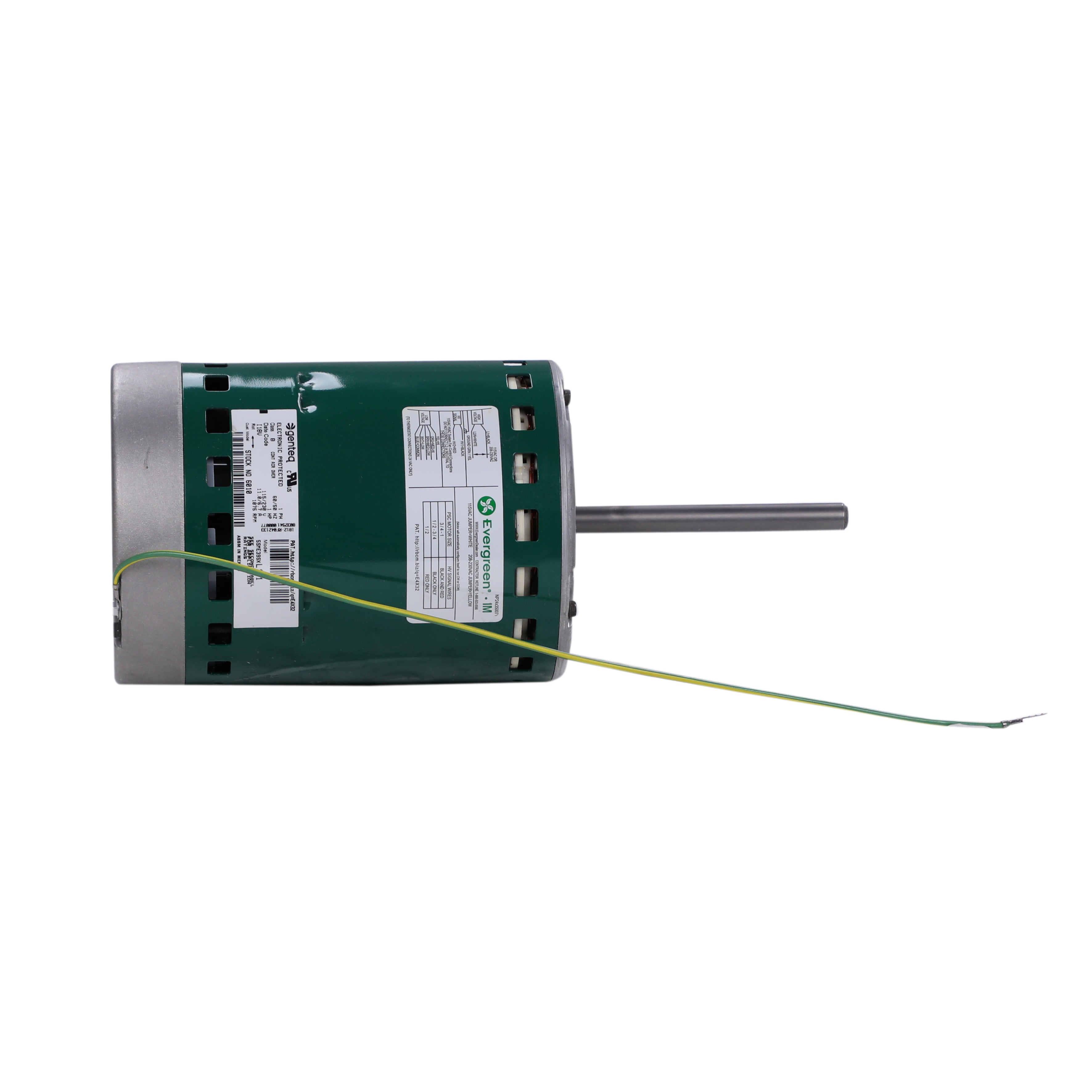

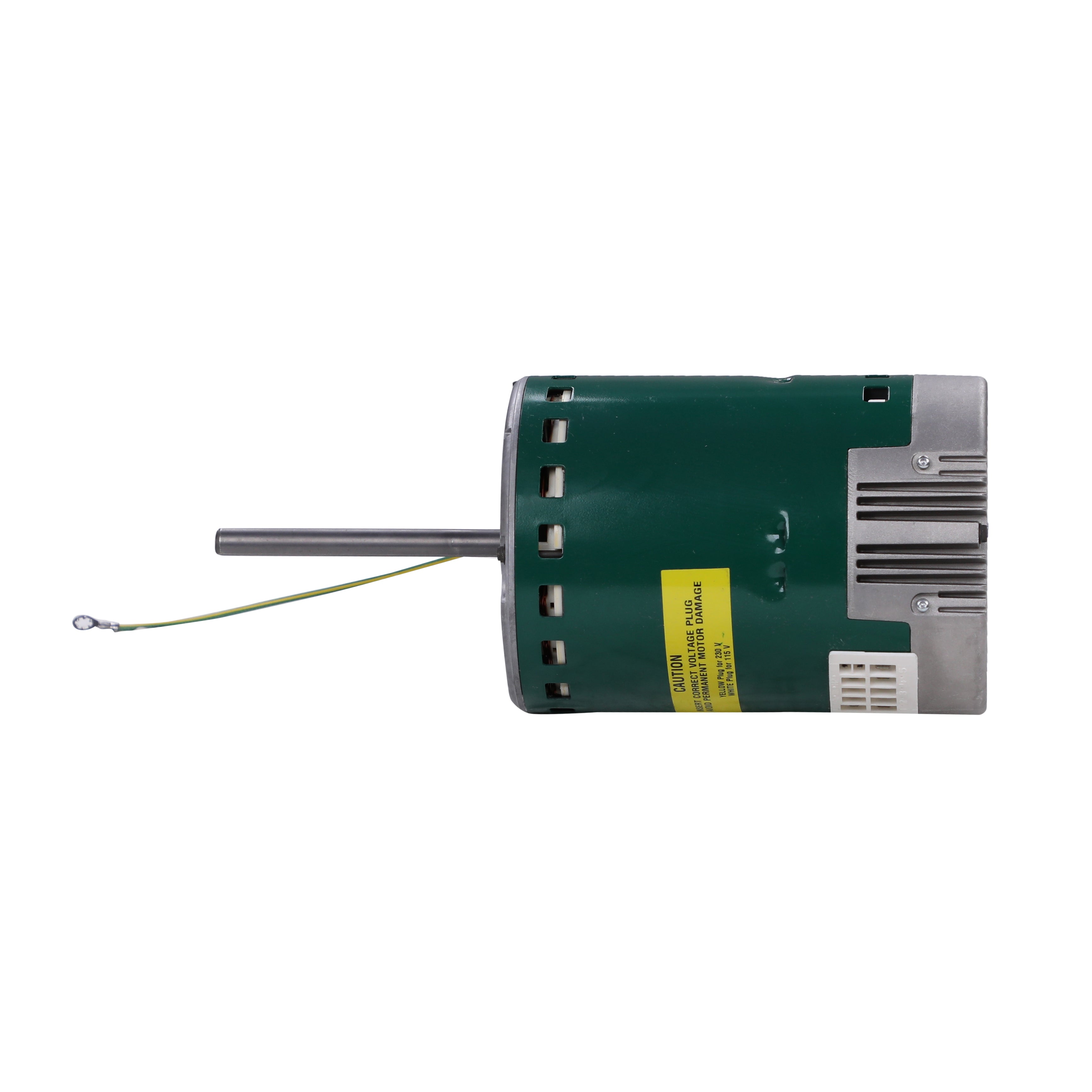

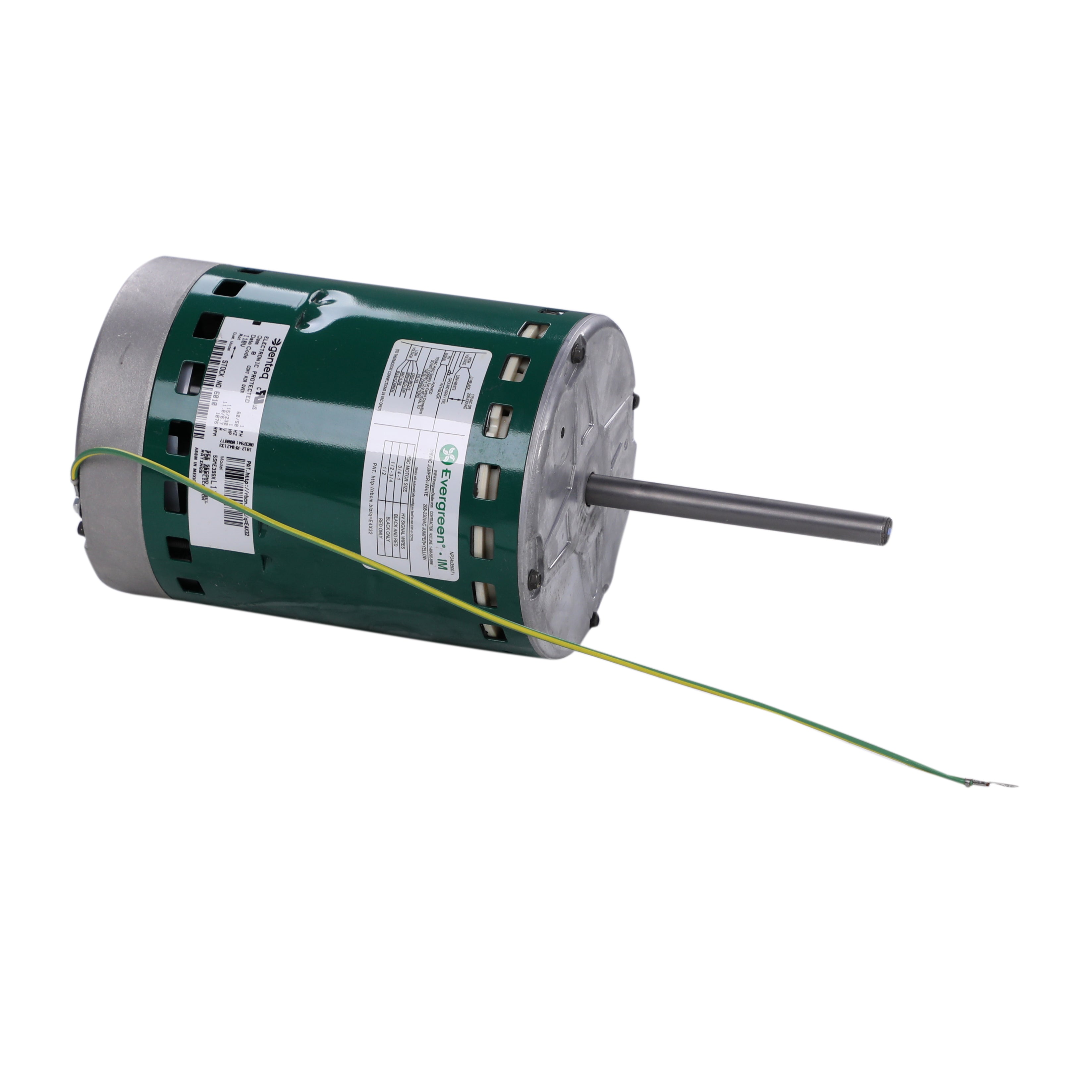

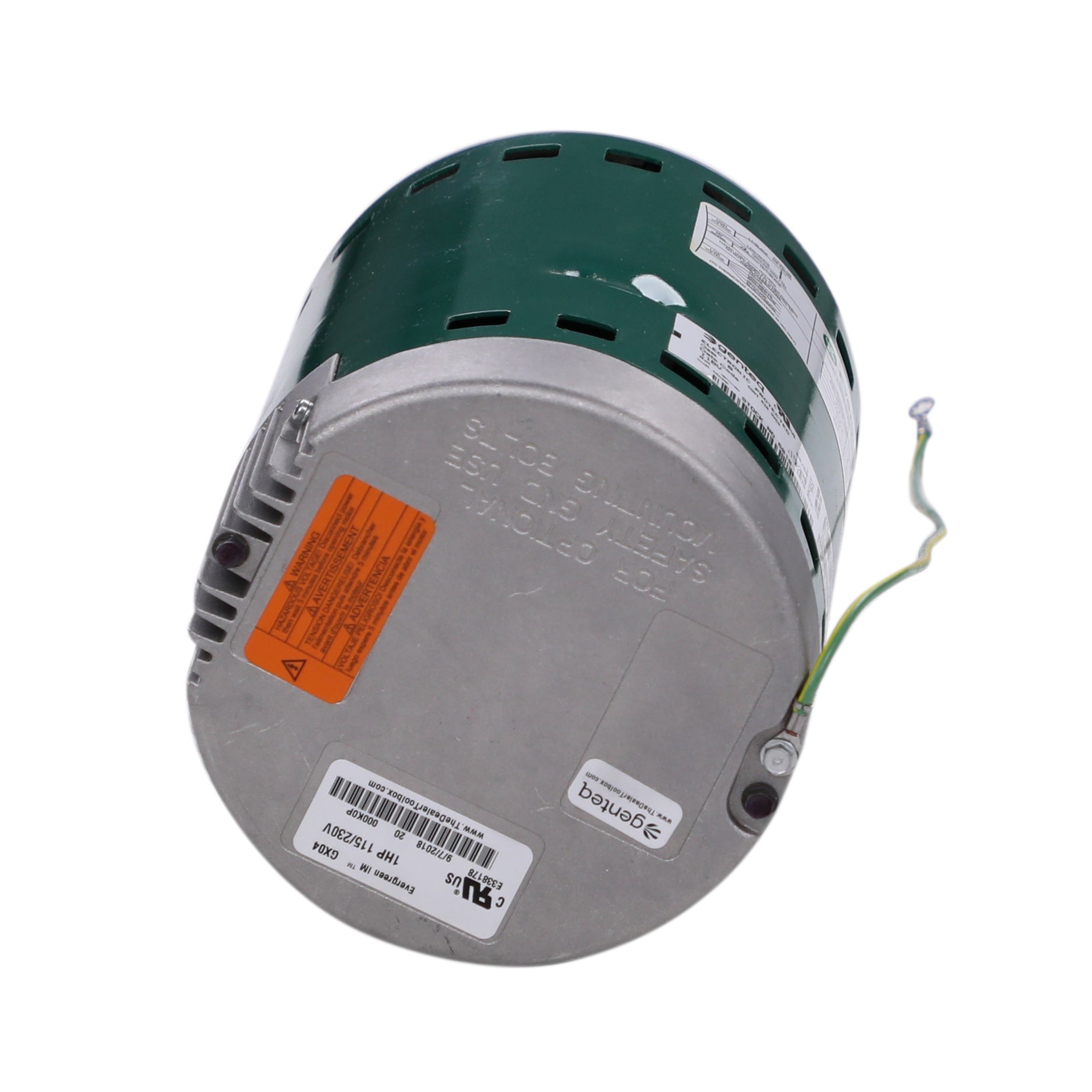

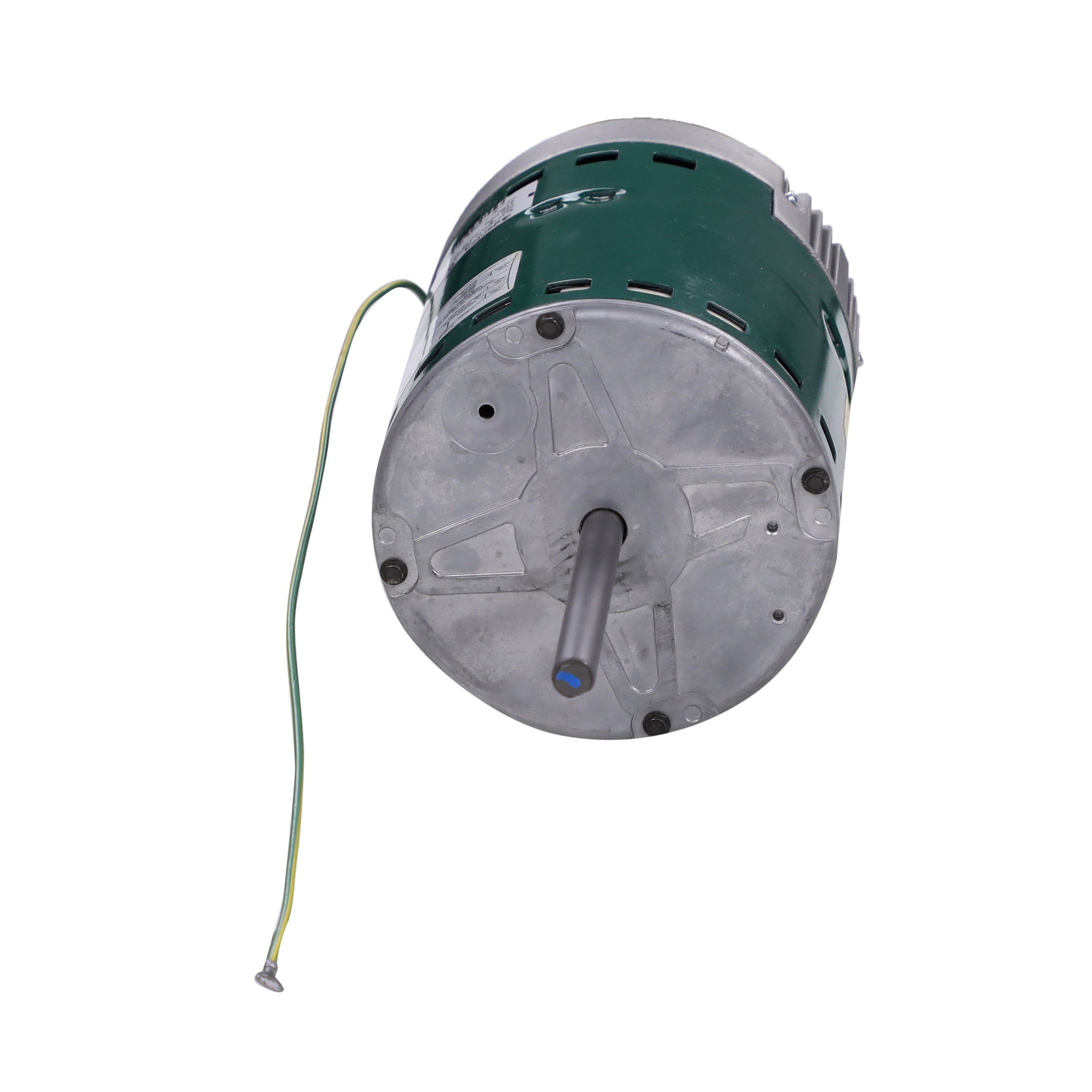

The DIVERSITECH 6010 Genteq Evergreen IM ECM Motor is a 1 Horse Power, 115/208-230V unit designed to replace existing PSC direct drive indoor blower motors. This 48 frame, 5-speed ECM motor operates at 1075 RPM with an 11 Amp current draw. It features a ball bearing, open air over enclosure, and reversible rotation, suitable for ducted applications.

• Designed to replace existing PSC (Permanent Split Capacitor) direct drive indoor blower motors
• Constructed with over 20 years of proven ECM technology and reliability
• Made for DiversiTech branded items

Product Highlights

This ECM motor offers a reliable replacement for PSC direct drive indoor blower motors, featuring 5 speeds and a 48 frame.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 6010

Technical Specifications

• Input Voltage: 115/208-230V
• Horsepower: 1 HP
• Current: 11 Amps
• Bearing Type: Ball
• Enclosure Type: Open Air Over
• Insulation Class: B
• Motor Type: ECM
• Mounting Type: Round
• Rotation: Reversible
• RPM: 1075
• Number of Speeds: 5
• Operating Temperature: 104°F
• Shaft Dimensions: 1/2 in. x 5 in.
• Application: Ducted
• Frame Size: 48
