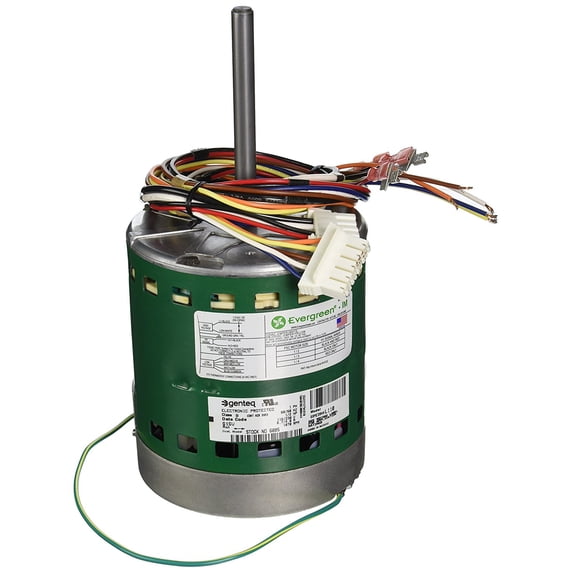

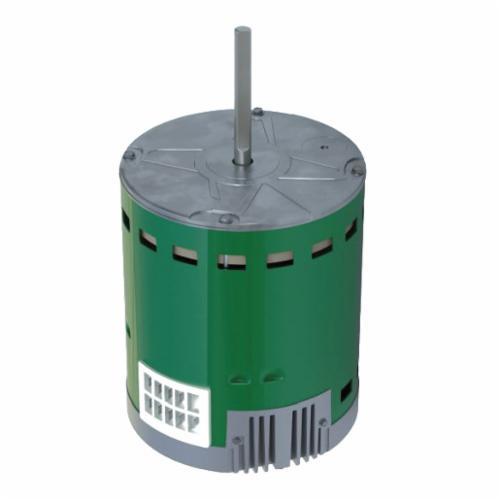

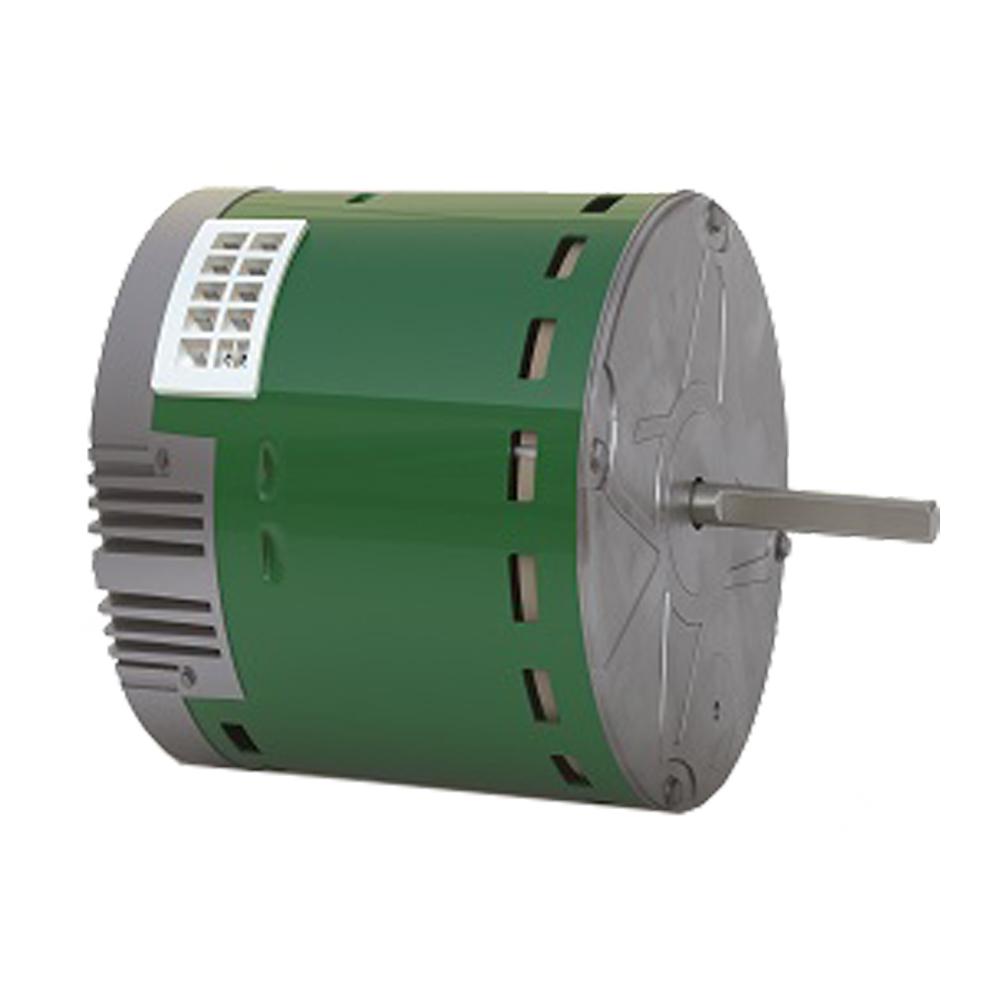

Diversitech 6005 Genteq Evergreen IM ECM Motors 1/2 Horse Power 115/208 - 230V 6.7/4.0 Amps 1075RPM 5 Speed 48 Frame

Product Description

The DIVERSITECH 6005 Genteq Evergreen IM ECM Motor is an Electronic Commutated Motor designed to replace existing Permanent Split Capacitor (PSC) direct drive indoor blower motors. This motor, with a 1/5 horsepower rating, operates at 115/208-230V with 6.7/4.0 Amps and 1075 RPM. It features 5 speeds, a 48 frame, and a round mounting type, constructed with proven ECM technology for reliable performance in ducted applications.

• Reduce truck stock and get the job done
• No capacitors required
• Connects directly to existing relays or circuit boards

Product Highlights

Constructed with over 20 years of proven ECM technology and reliability.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 6005

Technical Specifications

• Input Voltage: 115/208-230V
• Horsepower: 1/5 hp
• Amperage: 6.7/4.0 A
• Bearing Type: Ball
• Enclosure Type: Open Air Over
• Insulation Class: B
• Motor Type: ECM
• Mounting Type: Round
• Rotation: Reversible
• RPM: 1075
• Speeds: 5
• Temperature Rating: 140° F
• Shaft Dimensions: 1/2 in. x 5 in.
• Application: Ducted
• Frame: 48
• Material: Plastic
• Application Type: Fan & Blower Motors
• Dimensions: 5.58 in Dia x 11.26 in L
• Frequency: 50/60 Hz
• Phase: 1
• Series: IM Series
