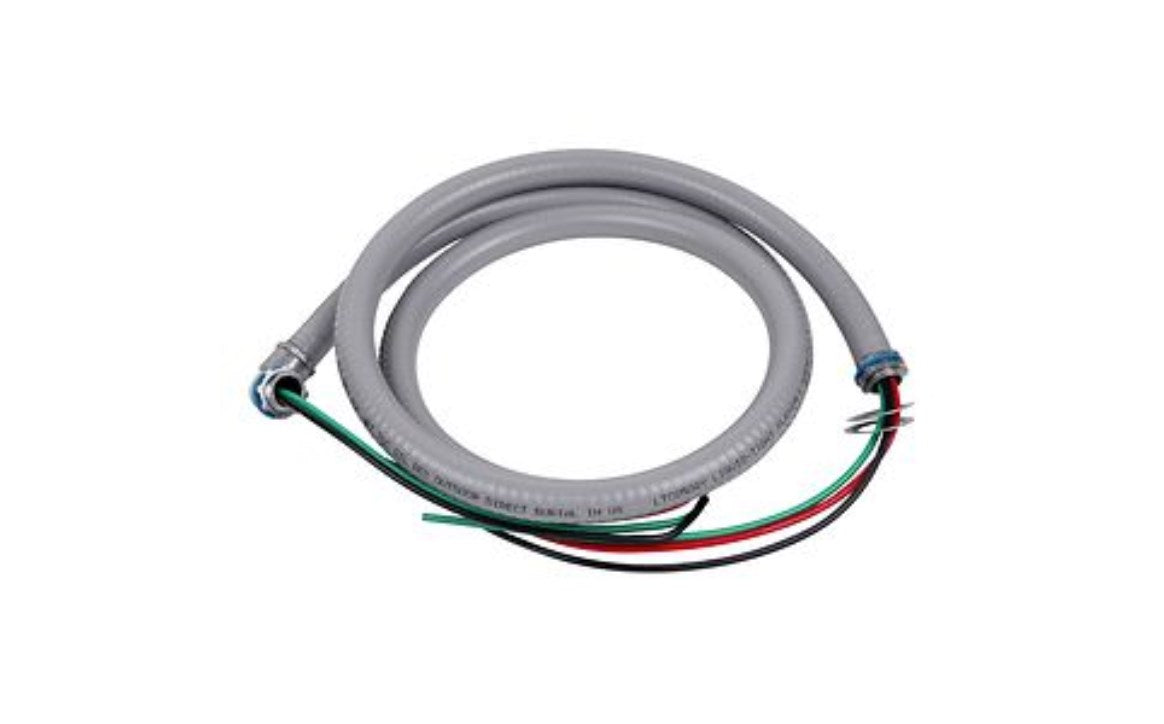

Diversitech 6-12-6 Electrical Whip 1/2 Inch X 6 Feet

Product Description

The DIVERSITECH 6-12-6 is a pre-wired electrical whip assembly designed to provide a flexible, code-compliant final connection between a disconnect box and an air conditioning or heat pump condensing unit. The conduit measures 1/2 inch in diameter and 6 feet in length, giving technicians adequate reach for most standard pad-mount or wall-mount condenser installations. This type of whip is a required component in many residential and light commercial HVAC installations where the NEC mandates a within-sight disconnect at the equipment. Licensed HVAC technicians and electricians are the typical installers.

This whip is suited for residential and light commercial air conditioning and heat pump installations where a flexible conduit connection is needed between the final disconnect and the condensing unit. The 6-foot length accommodates most standard setback distances between a wall-mounted disconnect and a ground-level condenser. The 1/2-inch conduit size is common for circuits serving smaller to mid-range tonnage condensing equipment.

Key Features

• 1/2-inch conduit diameter fits standard knockout fittings on disconnect boxes and condensing units
• 6-foot length provides flexibility for typical pad-mount and wall-mount condenser placements
• Pre-wired assembly reduces field labor and supports faster installation
• Flexible conduit construction allows routing around obstructions in tight equipment clearances
• Designed to support NEC within-sight disconnect requirements at condensing unit installations

Compatibility

Designed as an OEM-style replacement or new-installation whip for residential and light commercial air conditioning and heat pump condensing units requiring a 1/2-inch flexible electrical conduit connection.

Installation Notes

Installation should be performed by a licensed HVAC technician or electrician in accordance with the NEC and applicable local codes. Always disconnect and lock out power at the main panel before making or breaking any wiring connections at the disconnect or condensing unit. Verify that the circuit ampacity and wire gauge inside the whip are appropriate for the equipment nameplate specifications before energizing. Secure the conduit along its run to prevent abrasion or movement against sharp edges.

Technical Specifications

• Conduit Diameter: 1/2 inch
• Length: 6 feet
• Product Type: Electrical Whip

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 6-12-6
