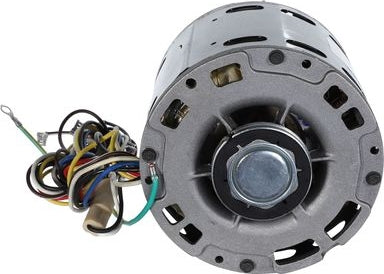

Diversitech 5460 Rescue PSC Blower Motor 1/6-1/2 HP 1,075 RPM 115V 1 ph

Product Description

The DIVERSITECH 5460 RESCUE PSC Blower Motor is a direct drive motor designed for service technicians. Its multi-horsepower capability allows it to replace a variety of motors with different ratings. This 4-speed motor is built for furnace and air handler applications and features an open air over (OAO) enclosure. It has reversible rotation and multiple mounting options.

• Versatile direct drive motor
• Multi-horsepower capability
• 4-speed motor

Product Highlights

This motor is designed for furnace and air handler applications. Features an open air over (OAO) enclosure, reversible rotation, and multiple mounting options.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 5460

Technical Specifications

• Amperage Rating: 5.8 A
• Bearing Type: Sleeve
• Depth: 10.8 in
• Enclosure Type: OAO
• For Use With: Air Handler~Furnace
• Function Type: Blower Motor
• Height: 5.625 in
• Motor HP: 1/6~1/2 HP
• Motor RPM: 1,075 RPM
• Motor Type: PSC
• NEMA Frame Size: 48
• Number of Shafts: 1
• Number of Speeds: 4
• Package Quantity: 1
• Phase: 1 ph
• Product Family: RESCUE
• Rotation Direction: Reversible
• Service Factor: 1.00
• Shaft Diameter: 0.5 in
• Shaft Length: 5 in
• Voltage Rating: 115 V
• Width: 5.625 in
