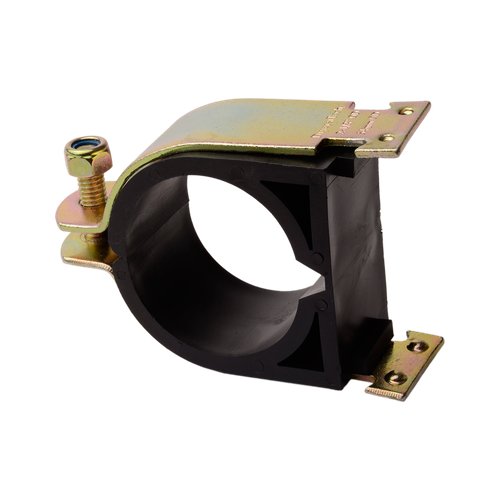

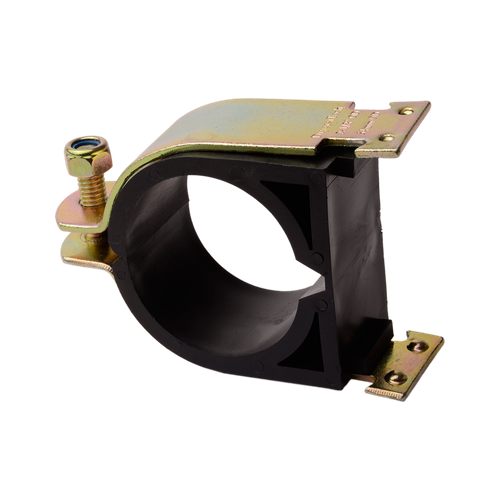

Diversitech 538-2-1/8 cushion clamp 2 1/8

Product Description

The Diversitech 538-2-1/8 is a 2-1/8 inch cushion clamp designed to secure refrigerant lines, tubing, or pipe to standard strut. It provides vibration isolation and protection from dissimilar metals. The polymeric grommet withstands temperatures from -25°C to 125°C and resists most oils, chemicals, and industrial cleaning compounds, making it suitable for indoor use.

• Secures refrigerant lines, tubing or pipe to standard strut
• Provides vibration isolation and protection from dissimilar metals
• Clamp is made from durable steel with electro-dichromate finish to resist corrosion

Product Highlights

Durable cushion clamp for securing refrigerant lines, offering vibration isolation and chemical resistance.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 538-2-1/8

Technical Specifications

• Application: Insulated Refrigerant Tubing, Non Insulated Refrigerant Tubing
• Material: Electro-Dichromate Steel, Rubber
• Operating Temperature: -25°C - 125°C
• Mounting Method: Strut
• Indoor / Outdoor Use: Indoor
• UL Listed: No
• Plenum Rated: No
• Ducted or Ductless: Neither Ducted nor Ductless
• Size: 2 1/8 in
• Type: Cushion Clamp
