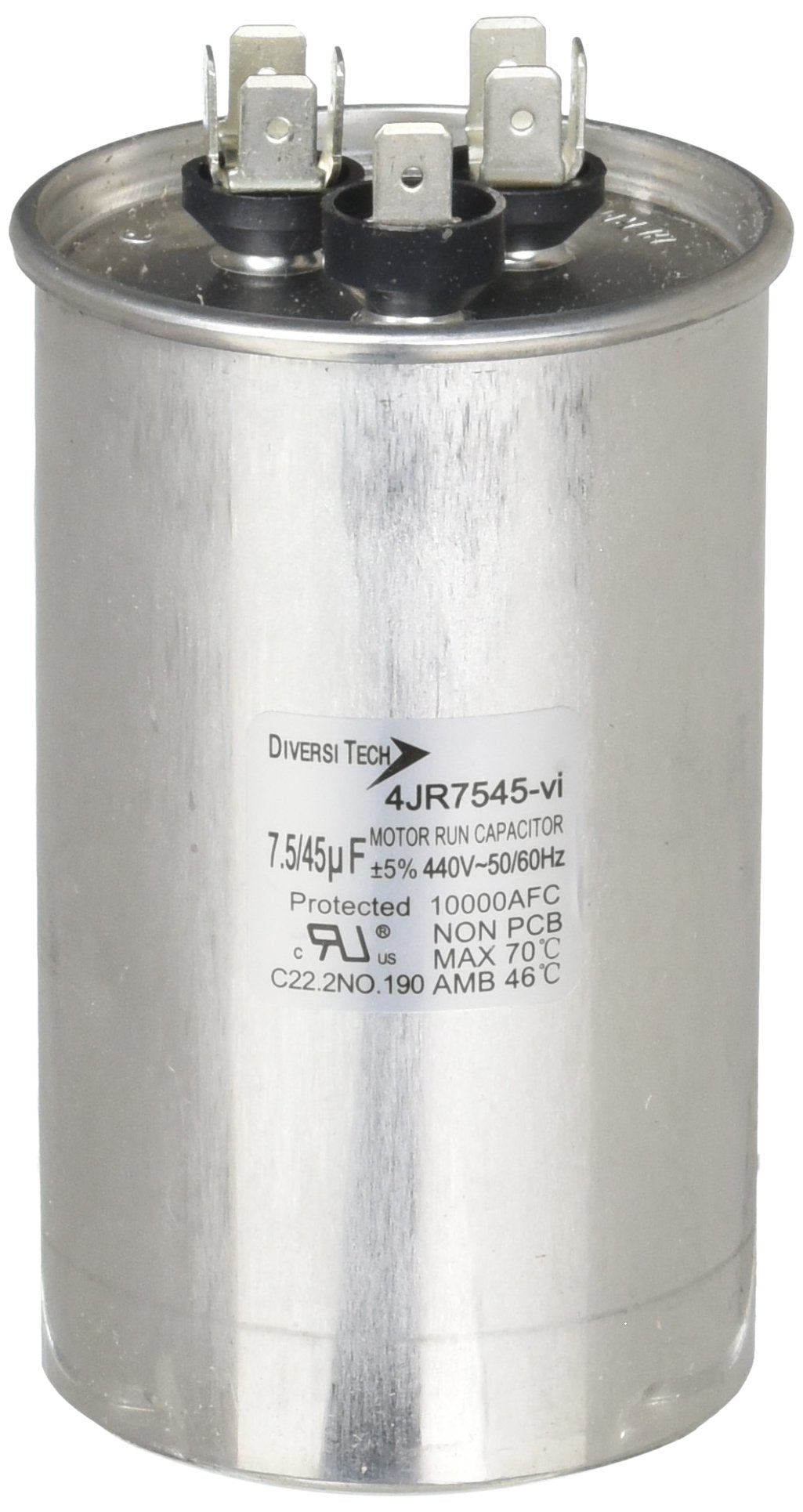

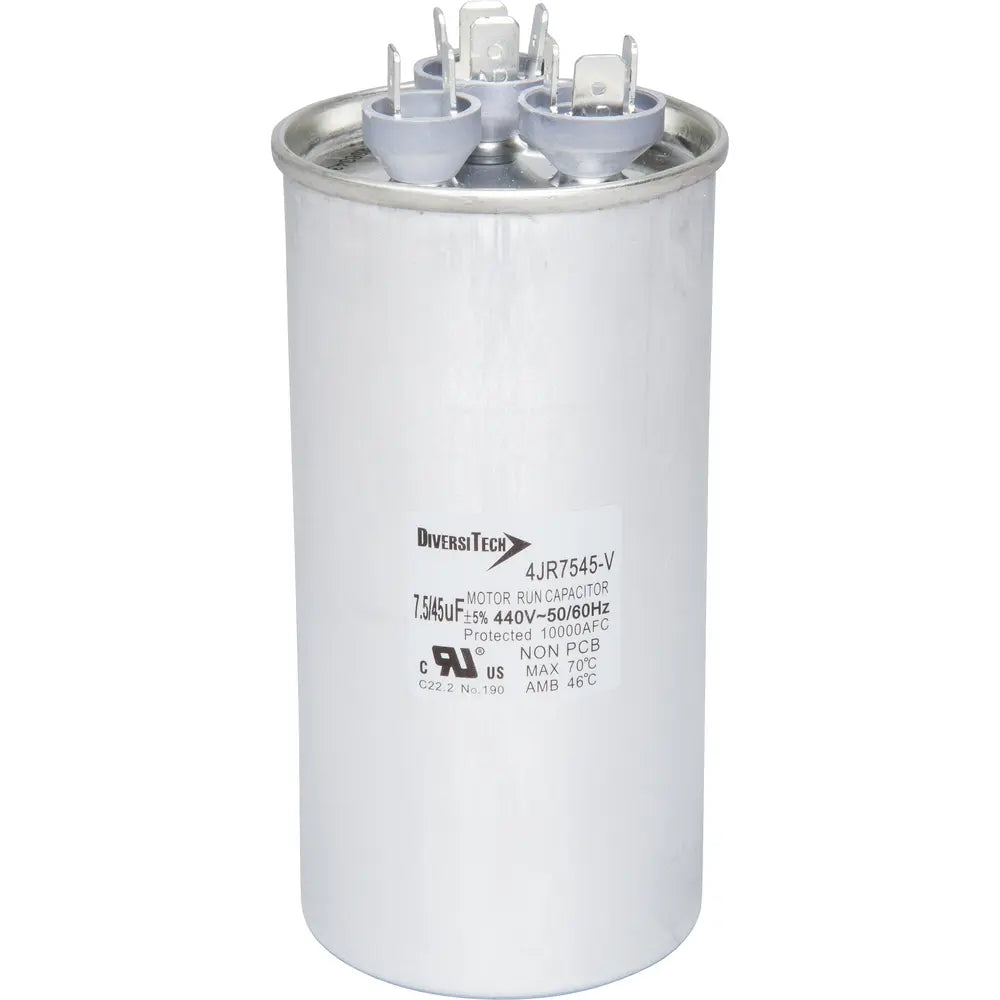

Diversitech 4JR7545 Motor Run Capacitor 440 VAC 45+7.5µF

Product Description

The Diversitech 4JR7545 motor run capacitor is rated for 440 VAC and has a capacitance of 45+7.5µF. This capacitor is designed for continuous run and is guaranteed for over 10,000 hours of life with a rated frequency of 50/60 Hz. It meets 10,000 AFC safety requirements per UL-810.

• Rated frequency of 50/60 Hz
• Permissible temperature range: -40°C to +70°C
• 1/4” quick connect terminal

Product Highlights

The Diversitech 4JR7545 is a durable motor run capacitor with a round shape, suitable for HVAC applications.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 4JR7545
• Country of Origin: CN

Technical Specifications

• Type: HVAC Capacitors
• Shape: Round
• Capacity: 45+7.5µF
• Voltage Rating: 440 VAC
• Rated Frequency: 50/60 Hz
• Applied Standard: UL-810; CSA22.2 No190, IEC60252
• Capacitance Tolerance: +/-5%
• Permissible Temperature: -40°C to +70°C
• Withstanding Voltage test Between Terminals: Rated Voltage X 1.75VAC, 10sec
• Withstanding Voltage test Between Terminals and Case: Rated Voltage X 2+1000VAC, 60sec
• Maximum Permissible Voltage: 110% of the rated voltage
• Maximum Permissible Current: 130% of the rated current
• Oil Filled: Non PCB
• Terminal: 1/4” quick connect terminal
• Case Material: Metal
