Product Description

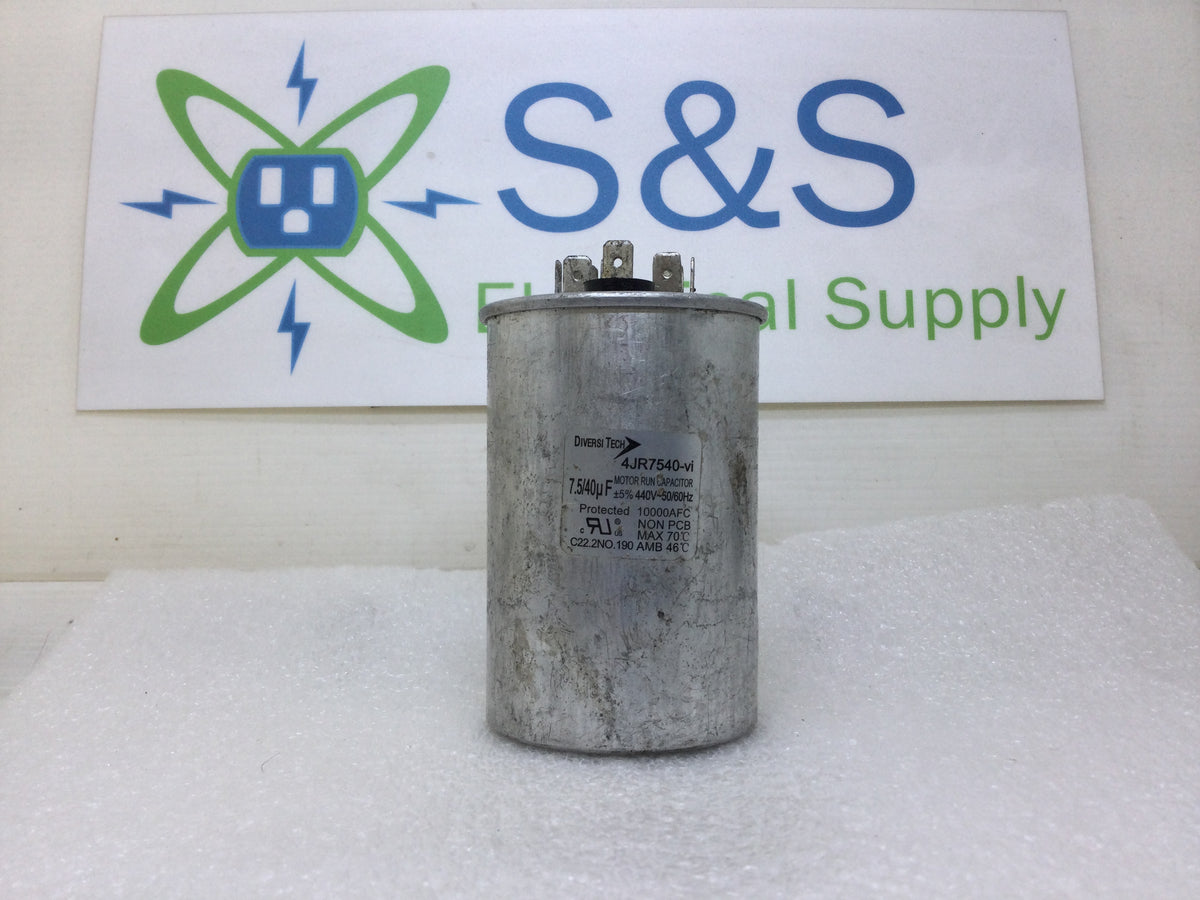

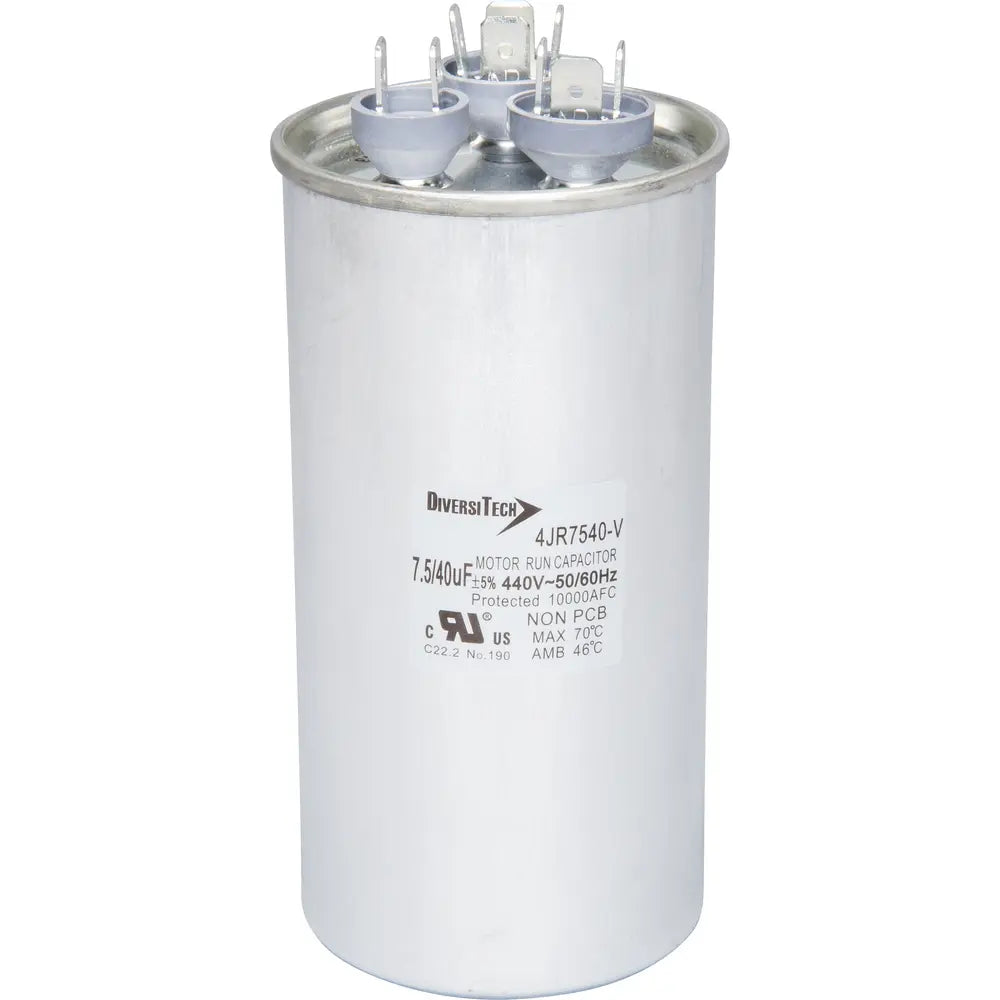

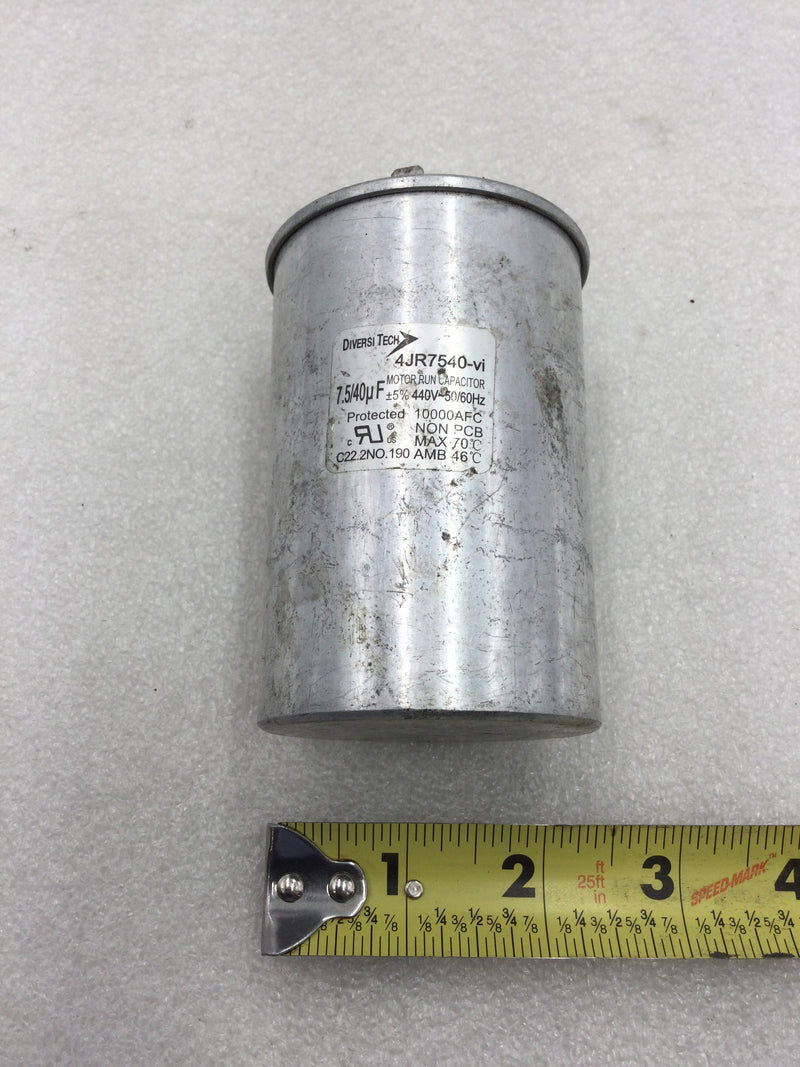

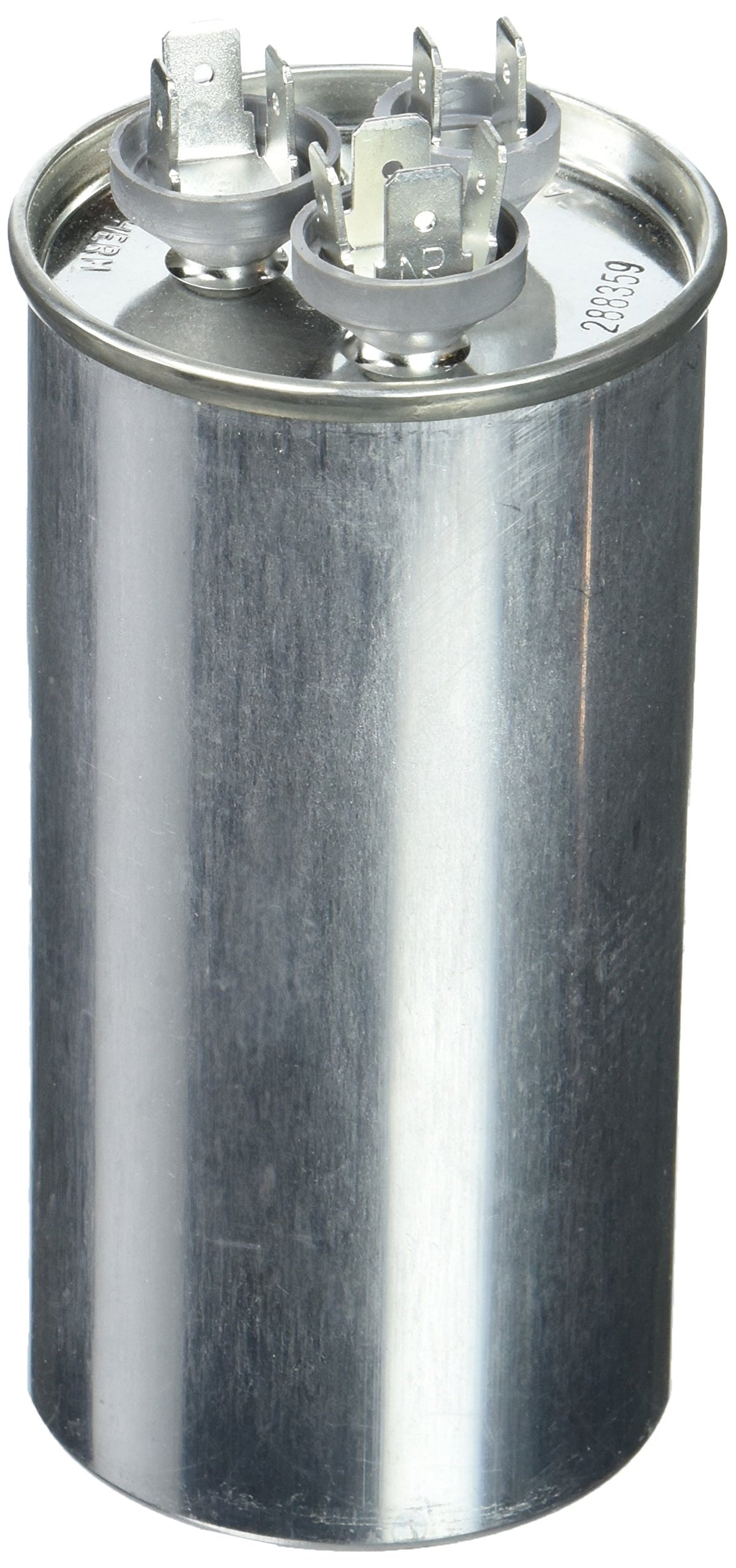

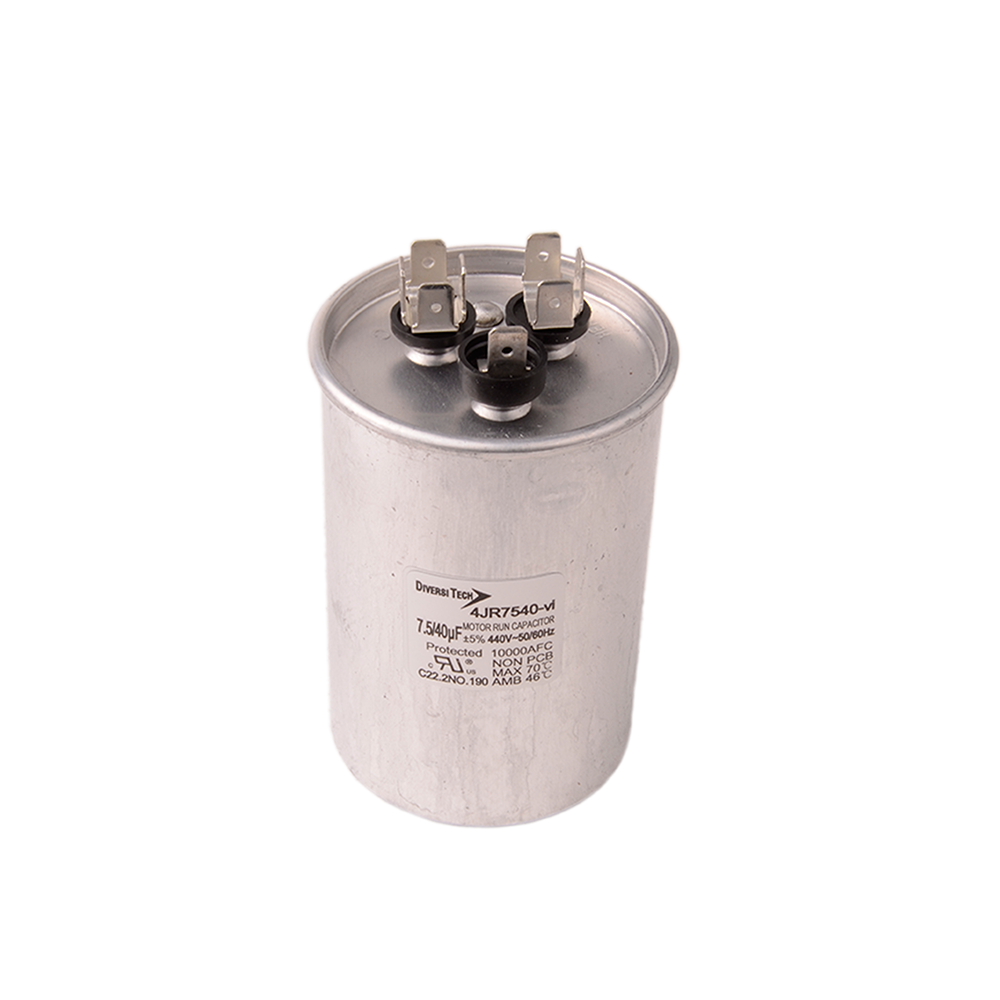

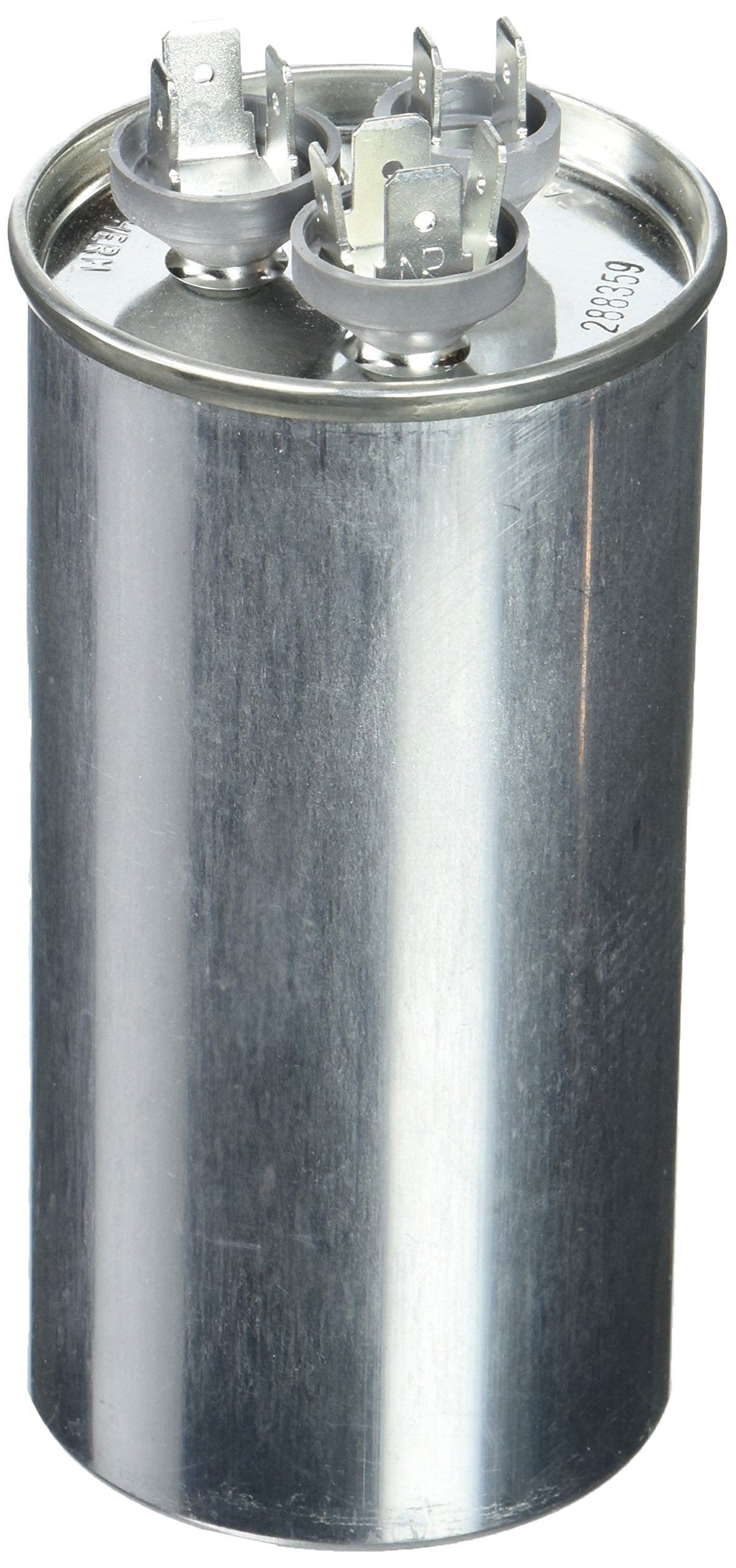

The DiversiTech 4JR7540 motor run capacitor is durable and dependable, designed for continuous operation. This capacitor is rated for 50/60 Hz and guaranteed for over 10,000 hours of life under normal operating conditions. It is oil filled, non PCB, and features a 1/4” quick connect terminal.
- Guaranteed for 10,000 hours of life under normal operating conditions
- Operating life of 94% at 60,000 hours
- Individually Packaged
Product Highlights
This DiversiTech capacitor is a reliable choice for HVAC systems, ensuring long-lasting performance and safety with its robust design and adherence to UL-810 and CSA standards.
Product Information
Standard Information
-
Brand: DIVERSITECH
-
Manufacturer Part Number: 4JR7540
-
Country of Origin: CN
Technical Specifications
-
Type: HVAC Capacitors
-
Shape: Round
-
Capacity: 40+7.5µF
-
Standard: UL-810; CSA22.2 No190, IEC60252
-
Voltage Rating: 440 VAC
-
Rated Frequency: 50/60 Hz
-
Capacitance Tolerance: +/-5%
-
Permissible Temperature: -40°C to +70°C
-
Withstanding Voltage test Between Terminals: Rated Voltage X 1.75VAC, 10sec
-
Withstanding Voltage test Between Terminals and Case: Rated Voltage X 2+1000VAC, 60sec
-
Maximum Permissible Voltage: 110% of the rated voltage
-
Maximum Permissible Current: 130% of the rated current
-
Oil Filled: Non PCB
-
Terminal: 1/4” quick connect terminal
-
Manufacturer: Diversitech
-
Model #: 4JR7540
-
Hertz: 50/60
-
Protected: Non PCB
-
Temperature Max: 70° C
