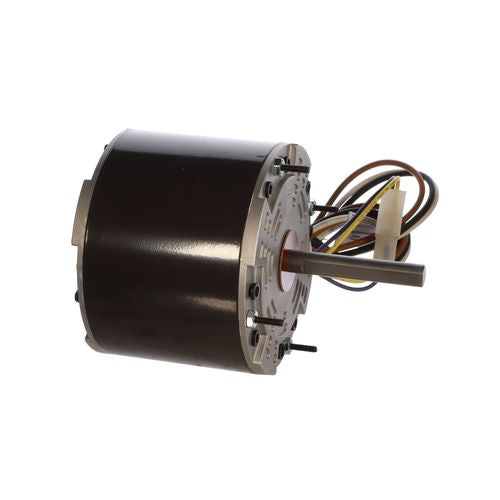

Diversitech 49723 Multi Horsepower 42 Frame Condenser Fan Motor 1/4-1/6 HP, 208-230V, Mutiple Mounting Options

Product Description

The DIVERSITECH 49723 multi horsepower 42 frame condenser fan motor provides a versatile replacement for OEM motors. It covers horsepower ratings from 1/4-1/6 and features different bolt circle options for stud mounting. The motor operates at 208-230V and 60Hz, with a reversible rotation and a single speed of 1075 RPM. It has a totally enclosed enclosure and utilizes a ball bearing design.

• Versatile Mounting Options
• Ball bearing design
• Reversing Plug

Product Highlights

Versatile replacement motor with multiple mounting options, ball bearing design, and reversing plug.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 49723

Technical Specifications

• Hertz: 60
• Amps: 1.5
• Bearing: Ball
• Body Diameter ( in.): 5
• Capacitor: 7.5/370
• Enclosure: Totally Enclosed
• Insulation Class: B
• Motor Type: Permanent Split Capacitor
• Rotation: REVERSIBLE
• RPM: 1075
• Speeds: 1
