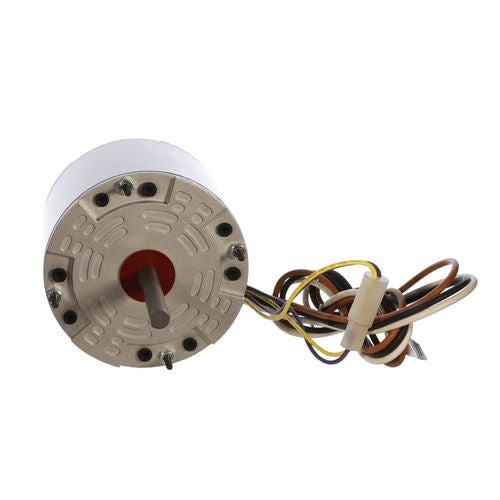

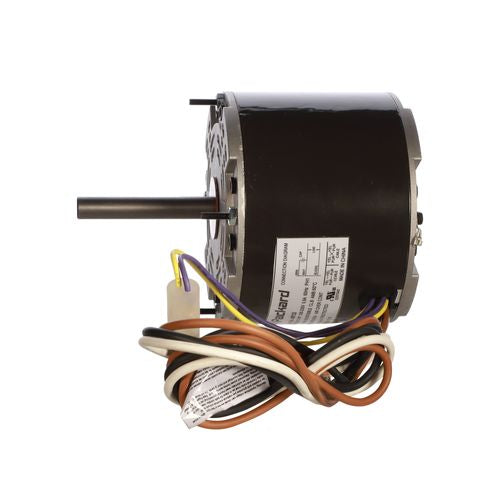

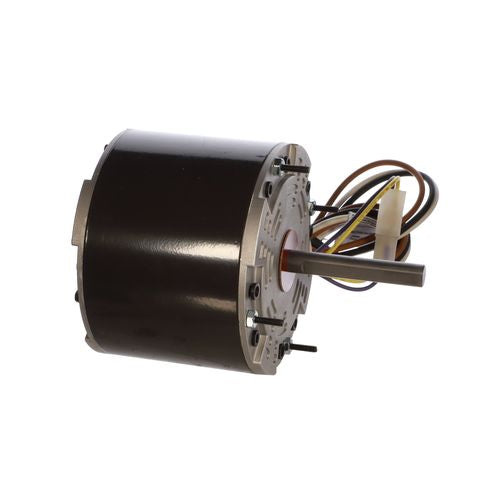

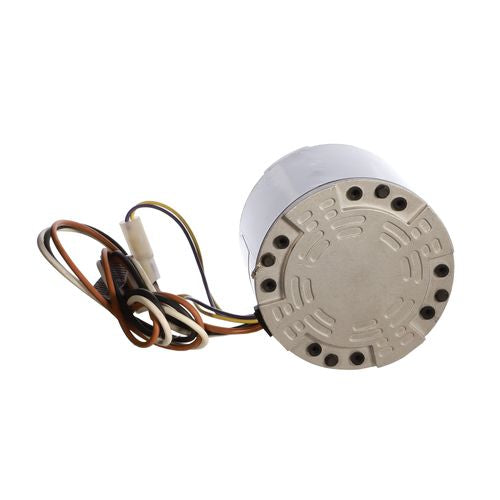

Diversitech 49722 Multi Horsepower 42 Frame Condenser Fan Motor 1/8-1/12 HP

Product Description

The DIVERSITECH 49722 Multi Horsepower 42 frame condenser fan motor provides a versatile replacement for OEM motors. It covers horsepower ratings from 1/8-1/12 and features different bolt circle options for stud mounting. The motor is sealed for weatherproofing and can handle a high current load. It also features a weatherproof connection for switching the direction of the fan turning.

• Versatile Mounting Options
• Ball bearing design
• Reversing Plug

Product Highlights

Multi horsepower condenser fan motor replaces 1/8, 1/10, or 1/12 horsepower fan motors. Features a weatherproof sealed design and handles high current load.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 49722

Technical Specifications

• Hertz: 60
• Amps: 0.9
• Bearing: Ball
• Body Diameter ( in.): 5
• Capacitor: 5/370
• Enclosure: Totally Enclosed
• Insulation Class: B
• Motor Type: Permanent Split Capacitor
• Rotation: REVERSIBLE
• RPM: 1075
• Speeds: 1
