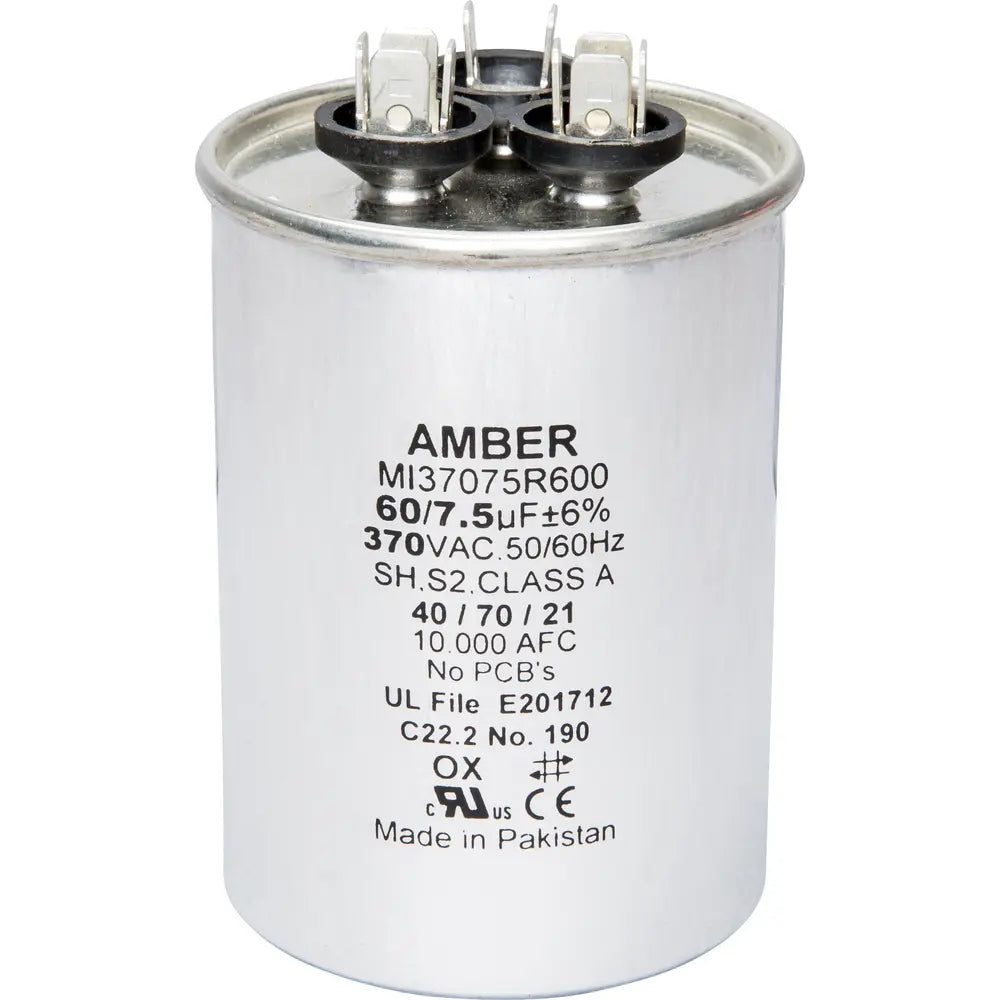

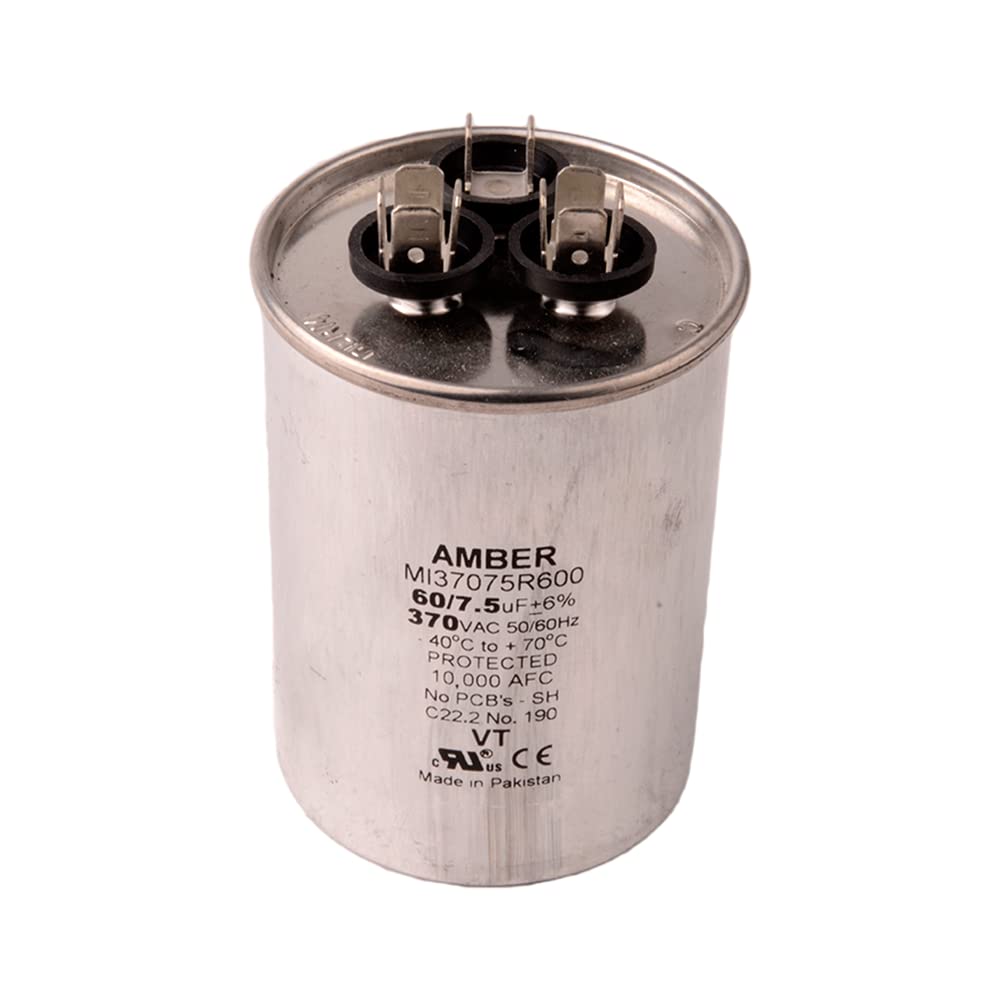

Diversitech 3GR7560 Motor Run Capacitor 370 VAC (60+7.5 uF) 3GR7560

Product Description

The DiversiTech 3GR7560 is a motor run capacitor rated 60+7.5 uF at 370 VAC for HVAC and motor applications. It is oil filled (non-PCB), rated for 50/60 Hz operation, and meets UL-810, CSA22.2 No190, and IEC60252 standards. Capacitance tolerance is +/-5% with a permissible temperature range of -40 C to +70 C; terminal connections use 1/4 inch quick connect fittings. Maximum permissible voltage is 110% and current 130% of rated values; guaranteed life is 10,000 hours under normal operating conditions with an operating life of 94% at 60,000 hours.

• Capacitance 60+7.5 uF; rated voltage 370 VAC; rated frequency 50/60 Hz
• Oil filled (non-PCB) construction with 1/4 inch quick connect terminals and capacitance tolerance +/-5%
• Meets UL-810, CSA22.2 No190, IEC60252; permissible temperature -40 C to +70 C; max permissible voltage 110% and current 130% of rated
• Dual-section motor run capacitor for HVAC and general motor applications
• Individually packaged

Product Highlights

Dual-section 60+7.5 uF, 370 VAC oil-filled motor run capacitor with 1/4 in. quick connect terminals; UL-810, CSA22.2 No190, IEC60252 certified; individually packaged.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 3GR7560
• Country of Origin: China

Technical Specifications

• Brand: DiversiTech
• Manufacturer: DiversiTech
• MPN: 3GR7560
• Part Number / Stock Code: 0277-8219
• UPC / GTIN: 095247071692
• Type / Category: HVAC Capacitors
• Capacitance: 60 + 7.5 uF
• Rated Voltage: 370 VAC
• Rated Frequency: 50/60 Hz
• Capacitance Tolerance: +/-5%
• Permissible Temperature: -40 C to +70 C
• Dielectric/Fill: Oil filled (non-PCB)
• Terminal Type: 1/4 inch quick connect
• Shape: Round (cylindrical can)
• Height (overall): 4.53 Inches
• Diameter: 2.48 Inches
• Weight: 0.60 Pounds
• Standards / Certifications: UL-810; CSA22.2 No190; IEC60252
• Maximum Permissible Voltage: 110% of rated voltage
• Maximum Permissible Current: 130% of rated current
• Packaging: Individually packaged
• Guaranteed Life: 10,000 hours (under normal operating conditions)
• Operating Life: 94% at 60,000 hours
• Applications: HVAC systems, furnace blowers, fan motors, compressors, air conditioners, heat pumps, commercial and industrial refrigeration systems
• Country of Origin: China
• Datasheet: https://media.cityelectricsupply.com/media/diversitech/3gr7560/documents/diversite_datasheet_1036839.pdf
