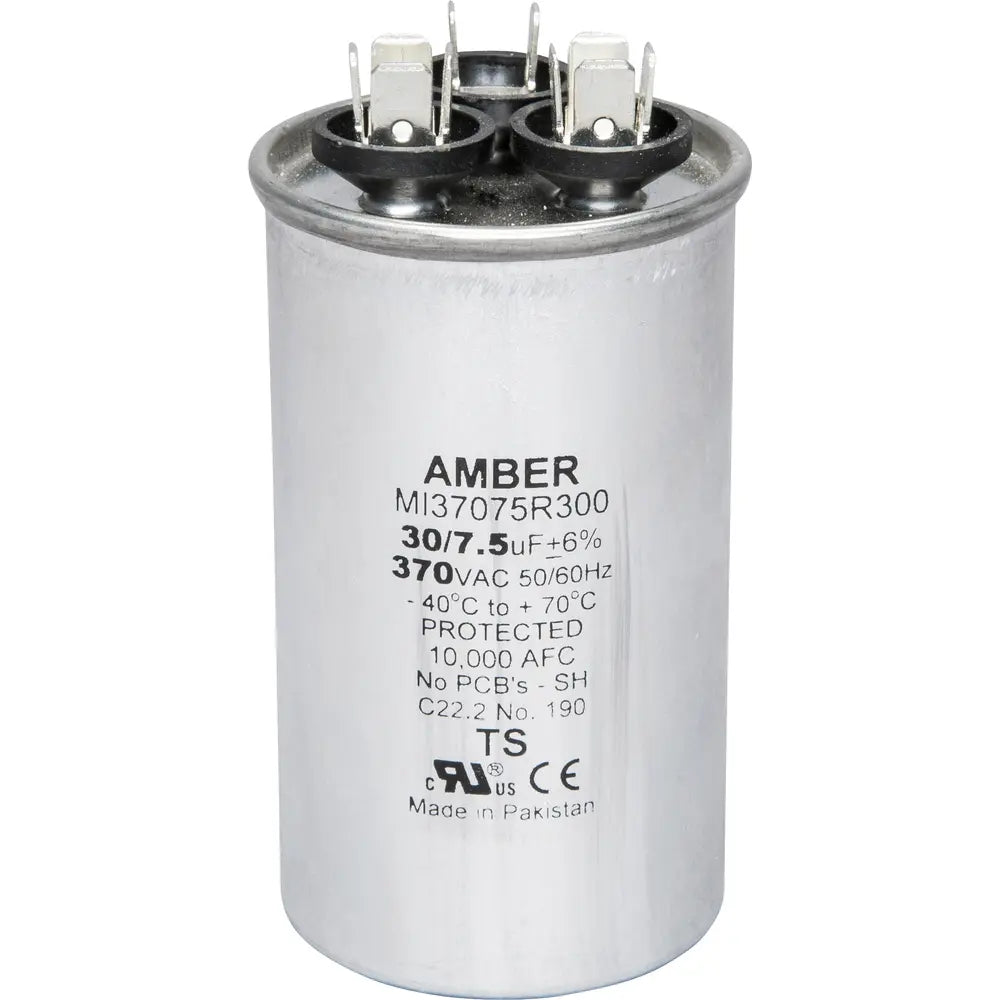

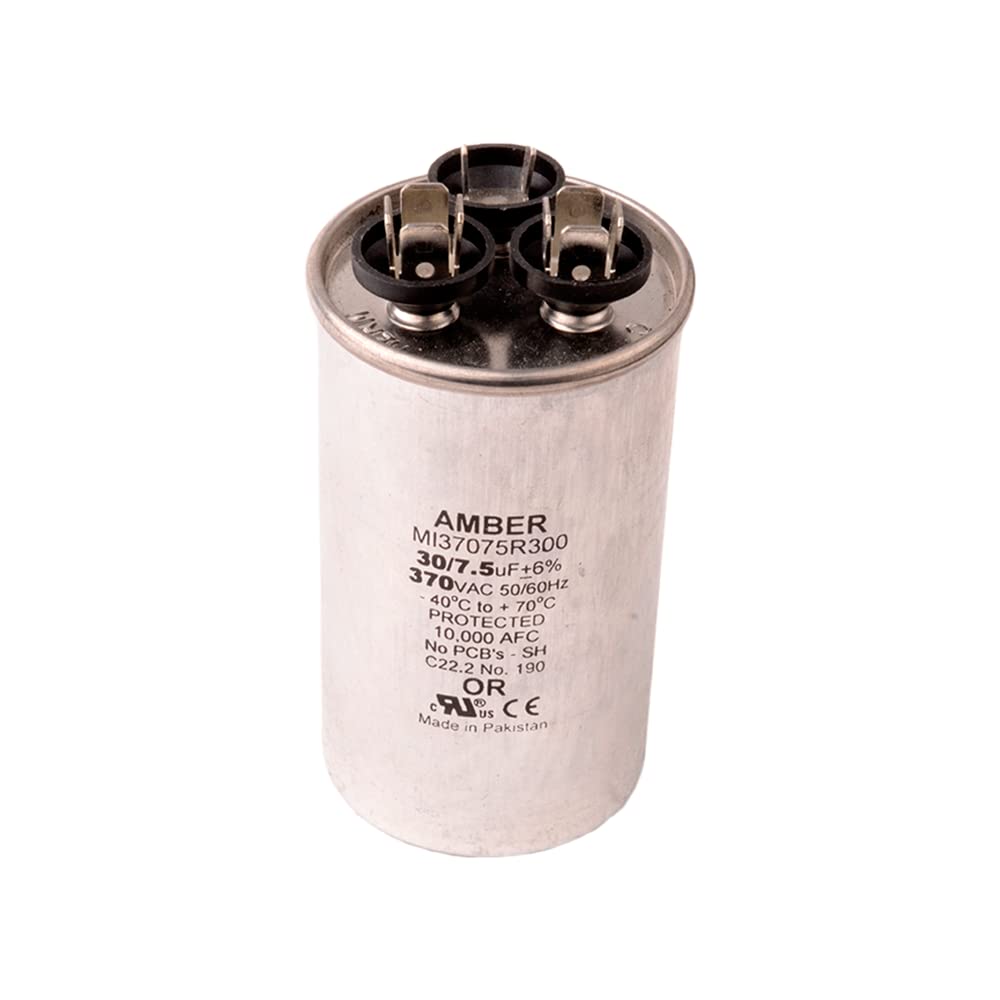

Diversitech 3GR7530 Motor Run Capacitor 370 VAC (30+7.5 uF Pack of 1) 3GR7530

Product Description

The DiversiTech 3GR7530 is a dual-capacitance motor run capacitor rated 370 VAC with 30 + 7.5 uF intended for continuous-run HVAC and motor applications. It features a round metal-can construction, oil-filled non-PCB design, 1/4 in quick-connect terminals, and meets UL-810, CSA22.2 No190, and IEC60252 standards. The capacitor has a permissible temperature range of -40 C to +70 C and a capacitance tolerance of +/-5%.

• Dual capacitance: 30 + 7.5 uF at 370 VAC for HVAC motors, blower and fan applications
• Construction and life: round metal can, oil filled (non-PCB), guaranteed 10,000 hour life; 94% operating life at 60,000 hours
• Standards and limits: +/-5% tolerance, -40 C to +70 C temperature range, meets UL-810/CSA22.2 No190/IEC60252, 1/4 in quick-connect terminal

Product Highlights

Dual 30+7.5 uF run capacitor, 370 VAC, oil filled, UL-810/CSA/IEC certified

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 3GR7530
• Country of Origin: Mexico

Technical Specifications

• Brand: DiversiTech
• MPN: 3GR7530
• Type: Motor run capacitor
• Capacitance: 30 + 7.5 uF (dual capacitance)
• Voltage Rating: 370 VAC
• Rated Frequency: 50/60 Hz
• Capacitance Tolerance: +/-5%
• Permissible Temperature: -40 C to +70 C
• Operating Life (guaranteed): 10,000 hours under normal operating conditions
• Operating Life (stated): 94% at 60,000 hours
• Housing: Round metal can
• Fill: Oil filled (non-PCB)
• Terminal Type: 1/4 in quick connect
• Standards / Certifications: UL-810; CSA22.2 No190; IEC60252 (cRUus)
• Safety Requirement: Meets 10,000 AFC per UL-810
• Maximum Permissible Voltage: 110% of rated voltage
• Maximum Permissible Current: 130% of rated current
• Withstanding Voltage (terminals): Rated voltage x 1.75 for 10 sec
• Withstanding Voltage (terminals to case): Rated voltage x 2 + 1000 V for 60 sec
• Dimensions: 2.25 in diameter x 4.75 in height
• Weight: 0.4 Pounds
• Package Quantity: 1
• Country of Origin: Mexico
• UPC: 095247083855
• Datasheet: https://media.cityelectricsupply.com/media/diversitech/3gr7530/documents/diversite_datasheet_967687.pdf
