Description

Product Description

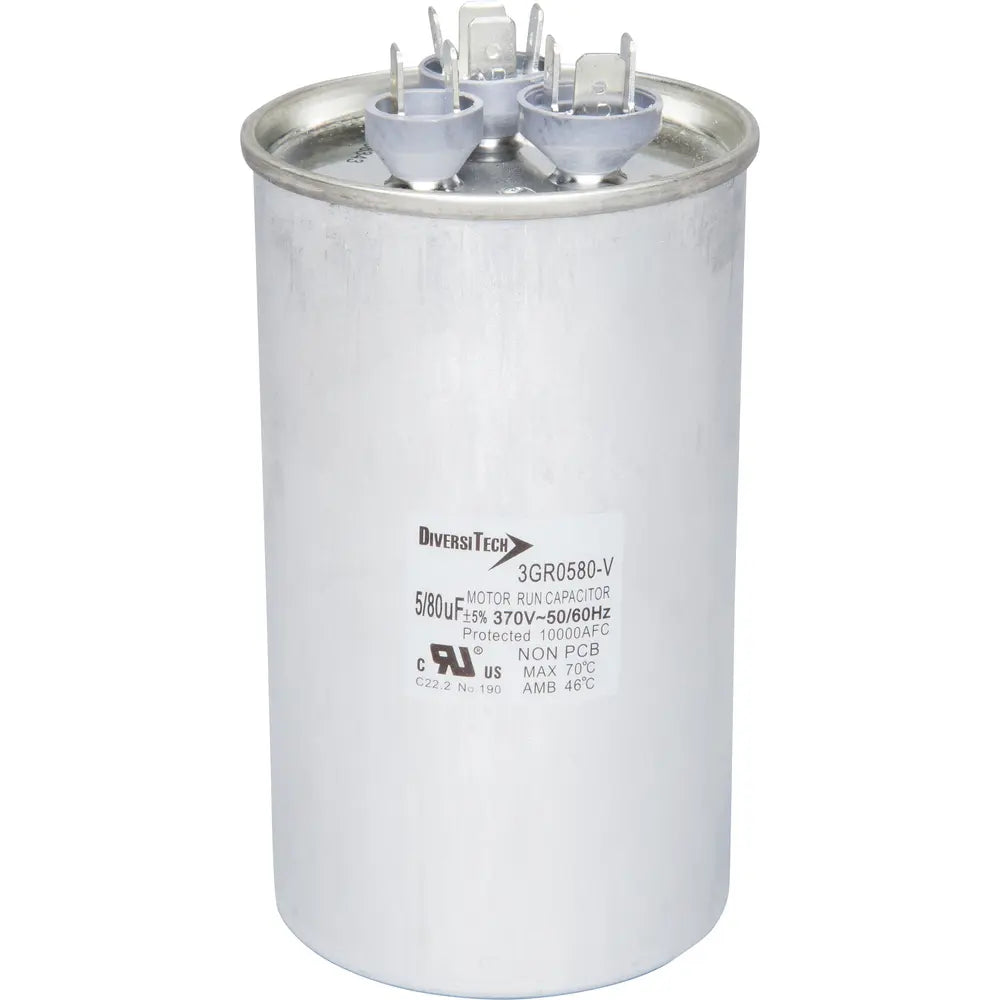

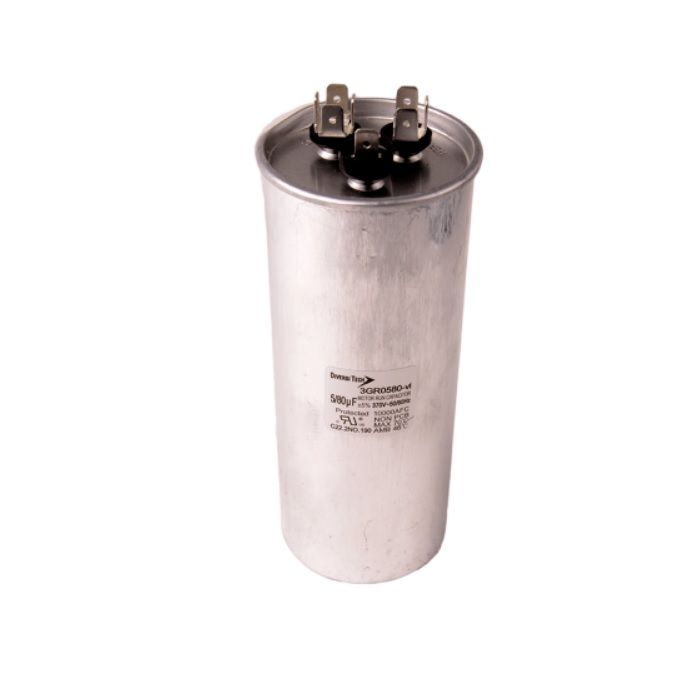

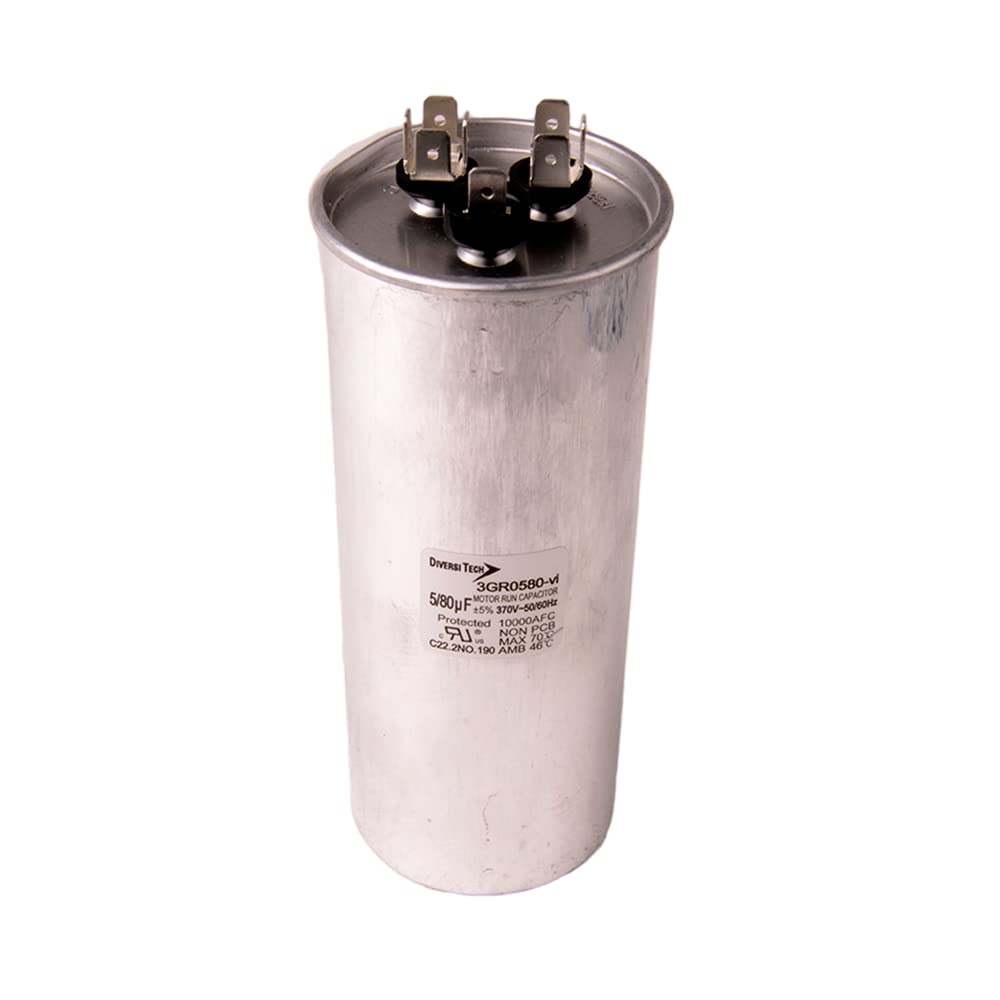

The DiversiTech 3GR0580 is a dual motor run capacitor rated 80+5 µF at 370 VAC. The oil-filled, non-PCB construction is intended for continuous run applications at 50/60 Hz and uses 1/4 in quick-connect terminals. Capacitance tolerance is ±5%, permissible operating temperature is -40°C to +70°C, and the unit meets UL-810, CSA22.2 No190, and IEC60252 standards with a 10,000-hour life guarantee and verified long-term operating life.

  • Dual capacitance: 80 + 5 µF at 370 VAC; tolerance ±5%; rated for 50/60 Hz
  • Oil-filled, non-PCB metal case with 1/4 in quick-connect terminals; round shape
  • Meets UL-810, CSA22.2 No190, IEC60252; permissible temperature -40°C to +70°C; 10,000-hour life guarantee

Product Highlights

Dual 80+5 µF, 370 VAC motor run capacitor; oil-filled non-PCB construction; UL/CSA/IEC certified.

Product Information

Standard Information

  • Brand: DIVERSITECH
  • Manufacturer Part Number: 3GR0580
  • Country of Origin: China
Technical Specifications
Brand
DiversiTech
MPN
3GR0580
Type
Motor run capacitor (HVAC capacitors)
Capacitance
80 + 5 µF
Voltage Rating
370 VAC
Rated Frequency
50/60 Hz
Capacitance Tolerance
±5%
Construction
Oil filled; non-PCB; metal case
Terminal Type
1/4 in quick-connect
Shape
Round
Height
5.91 Inches
Diameter
2.48 Inches
Weight
0.90 Pounds
Standards
UL-810; CSA22.2 No190; IEC60252
Permissible Temperature
-40°C to +70°C
Maximum Permissible Voltage
110% of rated voltage
Maximum Permissible Current
130% of rated current
Withstanding Voltage (Between Terminals)
Rated voltage × 1.75 for 10 sec
Withstanding Voltage (Terminals and Case)
Quoted per manufacturer (see datasheet) — formula in spec appears ambiguous
Life Guarantee
Guaranteed 10,000 hours under normal operating conditions
Operating Life
Specification states 94% operating life at 60,000 hours (phraseology unusual — retained with low confidence)
Package Quantity
Pack of 1
Country of Origin
CN
UPC
095247071678
Datasheet
https://media.cityelectricsupply.com/media/diversitech/3gr0580/documents/diversite_datasheet_1039030.pdf
