Diversitech 3GR0525 Motor Run Capacitor 25.5+5 uF 370V (Each)

DIVERSITECH
Brand: DIVERSITECH
SKU: 3GR0525
Availability: Out Of Stock
$15.41
$15.41
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

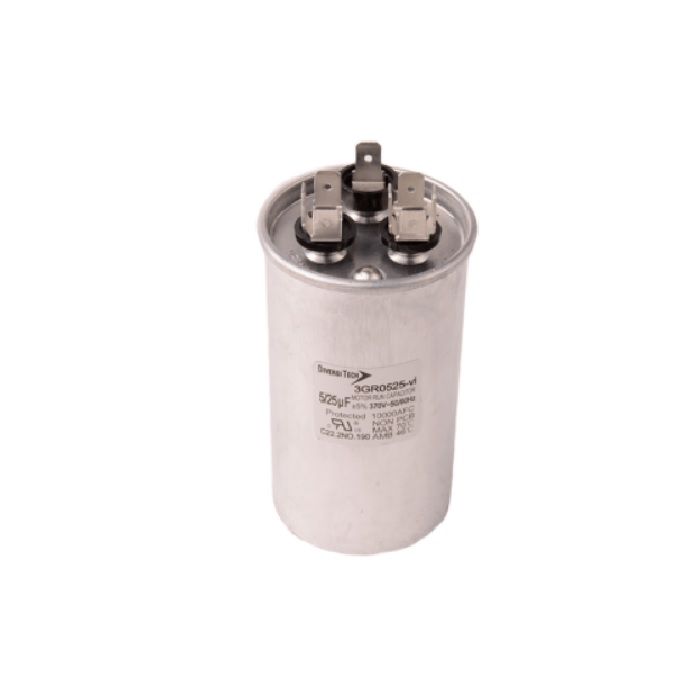

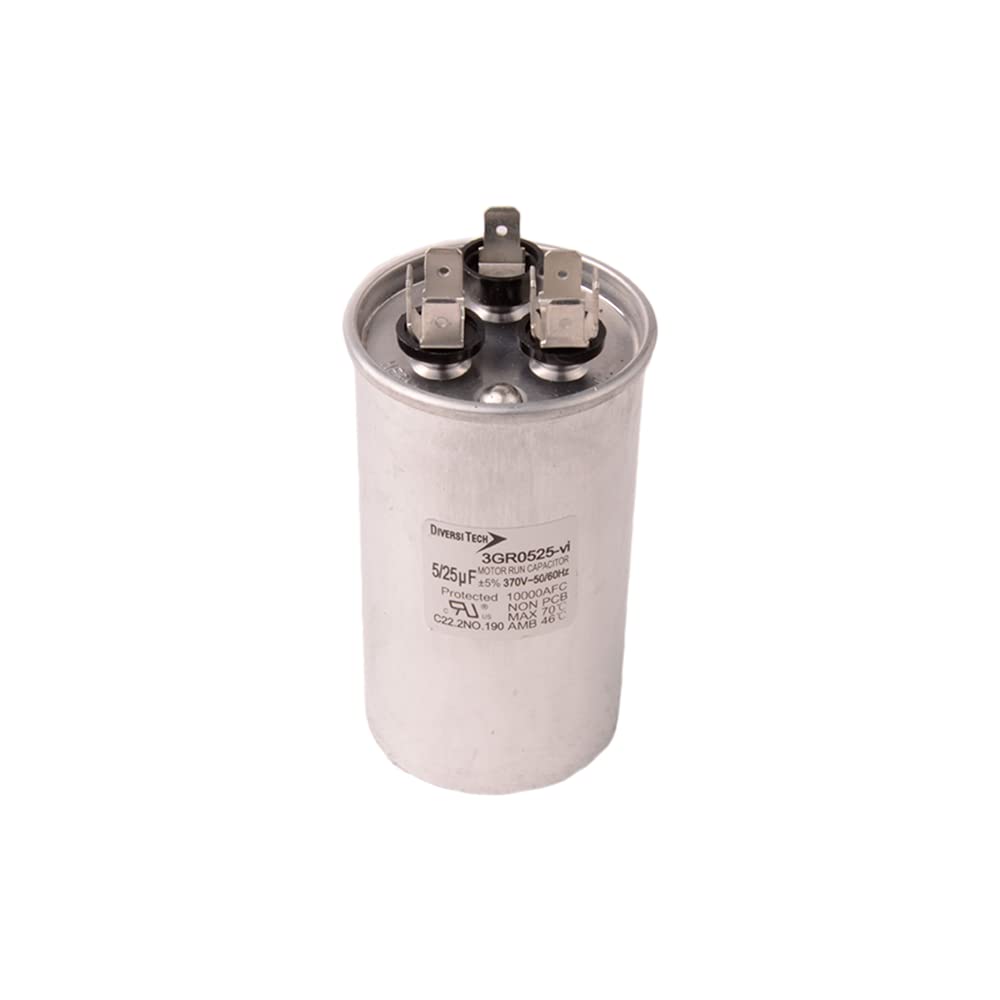

The Diversitech 3GR0525 is a round motor run capacitor with dual capacitance 25.5 + 5 uF and a 370 V AC rating. It is oil filled (non-PCB) in a metal round case with 1/4 in. quick-connect terminals, rated for 50/60 Hz operation and +/-5% capacitance tolerance. Intended for continuous motor applications such as furnace blowers, fan motors, refrigeration and air conditioning systems.

  • Dual capacitance: 25.5 + 5 uF; rated voltage 370 V AC; 50/60 Hz operation; +/-5% tolerance
  • Oil filled, non-PCB dielectric in a round metal housing with 1/4 in. quick-connect terminals
  • Meets UL-810, CSA22.2 No190 and IEC60252; operating temperature range -40°C to +70°C; guaranteed 10,000 hours life

Product Highlights

Dual motor run capacitor, 25.5+5 uF at 370 V AC, oil-filled non-PCB metal can with 1/4 in quick-connect terminals and recognized safety standards.

Product Information

Standard Information

  • Brand: DIVERSITECH
  • Manufacturer Part Number: 3GR0525
  • Country of Origin: China
Technical Specifications
Brand
Diversitech
Manufacturer
Diversitech
Manufacturer Part Number (MPN)
3GR0525
Product Type
Motor run capacitor
Capacitance
25.5 + 5 uF
Voltage Rating
370 V AC
Rated Frequency
50/60 Hz
Capacitance Tolerance
+/-5%
Terminal Type
1/4 in. quick-connect
Dielectric / Filling
Oil filled; Non-PCB
Case Material
Metal
Shape
Round
Operating Temperature Range
-40°C to +70°C
Maximum Permissible Voltage
110% of rated voltage
Withstand Voltage (between terminals)
Rated voltage × 1.75 VAC for 10 sec
Withstand Voltage (between terminals and case)
Manufacturer-specified (see datasheet) — reported as Rated voltage × 2 + 1000 VAC for 60 sec (low confidence)
Standards / Certifications
UL-810; CSA22.2 No190; IEC60252
Safety (AFC)
Meets 10,000 AFC requirement per UL-810 (reported by manufacturer)
Guaranteed Life
10,000 hours under normal operating conditions
Operating Life
Manufacturer-stated: 94% at 60,000 hours (unusual phrasing; retained as reported)
Weight
181 g
Package Quantity
1
UPC
095247071616
Country of Origin
China
