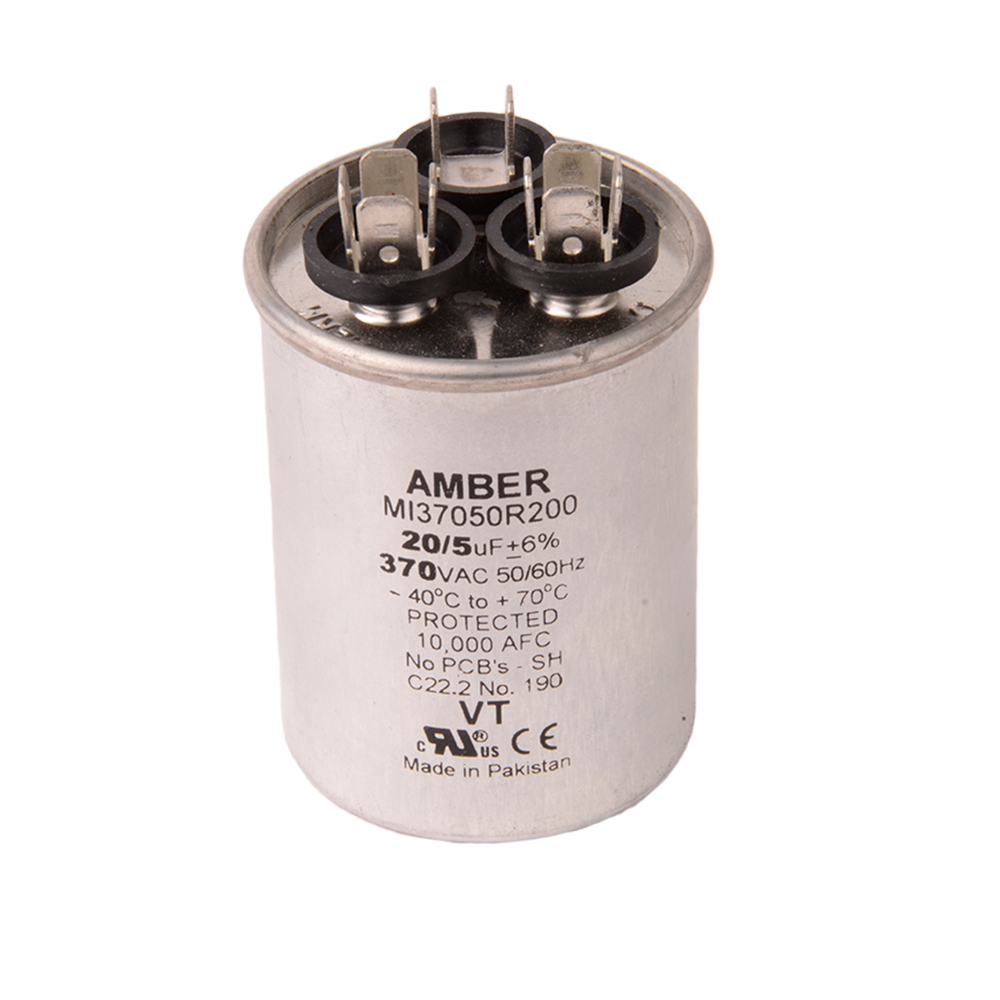

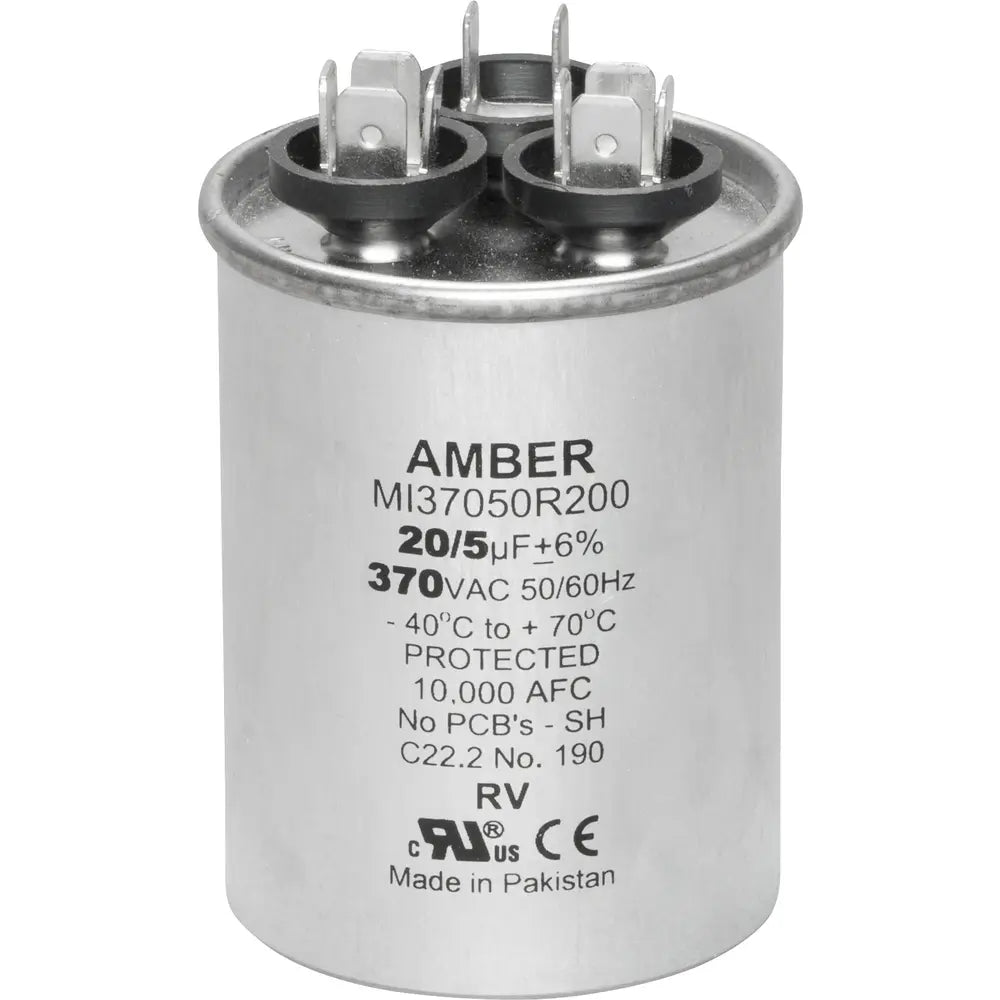

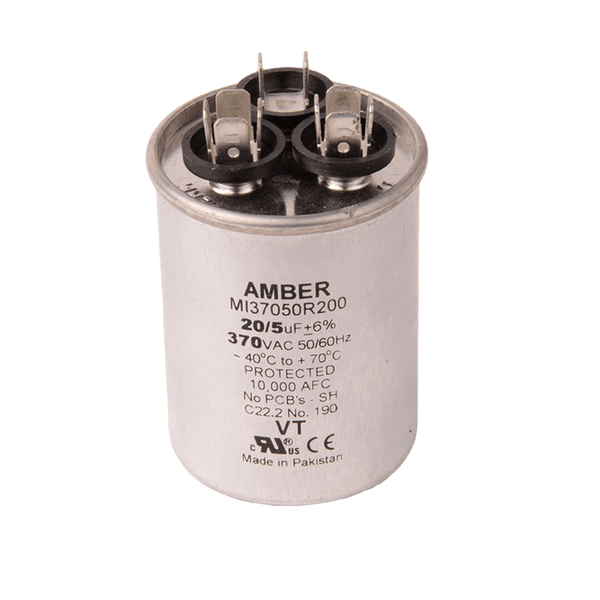

Diversitech 3GR0520 Motor Run Capacitor 370 VAC (20+5 uF, Pack of 1)

Product Description

The DiversiTech 3GR0520 is a motor run capacitor rated 370 VAC with a dual capacitance of 20+5 uF, intended for continuous heavy-duty HVAC motor applications such as furnace blower and condenser fan motors. It is oil filled (non-PCB), rated for 50/60 Hz operation, and designed to meet UL-810, CSA22.2 No.190, and IEC60252 standards with a capacitance tolerance of +/-5%. Permissible temperature range is -40 C to +70 C.

• 20+5 uF dual motor run capacitor at 370 VAC for furnace blower and condenser fan motors
• Meets UL-810, CSA22.2 No.190 and IEC60252; guaranteed 10,000 hours life and 94% at 60,000 hours
• Oil filled non-PCB construction, +/-5% capacitance tolerance, 1/4 inch quick connect terminal

Product Highlights

Dual 20+5 uF, 370 VAC motor run capacitor; oil filled non-PCB; UL/CSA/IEC certified; -40 C to +70 C operating range.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 3GR0520
• Country of Origin: Mexico

Technical Specifications

• Brand: DiversiTech
• MPN: 3GR0520
• Type: Motor run capacitor (dual)
• Intended Application: Furnace blower and condenser fan motors; HVAC motor run/continuous duty
• Capacitance: 20+5 uF
• Voltage Rating: 370 VAC
• Rated Frequency: 50/60 Hz
• Capacitance Tolerance: +/-5%
• Dielectric/Fill: Oil filled; non-PCB
• Terminal Type: 1/4 inch quick connect
• Shape: Round
• Standards: cRUus (meets UL-810; CSA22.2 No190; IEC60252)
• AFC Safety: Meets 10,000 AFC per UL-810
• Operating Life: Guaranteed 10,000 hours; 94% at 60,000 hours
• Permissible Temperature: -40 C to +70 C
• Maximum Permissible Voltage: 110% of rated voltage
• Maximum Permissible Current: 130% of rated current
• Withstanding Voltage (Terminals): Rated voltage x 1.75, 10 sec
• Withstanding Voltage (Terminals to Case): Rated voltage x 2 + 1000 VAC, 60 sec
• Dimensions (L x W x H): 2.09 x 1.97 x 3.15 inches
• Weight: 0.6 Pounds
• Package Quantity: 1
• Country of Origin: Mexico
• Datasheet: https://media.cityelectricsupply.com/media/diversitech/3gr0520/documents/diversite_datasheet_1050054.pdf
• UPC: 095247084647
