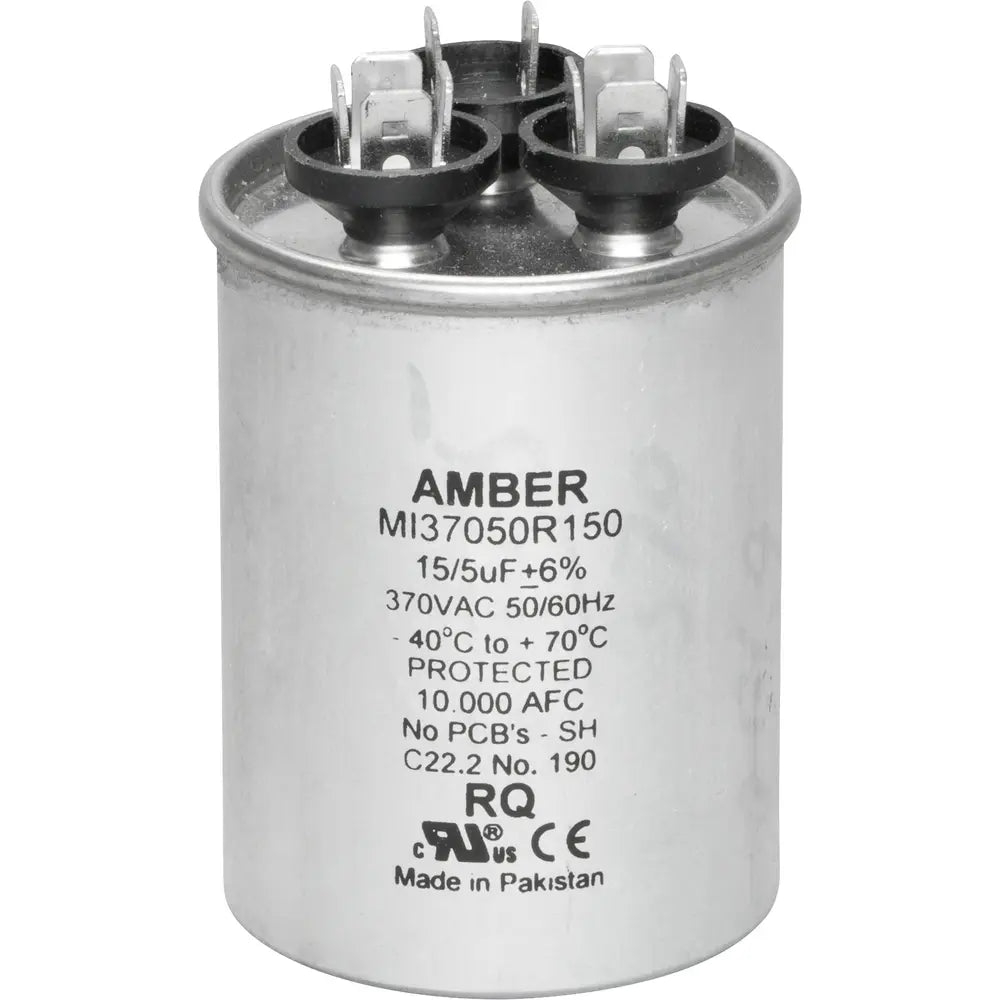

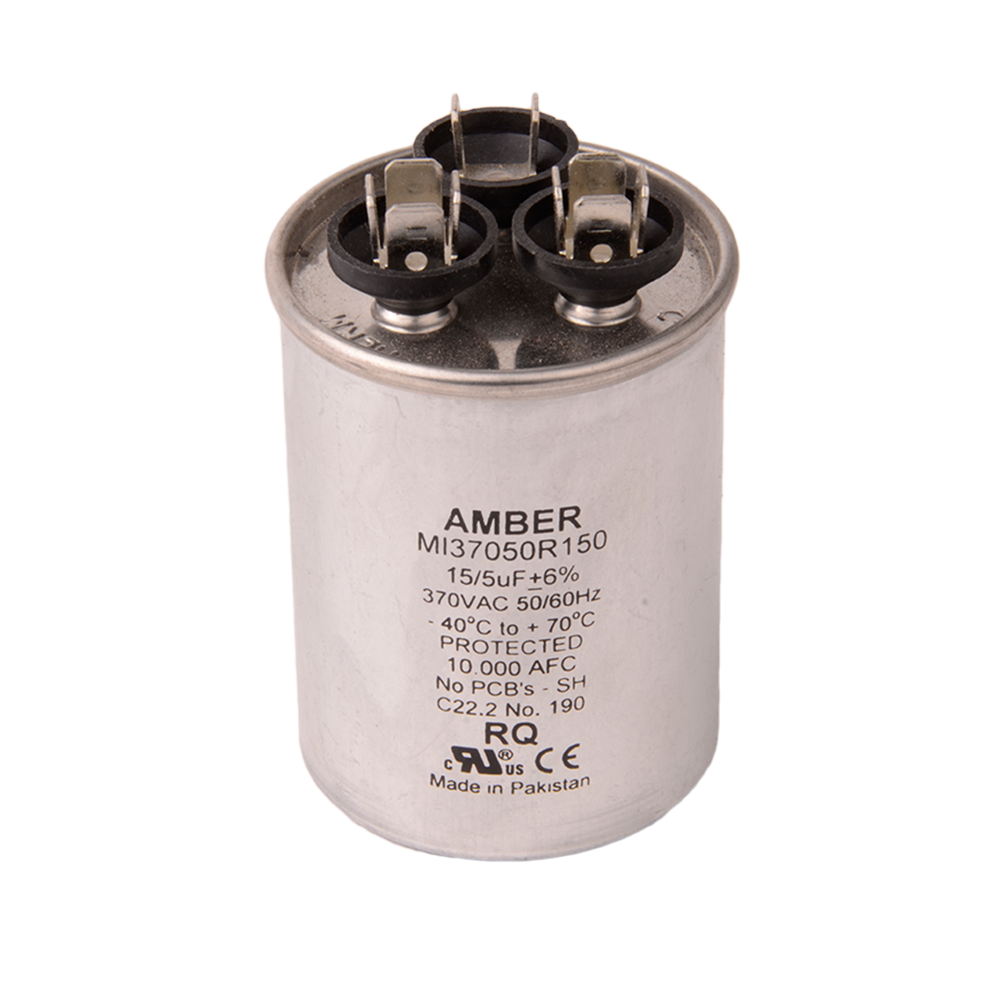

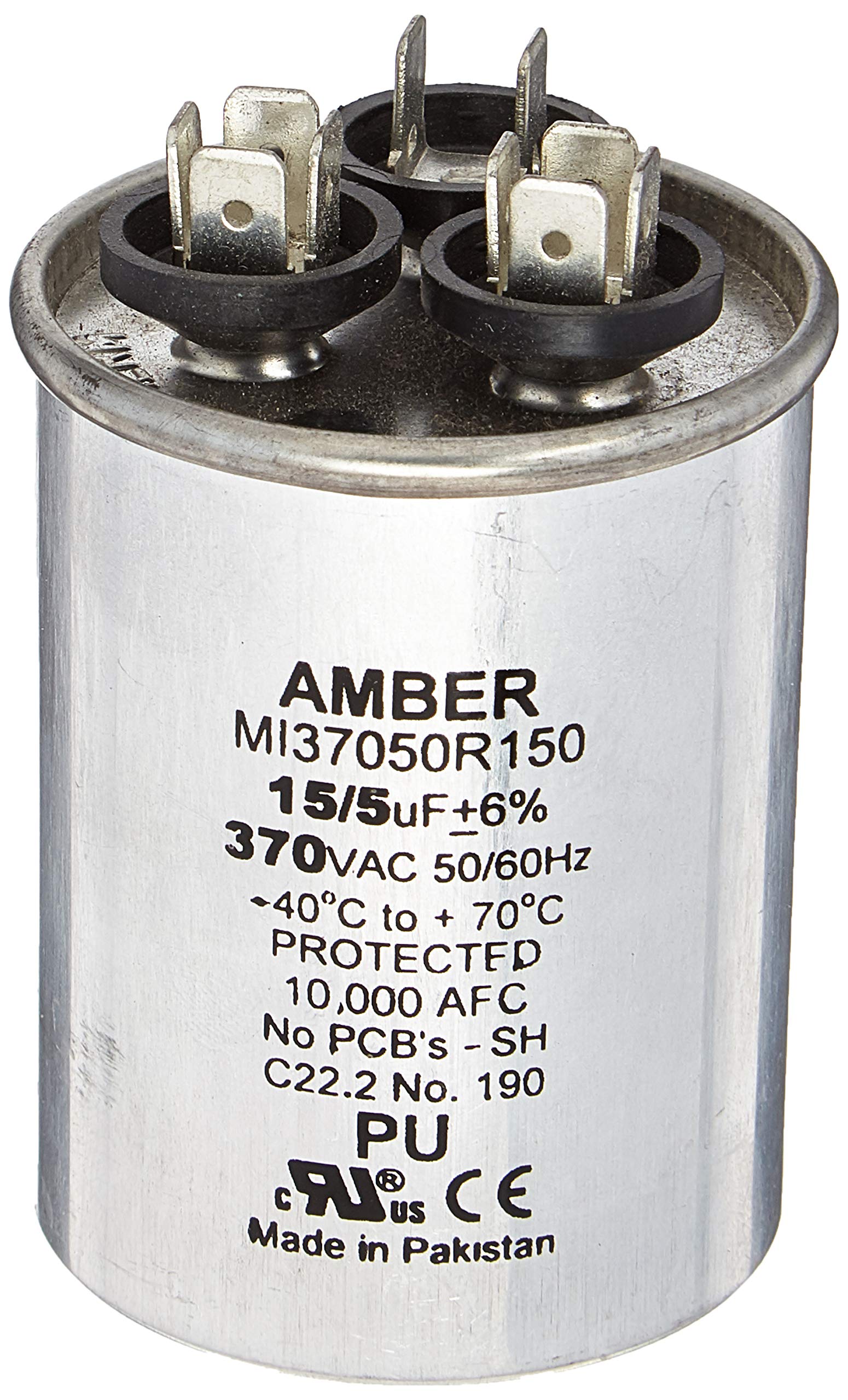

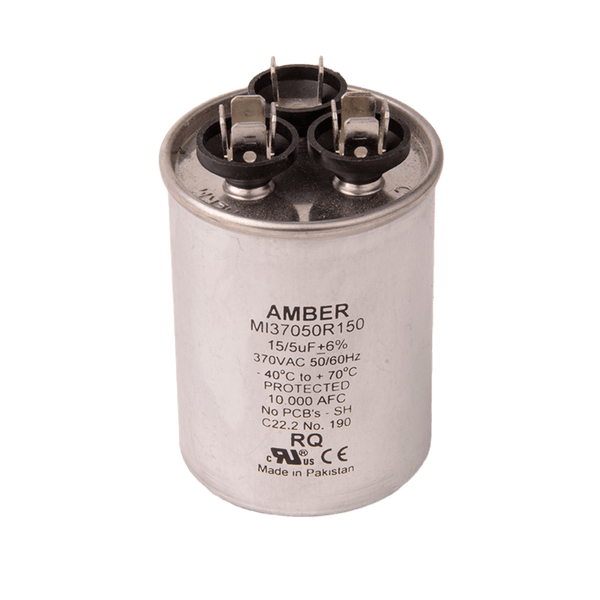

Diversitech 3GR0515 Motor Run Capacitor 370 VAC (Round 15+5 uF)

Product Description

The DiversiTech 3GR0515 is a motor run capacitor with dual capacitance (15+5 uF) rated at 370 VAC for continuous-run HVAC and motor applications. It is a round metal-can, oil-filled, non-PCB design with quick-connect terminals and a permissible temperature range of -40°C to +70°C. The capacitor has a guaranteed 10,000-hour life under normal conditions and meets UL-810, CSA22.2 No190, and IEC60252 standards.

• Dual capacitance: 15+5 uF, capacitance tolerance ±5%; rated voltage 370 VAC
• Round metal can, oil filled (non-PCB) with quick-connect (1/4 in.) terminals; dimensions 2.25 in. diameter × 4.75 in. height
• Designed for continuous run: guaranteed 10,000 hours life; operating life 94% at 60,000 hours; meets UL-810, CSA22.2 No190, IEC60252

Product Highlights

Dual-section 15+5 uF run capacitor rated 370 VAC, oil-filled round metal housing, quick-connect terminals, -40°C to +70°C operating range.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 3GR0515
• Country of Origin: US

Technical Specifications

• Brand: DiversiTech
• MPN: 3GR0515
• Part Number: 0281-5713
• UPC: 095247091409
• Type: Motor run capacitor (HVAC capacitor, dual section)
• Capacitance: 15 + 5 uF (dual capacitance)
• Capacitance Tolerance: ±5%
• Rated Voltage: 370 VAC
• Rated Life: Guaranteed 10,000 hours under normal operating conditions
• Operating Life: 94% at 60,000 hours
• Temperature Range: -40°C to +70°C
• Housing: Round metal can
• Fill: Oil filled; non-PCB
• Terminals: Quick connect (1/4 in.)
• Dimensions (Diameter × Height): 2.25 in. × 4.75 in.
• Diameter: 2.25 Inches
• Height: 4.75 Inches
• Weight: 0.4 Pounds
• Standards / Certifications: UL-810; CSA22.2 No190; IEC60252; cRUus
• Withstanding Voltage (between terminals): Rated voltage × 1.75 for 10 seconds
• Withstanding Voltage (between terminals and case): Rated voltage × 2 + 1000 V for 60 seconds
• Maximum Permissible Voltage: 110% of rated voltage
• Maximum Permissible Current: 130% of rated current
• Country of Origin: US
