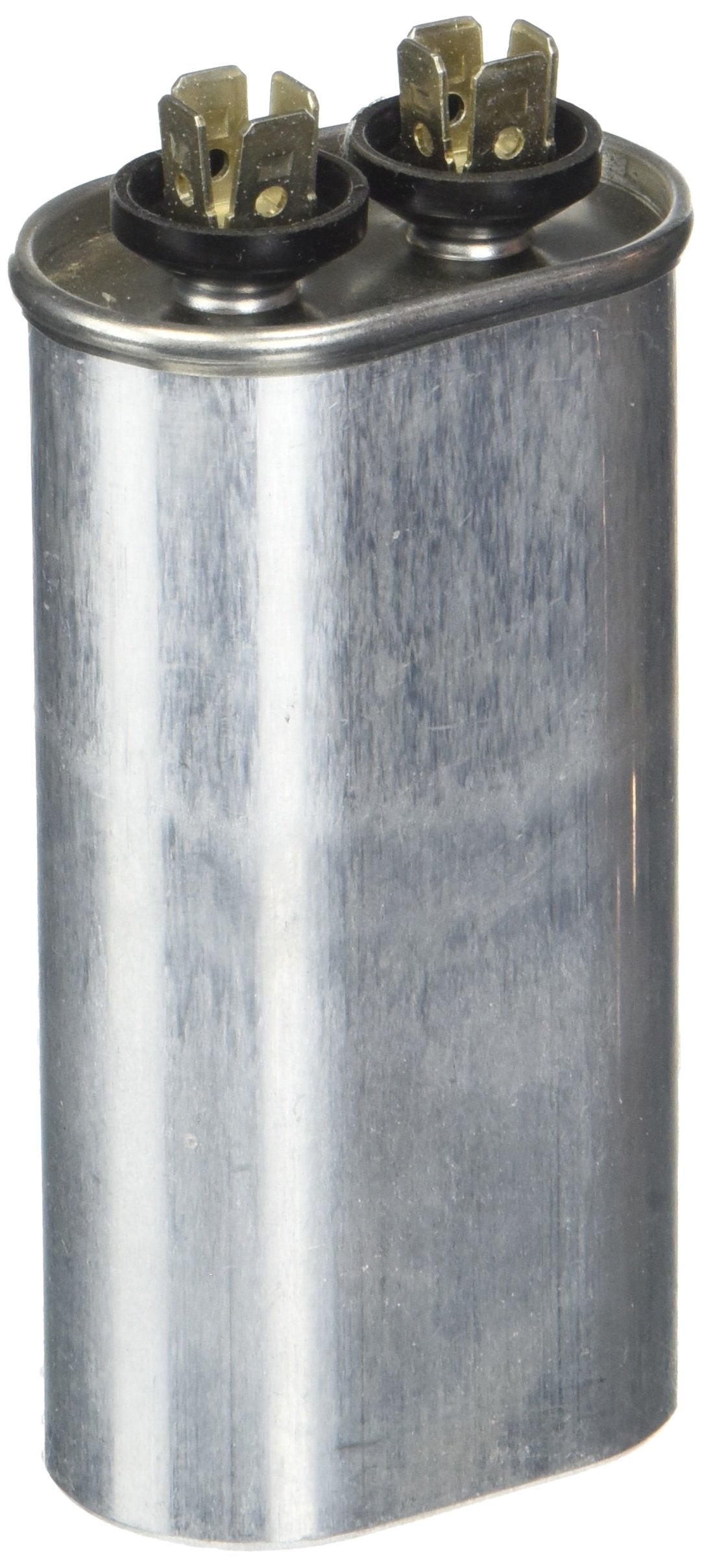

Diversitech 37175H Motor Run Capacitor 17.5 µF 370 VAC (Oval, Pack of 1)

Product Description

The DiversiTech 37175H is an oval motor run capacitor rated 17.5 µF at 370 VAC for continuous run applications. It is oil filled (non-PCB) with 1/4" quick connect terminals, ±5% capacitance tolerance, and a rated frequency of 50/60 Hz. The unit is guaranteed for 10,000 hours under normal conditions, supports -40°C to +70°C operation, and meets UL-810, CSA22.2 No190 and IEC60252 standards.

• Capacitance: 17.5 µF at 370 VAC, rated frequency 50/60 Hz, tolerance ±5%
• Construction: Oil filled (non-PCB), 1/4" quick connect terminals, oval housing
• Reliability and safety: Guaranteed 10,000 hours life, 94% life at 60,000 hours; meets UL-810, CSA22.2 No190, IEC60252; withstand tests included

Product Highlights

Oval 17.5 µF motor run capacitor, 370 VAC, oil filled non-PCB, 1/4" quick connect, -40°C to +70°C, UL/CSA/IEC compliant

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 37175H
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: DiversiTech
• MPN: 37175H
• Type: HVAC motor run capacitor
• Capacitance: 17.5 µF
• Voltage Rating: 370 VAC
• Rated Frequency: 50/60 Hz
• Capacitance Tolerance: ±5%
• Operating Temperature: -40°C to +70°C
• Filling Type: Oil filled (Non-PCB)
• Terminal Type: 1/4" quick connect
• Shape: Oval
• Pack Quantity: 1 Unit
• Guaranteed Life: 10,000 hours under normal operating conditions
• Operating Life at 60,000 Hours: 94%
• Standards / Certifications: UL-810; CSA22.2 No190; IEC60252
• Withstanding Voltage (between terminals): Rated Voltage × 1.75 for 10 sec
• Withstanding Voltage (between terminals and case): Rated Voltage × 2 + 1000 VAC for 60 sec
• Maximum Permissible Voltage: 110% of rated voltage
• Maximum Permissible Current: 130% of rated current
• Dimensions (L x W x H): 2.17 x 1.38 x 3.35 Inches
• Weight: 0.4 Pounds
• Country of Origin: MX
• Part / Stock Code: 0281-5650
• UPC: 095247071296
• Datasheet: https://media.cityelectricsupply.com/media/diversitech/37175h/documents/diversite_datasheet_1050032.pdf
