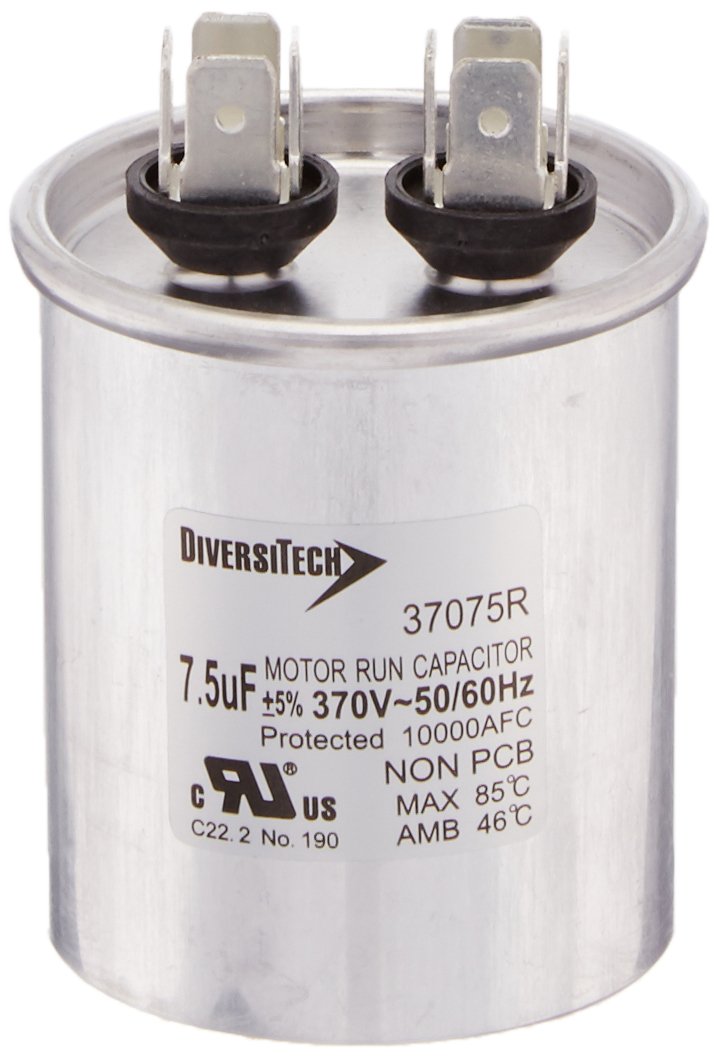

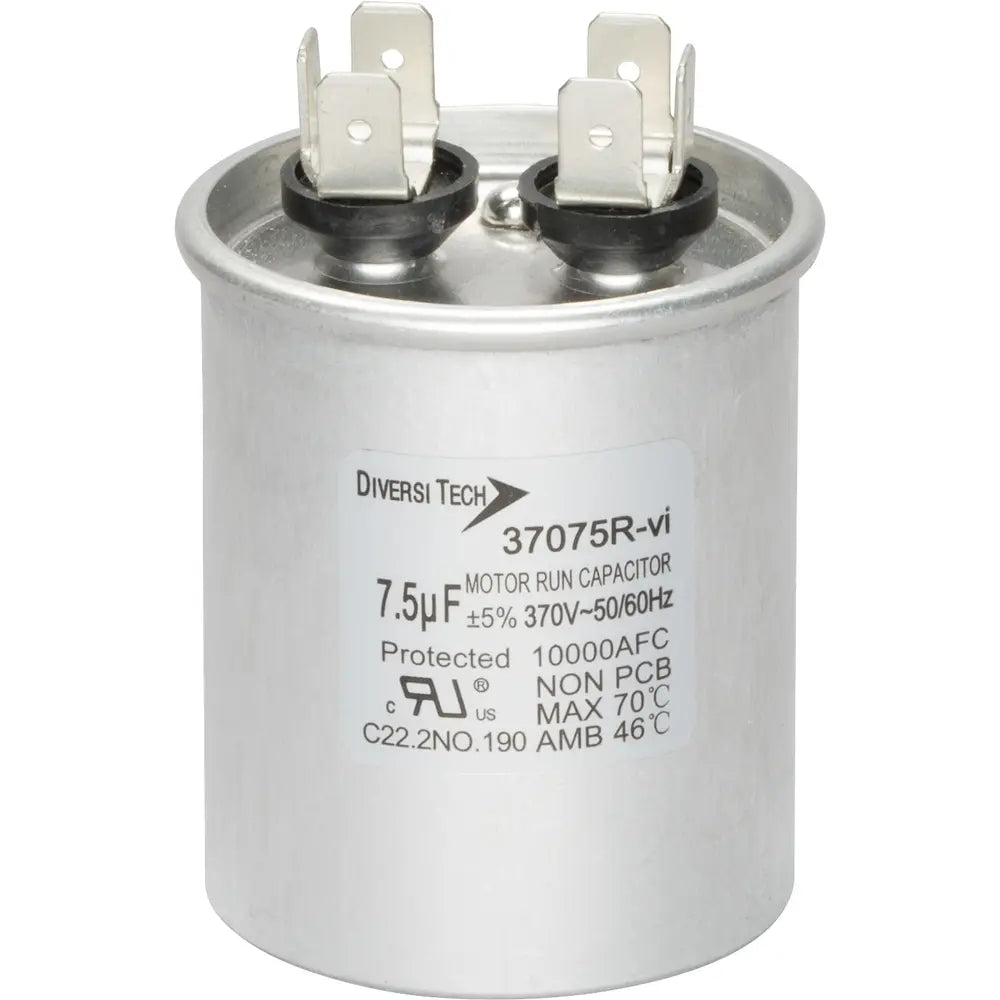

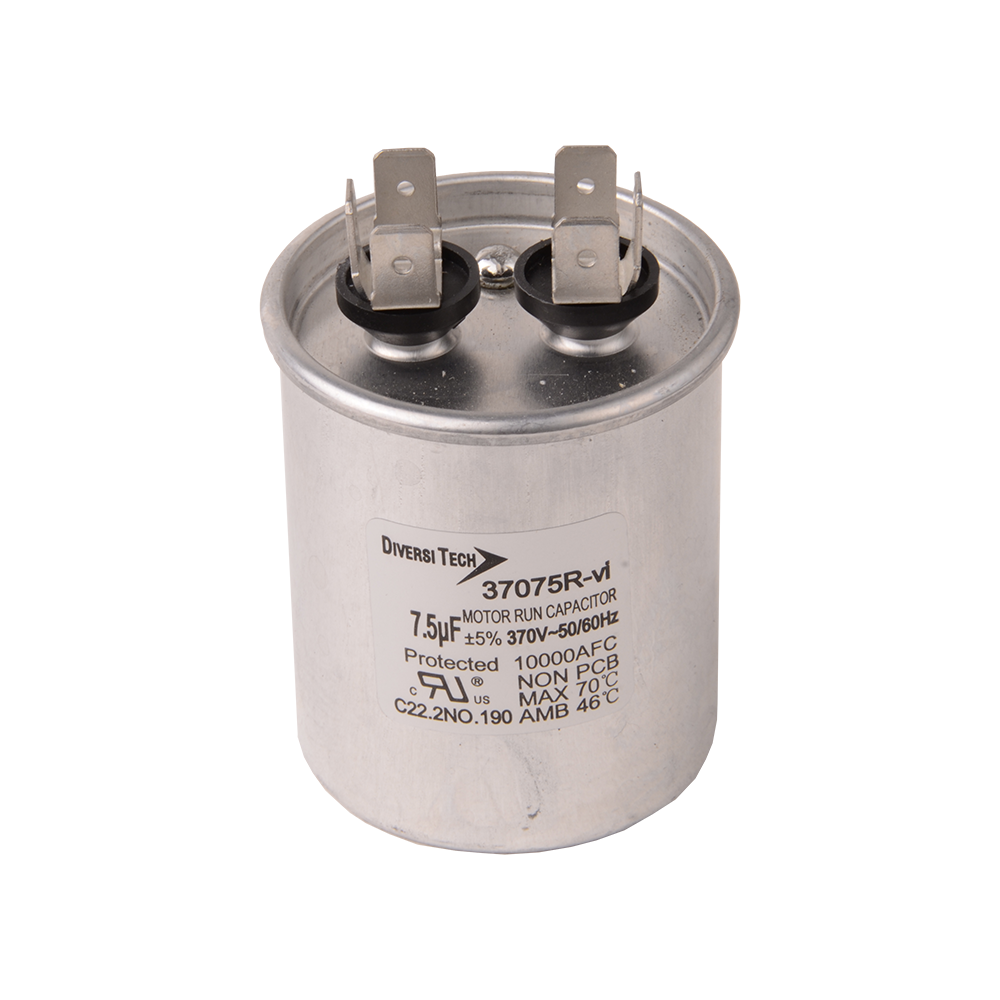

Diversitech 37075R Motor Run Capacitor, 370 VAC, Round, 7.5µF

Product Description

The DiversiTech 37075R motor run capacitor is a round, 7.5µF, 370 VAC capacitor guaranteed for 10,000 hours of life under normal operating conditions. It has an operating life of 94% at 60,000 hours and is designed for continuous run. It meets 10,000 AFC safety requirement per UL-810.

• Features quick connect terminals
• Has an oval metal housing and is oil filled with non-PCB
• Applied Standard: UL-810; CSA22.2 No190, IEC60252

Product Highlights

This DiversiTech capacitor is designed for HVAC applications and ensures reliable motor operation with its robust construction and safety standards.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 37075R
• Country of Origin: CN

Technical Specifications

• Type: HVAC Capacitors
• Shape: Round
• Height: 2.17 Inches
• Capacity: 7.5 uF
• Diameter: 1.8 Inches
• Voltage Rating: 370 VAC
• Application: Motor Run
• Housing: Oval metal
• Features: Quick connect terminals, Oil Filled; Non PCB
• Standards: UL-810; CSA22.2 No190, IEC60252
• Safety: Meets 10,000 AFC safety requirement per UL-810
• Product Type: CAPACITOR
• Manufacturer: Diversitech
• Brand: Diversitech
• Model / MPN: 37075R
• Number of Items: 1.0
• Volts: 370
• Material: Metal
• Ducted or Ductless: Both Ducted and Ductless
• Capacitance: Single
• MFD Rating: 7.5
• Case Material: Metal
• Domestic / Import: Import
• Specifications: 50/60 Hz, +/- 5% Tolerance, 2.22 in H Case
