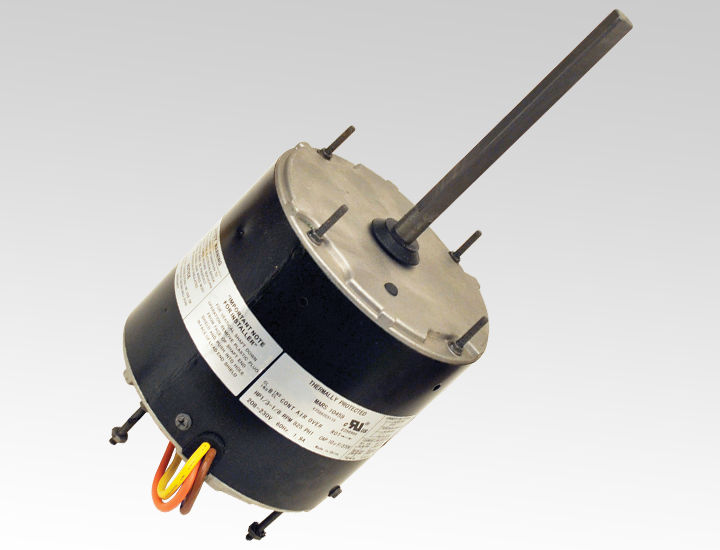

DIVERSITECH 3469 Multi-Horsepower Condenser Fan Motor

DIVERSITECH
Brand: DIVERSITECH
SKU: 3469
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$271.04
$271.04
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The DIVERSITECH 3469 is a multi-horsepower condenser fan motor built for one or two-speed use at sixty hertz. This single-phase motor is designed with electronic reversibility for enhanced functionality.

  • Electronically reversible design
  • Includes Class B insulation and auto protector
  • UL/CSA approved for safety

Product Highlights

Engineered to operate efficiently in ambient temperatures up to sixty degrees Celsius, this motor provides reliable performance for various cooling systems.

Product Information

Standard Information

  • MPN: 3469
  • Horsepower: 1/3, 1/5

Technical Specifications

  • Voltage: 208-230
  • Rated Amps: 1.9, 1.2
  • RPM: 825/2
  • Bearings: Ball
  • Shaft Size: 1/2 x 6
  • Capacitor: 10 MFD 370V
  • BM DIM: 5.24
  • Phase: Single
