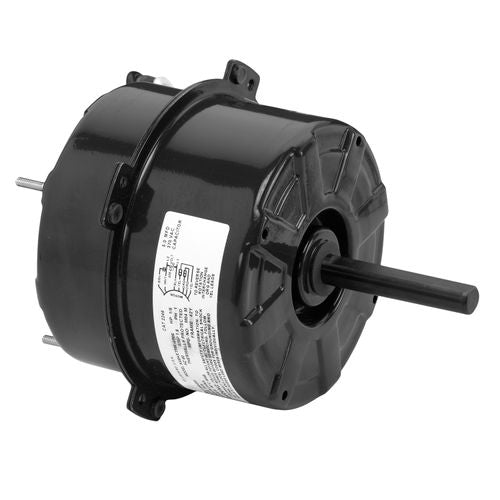

Diversitech 2243 1/10hp 1075 Rpm 208-230 Volt Motor

Product Description

The Diversitech 2243 motor is a 1/10HP single-phase PSC motor designed for various applications. Operating at 208-230 volts and 60 hertz, it delivers 1075 RPM with a 0.75 amp draw. This motor features ball bearings and reversible rotation, making it suitable for ducted systems. Its stud mounting and 0.5 inch by 2.7 inch shaft provide versatile installation options for electrical and HVAC equipment.

• 1/10HP Permanent Split Capacitor (PSC) motor with 1075 RPM.
• Operates on 208-230 volts, 60 hertz, drawing 0.75 amps.
• Features ball bearings, reversible rotation, and stud mounting for ducted applications.

Product Highlights

1/10HP PSC motor with 1075 RPM, 208-230V operation, reversible rotation, and stud mounting.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 2243

Technical Specifications

• Part Number: 2243
• Input Voltage: 208-230V
• Frequency: 60 Hz
• Horsepower: 1/10 HP
• Current: 0.75 A
• Bearing Type: Ball
• Motor Type: PSC
• Mounting Type: Studs
• Rotation: Reversible
• RPM: 1075
• Shaft Dimensions: 0.5 in. x 2.7 in.
• Application Type: Ducted
• Phase: Single
