Diversitech 15041 EMS Unit Bearing Fan Motor 50 Watts REPLACEMENT Copeland 050-0244-00

Product Description

The DIVERSITECH 15041 EMS unit bearing fan motor operates at 50 watts and is designed for various applications. This motor features a shaded pole design and includes mounting hardware. It is made in the USA and UL recognized. It is a direct replacement for Copeland 050-0244-00, EMS ESPOL50EM2.

• Double foot pad mounting

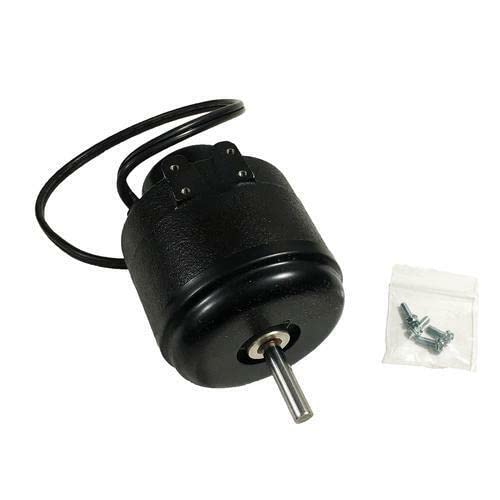

• Mounting hardware included
• UL recognized

Product Highlights

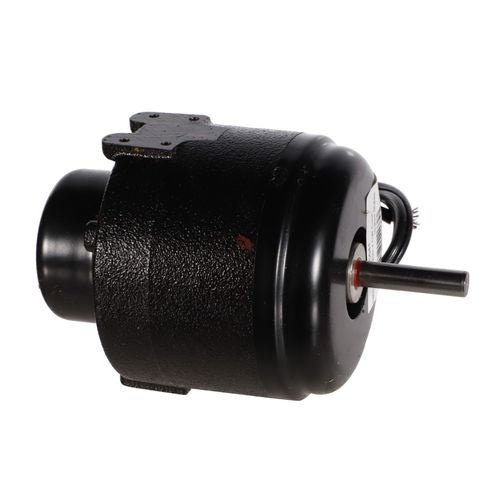

Cast iron unit bearing motor with double foot pad mounting and mounting hardware included.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 15041
• Country of Origin: USA

Technical Specifications

• Voltage: 230
• Amps: 0.85
• Bearings: Unit Bearing
• Enclosure: Open
• Hertz: 60
• RPM: 1500
• Speeds: 1
• Watts: 50
• Shaft Dimensions (In.) Dia x Lgth: 3/8 x 1 1/2
• Length Less Shaft (In.): 3 5/8
• Motor Type: Shaded Pole
• Mounting Option: Double Foot Pads
• Material: Cast Iron
• Mounting: Multi-Foot
• Rotation: CW
• Shaft Dimension: 3/8" x 1-1/2"
• Max Watts: 50
• phases: Single
• A2L Certified: Not Applicable
• Primary Depth (inches): 8.25
• Primary Width (inches): 4.75
• Primary Height (inches): 5.25
• Direct Replacement For: Copeland 050-0244-00, EMS ESPOL50EM2
