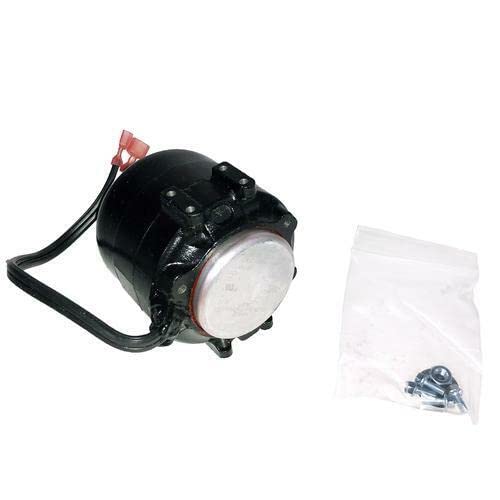

Diversitech 10042 unit bearing motor 35-50W CCW replaces Witt 8216125 Russell 08216125

Product Description

The Diversitech 10042 is a unit bearing motor designed for refrigeration applications. This ECM motor operates at 208-230V with a constant speed of 1550 RPM, regardless of voltage fluctuations or 50/60 Hz frequency. Constructed from cast iron, it offers a direct drop-in replacement for Witt 8216125 and Russell 08216125 models, featuring ultimate commutated technology for efficient performance.

• Direct drop-in replacement for Witt 8216125 & Russell 08216125, utilizing Ultimate Commutated Technology.
• Features unit bearing construction, 100% performance tested, and includes a LYALL plug for easy installation.
• Achieves peak efficiencies exceeding 80%, contributing to lower operating temperatures and extended motor life.

Product Highlights

UL Certified, constant 1550 RPM speed, and over 80% efficiency for extended motor lifespan.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: 10042
• Country of Origin: Mexico

Technical Specifications

• Application: Refrigeration
• Input Voltage: 208-230V
• Current: 0.45A
• Certifications: UL
• Enclosure Type: TEAO
• Frequency: 50/60 Hz
• Insulation Class: B
• Length (less shaft): 3-3/8 In.
• Material: Cast Iron
• Rotation: CCWLE
• Motor Type: ECM
• Mounting Type: 2 Boss/OPE 3 Holes
• Speed: 1550 RPM
• Shaft Dimensions (Diameter x Length): 0.250 In. Dia x Lgth
• Power: 35-50W
• Product Type: Electric Motor
